Einleitung
Sometimes you just want a some new wheels right?! This guide will show you how to replace the wheels that drive your Roomba to become the cleaning machine that it is.
Werkzeuge
-
-

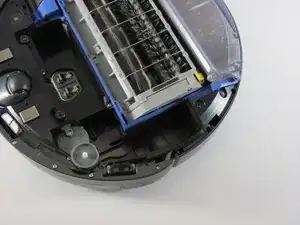

Flip the device over onto its back.
-
Find the side brush, and unscrew the single screw that connects to brush motor by using the Phillips head #2 screwdriver.
-
-
-

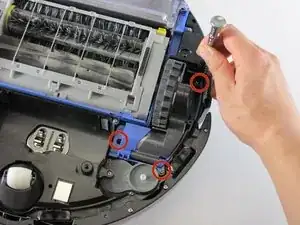

Using a Phillips #1 screwdriver, remove the four screws on the back panel.
-
Once the screws are loose gently pry the back plate away from the body by using the spudger tool.
-
-
-
Grab the two pieces of green tape with your thumb and index finger
-
Pull up on the battery in an upwards direction to remove it
-
-
-
These are the contact points on the Roomba for the battery
-
These are the contact points on the battery
-
-
-

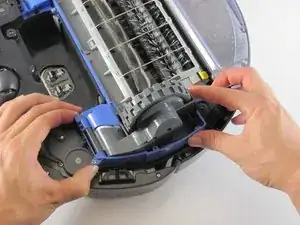

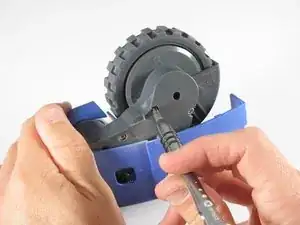

Unscrew the actual wheel from the blue plastic holder
-

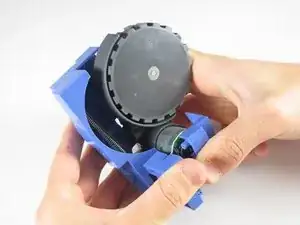

Pull apart the blue holder to completely remove the wheel
-
-
-

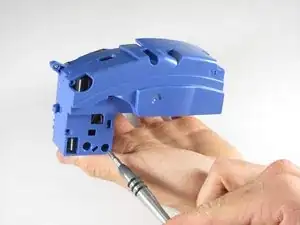

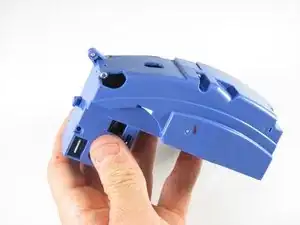

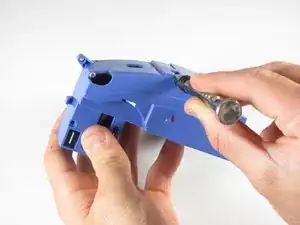

To go further into the holder to access the programming chips you can unscrew these compartments
-
To reassemble your device, follow these instructions in reverse order.
