Einleitung
The front caster wheel is the wheel that leads the Roomba over all of the dirt and debris so that the vacuum can pick it up. As a result, the caster wheel easily becomes dirty. The purpose of this guide is to show you how to take out the caster wheel so that it can be cleaned and restored to a satisfactory condition.
Werkzeuge
-
-

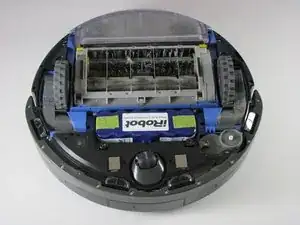

Flip the device over onto its back.
-

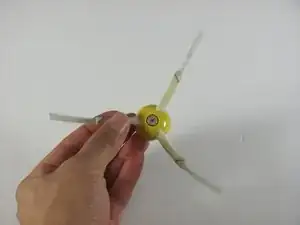

Find the side brush, and unscrew the single screw that connects to brush motor by using the Phillips head #2 screwdriver.
-
-
-

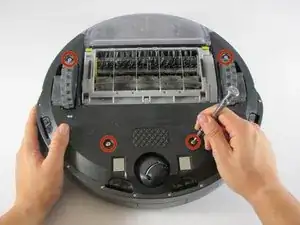

Using a Phillips #1 screwdriver, remove the four screws on the back panel.
-
Once the screws are loose gently pry the back plate away from the body by using the spudger tool.
-
-
-
Turn the Roomba upside down, so that the vacuum and wheels are facing the ceiling.
-

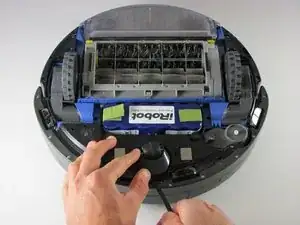

Hold the caster wheel housing steady and insert the plastic spudger under the wheel housing.
-

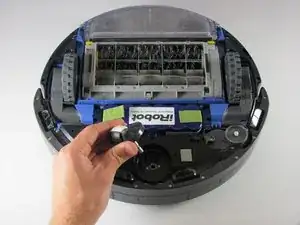

Apply some force to pry the caster wheel straight up out of the device, and remove the caster wheel housing from the Roomba.
-
-
-

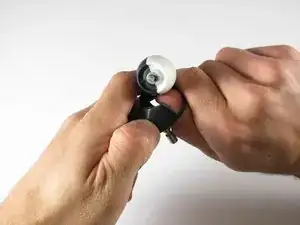

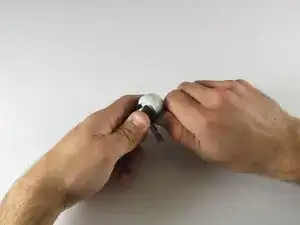

Firmly hold the caster wheel housing, and remove the caster wheel from its setting.
-
Clean the caster wheel with soap and water.
-
Once the caster wheel is clean and thoroughly dried, repeat the process in reverse order to reinstall the caster wheel back to the Roomba.
-
To reassemble the robot, follow these instructions in reverse order.
