Einleitung
After extensive use, you may need to replace the battery for your iRobot Roomba 690 due to it failing to charge or because of frequent overheating. The following guide explains how this can be accomplished. Additionally, this process is sometimes necessary when performing other maintenance, as it is dangerous to work on other electrical components with a live battery is connected to the device. Removing a battery that is functional and undamaged should not present any major hazards.
Werkzeuge
-
-
Loosen the captive screw in the spinning brush using a Phillips #0 screwdriver.
-

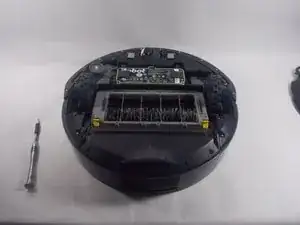

Remove the spinning brush from the vacuum.
-
-
-

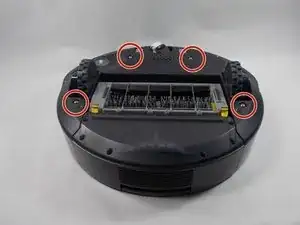

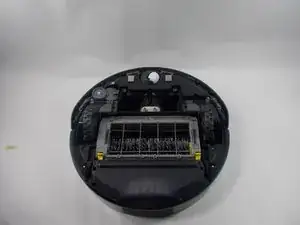

Remove the four 6.4 mm screws from the bottom of the Roomba using a Phillips #0 screwdriver.
-
-
-

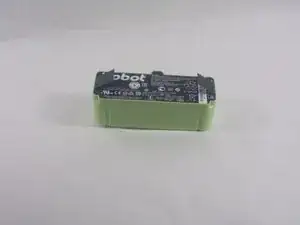

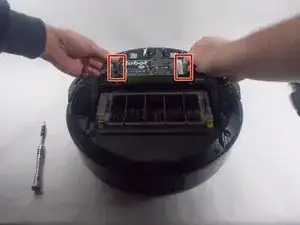

Lift out the battery by pulling up on the two flexible tabs that are attached to the left and right sides.
-
To reassemble your device, follow these instructions in reverse order.
