iRobot Roomba 980 Brush Module Replacement

Geschrieben von: Ernesto Rodriguez Romero
  • Kommentare: 0
iRobot Roomba 980 Brush Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

The brush module on the roomba does the majority of the cleaning and it can easily get tangled in various household fibers such as hair causing it to stop turning. When this happens it is necessary to remove the module and clean it as outlined in the troubleshooting section.

  1. MLjXcZV5GTHPlHkL

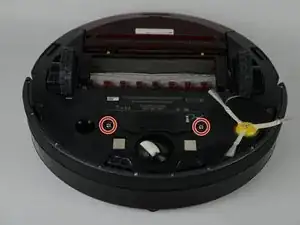

    • Flip over the device and remove the two 11.5 mm screws using the Phillips #1 screwdriver.

  2. xLjHnRGKyWWptLnf
    xLjHnRGKyWWptLnf
    nKm1ODybjrD6VbBy

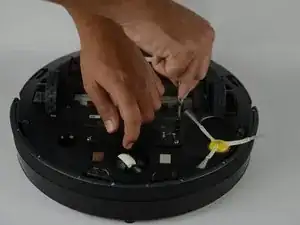

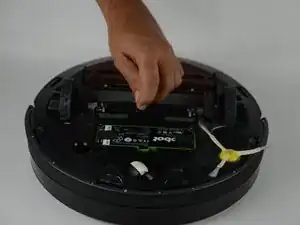

    • Unscrew the back plate using a Phillips #1 screwdriver.

    • Carefully lift the panel up once the screws are removed.

  3. iVoK1ECmUNodM5Qu
    iVoK1ECmUNodM5Qu
    YgoDBhTCUY4SnJbN

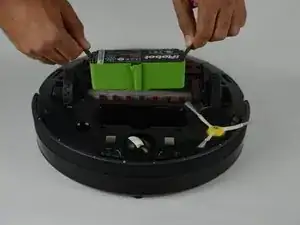

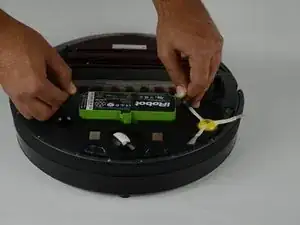

    • With both hands, grab the two black tabs on each end of the battery.

    • Pull the tabs upwards to remove the battery.

  4. ConXxITSFwaapbmf
    ConXxITSFwaapbmf
    LIKPxYAh4htNWGjm
    xhnivjtYQgOSMwbA

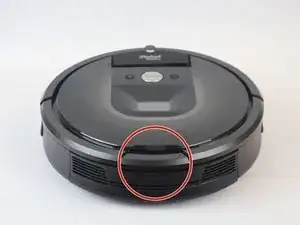

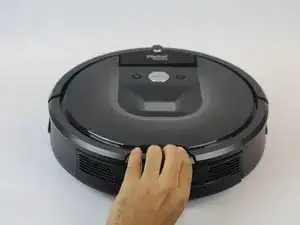

    • Press down on the button on the rear of the device.

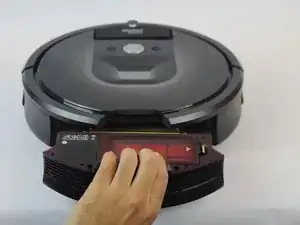

    • Pull bin towards you to remove it.

  5. JOgBeXAXatuoRsGF
    JOgBeXAXatuoRsGF
    vX2bRsgmd2Ljjasb

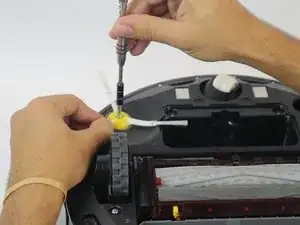

    • Loosen the screw holding the side brush in place.

    • The screw is attached to the side brush and does not come out completely.

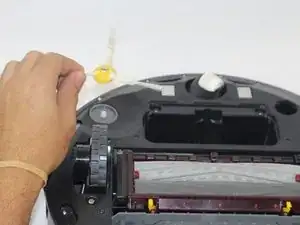

    • Lift the side brush.

  6. koBVBMB5LD6AOaLC
    koBVBMB5LD6AOaLC
    dXdVqBFWTpjmd3TS

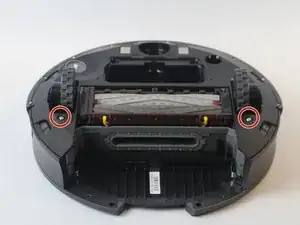

    • Remove the (2) 11.5mm Phillips #1 screws holding down the bottom plate.

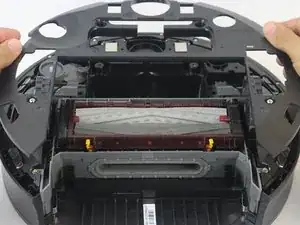

    • Carefully lift the bottom plate.

  7. 6Is2CHHiGyUV5lLG

    • Remove the (4) 15.8mm Phillips #1 gold screws around the brush module.

  8. iGNyQuDktH5BEDQw
    iGNyQuDktH5BEDQw
    aWZD6K1RFIuZrtw6

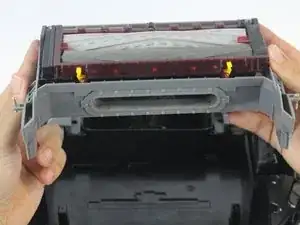

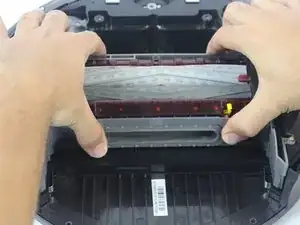

    • Lift the brush module carefully using both hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
