iRobot Roomba 980 Motherboard Replacement

Geschrieben von: Ernesto Rodriguez Romero
  • Kommentare: 8
iRobot Roomba 980 Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

If all efforts to repair the Roomba® 980 vacuum fail, replacing its motherboard is usually the last step before a full resolution is achieved. There can be several reasons why this replacement is necessary, from water to physical damage, the process can be a complicated, lengthy installation. Finally, proceed with caution when handling the circuit board’s connectors and pins as damaging this can result in irreparable damage.

  1. MLjXcZV5GTHPlHkL

    • Flip over the device and remove the two 11.5 mm screws using the Phillips #1 screwdriver.

  2. xLjHnRGKyWWptLnf
    xLjHnRGKyWWptLnf
    nKm1ODybjrD6VbBy

    • Unscrew the back plate using a Phillips #1 screwdriver.

    • Carefully lift the panel up once the screws are removed.

  3. iVoK1ECmUNodM5Qu
    iVoK1ECmUNodM5Qu
    YgoDBhTCUY4SnJbN

    • With both hands, grab the two black tabs on each end of the battery.

    • Pull the tabs upwards to remove the battery.

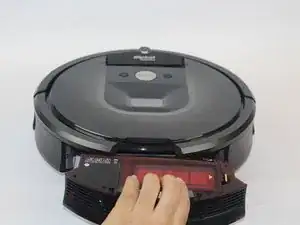

  4. ARIJxSN1v1OuXaIM
    ARIJxSN1v1OuXaIM
    VSVq22dvPONDnwbS

    • Remove the dust bin by pressing down on the rear button on the device.

    • Pull the bin towards you to remove it.

  5. cF1LCbVbM1n3ryZW
    cF1LCbVbM1n3ryZW
    6SKhCevyQVOOHVbG

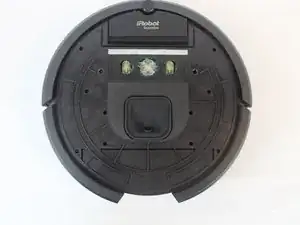

    • Insert the opening tool in the back of the device under the wedge.

    • Slowly pry the plate loose and lift it from the device.

    • The face plate is only designed to be removed back to front.

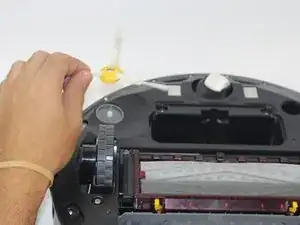

  6. Zqh6QyGFscDisUqB
    Zqh6QyGFscDisUqB
    1l4CvZApHvB6O4dr

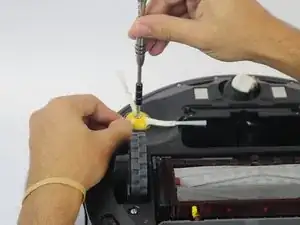

    • Loosen the screw holding the side brush in place, by using a Phillips #1 screwdriver

    • The screw is attached to the side brush and does not come out completely.

    • Lift the side brush.

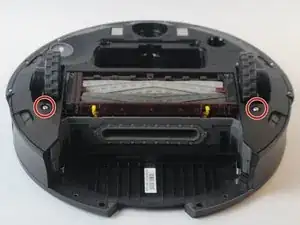

  7. n2HCHoQGdfN52mGd
    n2HCHoQGdfN52mGd
    vnpht3BGETf1WVrq

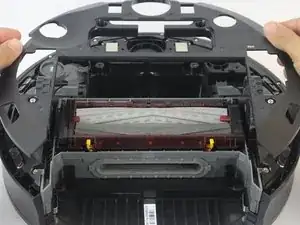

    • Remove the two 11.5mm screws holding down the bottom plate using a Phillips #1 screwdriver

    • Carefully lift the bottom plate.

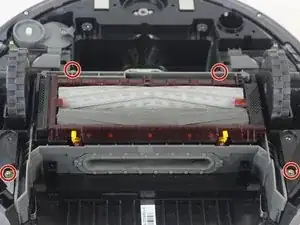

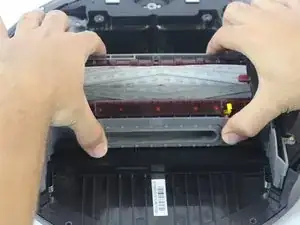

  8. ZBj2hNmpWwdoVRnW
    ZBj2hNmpWwdoVRnW
    Vlg3hWtNESokrL53
    GqMrUHNUTmQIE2ZI

    • Remove the four 15.8mm gold screws around the brush module using the Phillips #1 screwdriver.

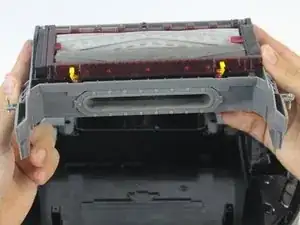

    • Lift the brush module carefully using both hands.

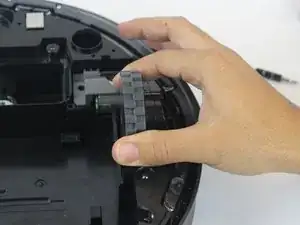

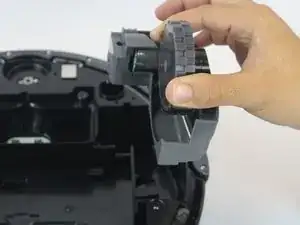

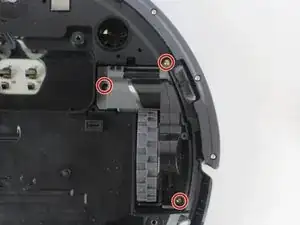

  9. ChBHHMxjcCjCS35G
    ChBHHMxjcCjCS35G
    sHDhQGhyhvBsQkXF
    gFpA2ePLKYbHmjUx

    • Remove the three 15.8mm gold screws with a Phillips #1 screwdriver.

    • Lift the wheel module to remove it from the vacuum.

    • Remove the other wheel by repeating these steps.

  10. uKFoCO6k1Dm1MCeC
    uKFoCO6k1Dm1MCeC
    Y4VGUxANQDCdmP6F

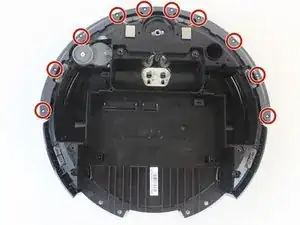

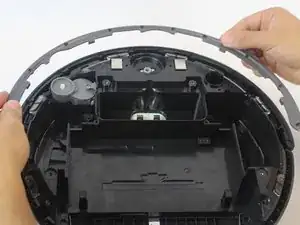

    • Remove the ten 6.1 mm silver screws using a Phillips #1 screwdriver.

    • Lift the bottom guard off the front sensor panel by pulling it upwards.

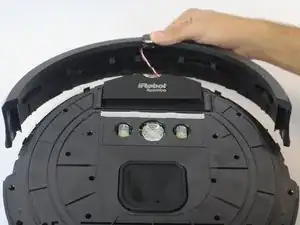

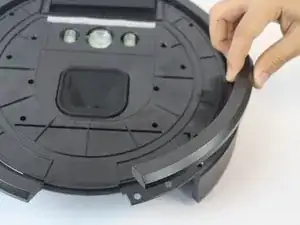

  11. YsbnLLwZmVtDEDaD
    YsbnLLwZmVtDEDaD
    MaPvIlF4mgeCZObB

    • Lift the two corner guards at the rear of the device by lifting and popping them out.

    • Pull the front sensor away slowly from the vacuum.

    • The cable connecting the front sensor to the Roomba is delicate, so proceed with caution.

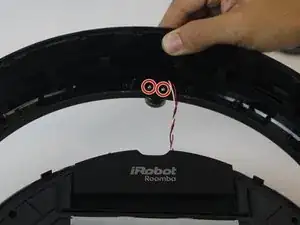

  12. gRxSdDerxQJ1Slxh

    • Flip the sensor over and use a Phillips #1 screwdriver to remove the two 3.8 mm silver screws that hold the sensors to the panel.

    • While the two 3.8mm screws look very similar to the 6.1mm screws, the two sizes are not interchangeable, so make sure not to mix the two sizes up when reassembling the Roomba.

    • Once removed, pull the panel away carefully.

  13. ute3T55FuvJAZMbA
    ute3T55FuvJAZMbA
    jpNRCSNYrE13qWJK

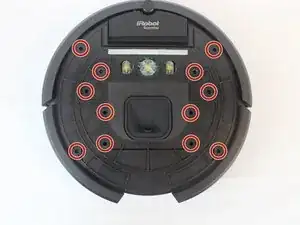

    • Remove the fourteen 6.6 mm black screws holding down the top plate using a Phillips #1 screwdriver.

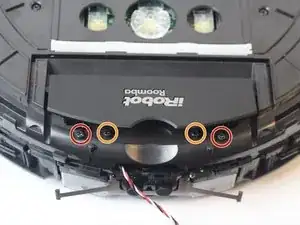

    • Push the lip back towards the logo to remove two 6.6 mm black screws found under it using a Phillips #1 screwdriver.

    In the secon image is better to remove the outer screws at first.

    Alejandro Corredor Parra -

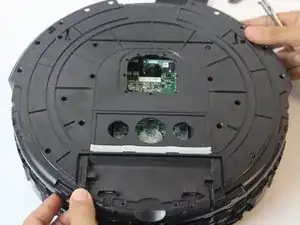

  14. ivWJwEOQTFIRtUsW
    ivWJwEOQTFIRtUsW
    hHYs1ATEGJOwP4yx

    • Lift the top plate slowly, being careful not to damage the vacuum components while exposing the motherboard.

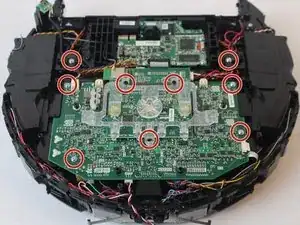

  15. XwDeIXtyxafOPgKJ
    XwDeIXtyxafOPgKJ
    fMPIxinFmuOq3ove

    • Remove the nine 6.4 mm silver screws holding the motherboard to the vacuum body and the clear plastic guard using a Phillips #1 screwdriver.

    • Carefully remove the connector-clips that are attached to the motherboard.

    • Some connectors will be difficult to remove.

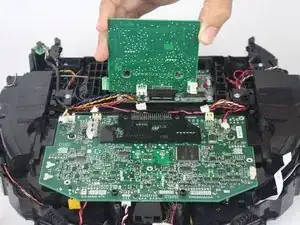

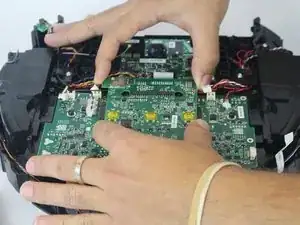

  16. OrUfEHbEFxO1pMqv
    OrUfEHbEFxO1pMqv
    to3OC1I2ciPri3gE
    cjBQCpgDMrx2Ekfv

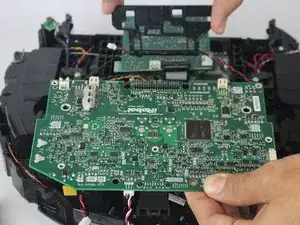

    • Using both hands, lift the motherboard connected to the camera away from the device's main motherboard.

    • Only lift the motherboard upwards to avoid bending the pins and causing further damage to the device's electronics.

    • Remove the black plastic guard that is placed in between the two computer boards

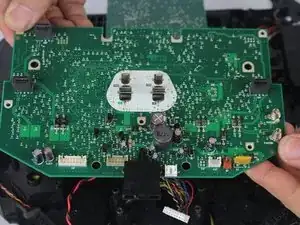

  17. lHnD4ZUuDvdJEsox
    lHnD4ZUuDvdJEsox
    XmkVCPhgGCFegyEU

    • Lift the main motherboard upward and off of the vacuum.

    • The screw inserts are holding it in place so it will have to be lifted evenly.

    • Remove the motherboard from your device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
