iRobot Roomba 980 Rear Wheels

Geschrieben von: Ernesto Rodriguez Romero
  • Kommentare: 0
iRobot Roomba 980 Rear Wheels

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

The rear wheel assembly is what propels the roomba. If they become damaged the roomba will begin to move irregularly or not at all.

  1. MLjXcZV5GTHPlHkL

    • Flip over the device and remove the two 11.5 mm screws using the Phillips #1 screwdriver.

  2. xLjHnRGKyWWptLnf
    xLjHnRGKyWWptLnf
    nKm1ODybjrD6VbBy

    • Unscrew the back plate using a Phillips #1 screwdriver.

    • Carefully lift the panel up once the screws are removed.

  3. iVoK1ECmUNodM5Qu
    iVoK1ECmUNodM5Qu
    YgoDBhTCUY4SnJbN

    • With both hands, grab the two black tabs on each end of the battery.

    • Pull the tabs upwards to remove the battery.

  4. ph4umrFmcyr65ZIJ
    ph4umrFmcyr65ZIJ
    RWqZ2UMjPIANn6Iq

    • Loosen the screw on the side brush.

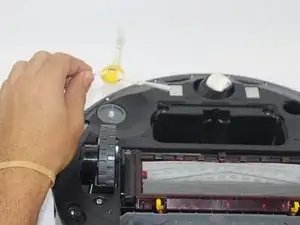

    • Lift the side brush from the device.

  5. lMwDIaqk5VSNIt4B
    lMwDIaqk5VSNIt4B
    KPH3bp4yVP1XLMW5

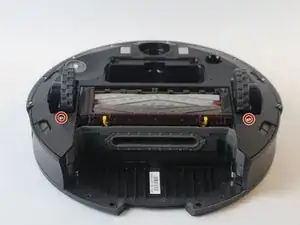

    • Unscrew the (2) 11.5mm screws using the Phillips #1 screwdriver.

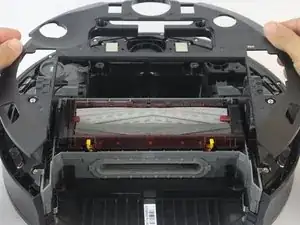

    • Carefully remove the plate by lifting it off of the device.

  6. GmNNyoNO4B62mCYA
    GmNNyoNO4B62mCYA
    aMXZuWEAARttScvF

    • Removing the brush module may ease the removal of the wheel module

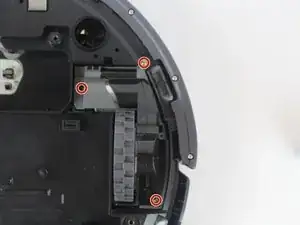

    • Locate the (3) 15.8mm gold Phillips #1 screws and unscrew them.

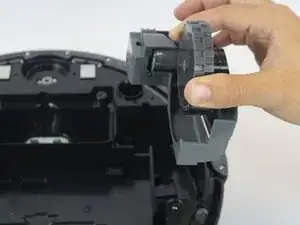

    • Lift the wheel module removing it from the vacuum.

    • Remove the other wheel by repeating these steps.

Abschluss

To reassemble your device, follow these instructions in reverse order.
