iRobot Roomba S9 Plus Corner Brush Replacement

Geschrieben von: Lance Brown
  • Kommentare: 1
iRobot Roomba S9 Plus Corner Brush Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 - 5 Minuten

Einleitung

Use this guide to replace the Corner Brush Module on your iRobot Roomba S9+ (Model number: s955020). Be sure to be careful when you’re disconnecting wires. Only pull on solid plastic pieces and not wires. For more information, check out our troubleshooting page.

  1. GKrCrmNAoPjhSj3c
    GKrCrmNAoPjhSj3c
    IVGBauJeheGaSVW1

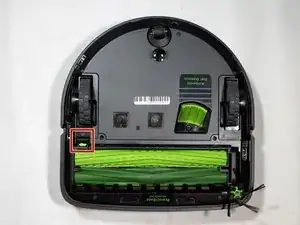

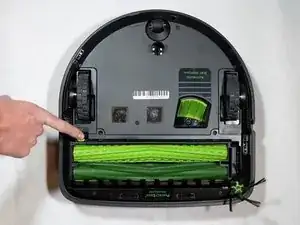

    • Place your Roomba upside down with the brush module facing you.

    • Push the grey tab by the top left corner of the brushes to release the retaining arm.

  2. AfiFkARudhiWmXdd

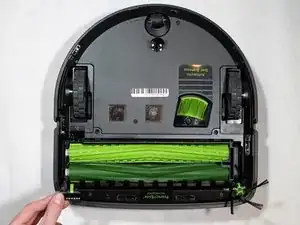

    • Lift the retaining arm away from the brushes.

  3. 3RiexCkFlvCoTmVp

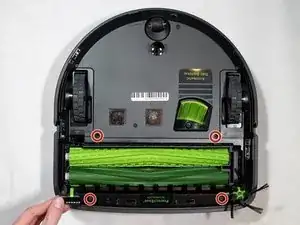

    • Unscrew the four 11mm Phillips #2 screws holding the vacuum brushes in place.

  4. sSYi4KEERQeyjglX
    sSYi4KEERQeyjglX
    FZF1FnfI6ABydTV1

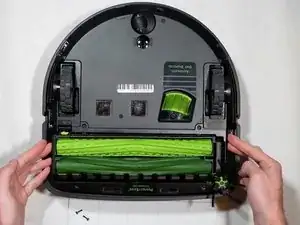

    • Remove the brush module by pulling up from the sides.

  5. DXwy5w1yZGNmWAj1
    DXwy5w1yZGNmWAj1
    iqvCrPEG4p4AMopr
    GTJKcFYIXdQCgUvf

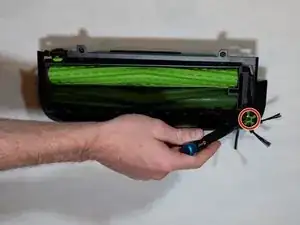

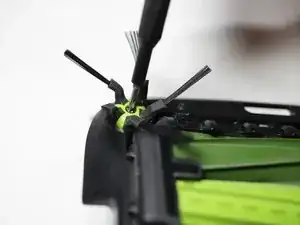

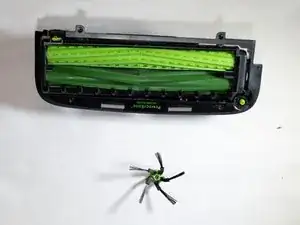

    • Unscrew the 7mm Phillips #2 screw holding the corner brush head in place.

  6. 1ftCo4L3pPNlWcm3

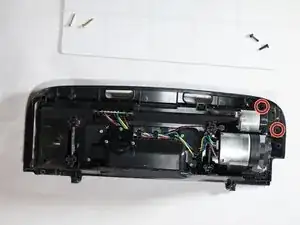

    • Flip over the brush module to access the corner brush motor.

    • Unscrew the 15mm Phillips #0 screws holding the motor in place.

  7. CVJUeYbIZdThWBc2
    CVJUeYbIZdThWBc2
    jFjIE1MEhYMVkLgE
    4wcwttZ64HB51myR

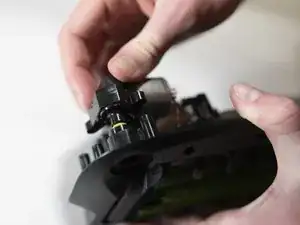

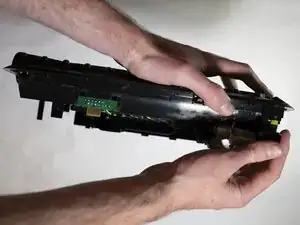

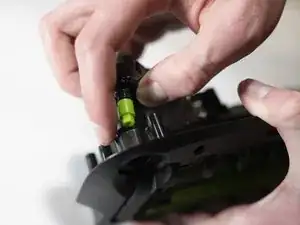

    • Carefully take the motor axle from its housing.

  8. 2uSkBKTuCQOgotat
    2uSkBKTuCQOgotat
    QAXKO3qAFFBhEcJc

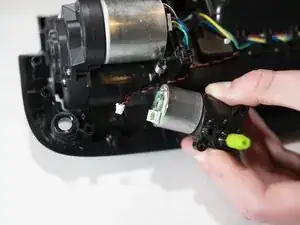

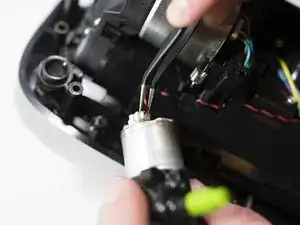

    • Disconnect the wire connecting the motor using tweezers to pull out the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
