iRobot Roomba S9 Plus Right Wheel Module Replacement

Geschrieben von: Patrick Bartlett
  • Kommentare: 0
iRobot Roomba S9 Plus Right Wheel Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to replace the right wheel module on your iRobot Roomba S9 Plus. Know that the left and right wheel replacement processes are unique.

  1. tIi3rdUnocDaHUgX
    tIi3rdUnocDaHUgX
    i1qnamELdLpGsZHA
    DfCflYGRrtCZlqCT

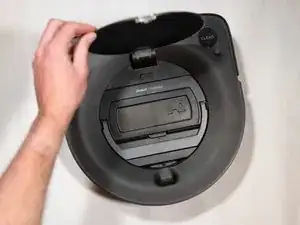

    • Press the plastic hook under the lid.

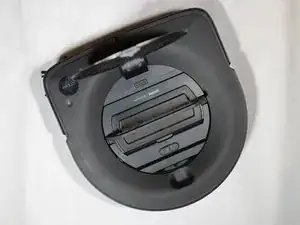

    • Lift the handle and remove the bin.

  2. eLtJGUOCWTGUsDJf

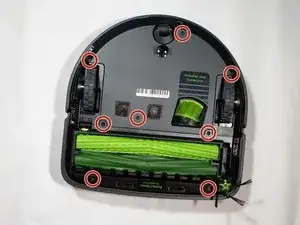

    • Flip over the Roomba.

    • Loosen, but do not remove, the eight screws on the bottom using a Phillips #2 screwdriver.

  3. ItyJUE2BmmVMWXRP
    ItyJUE2BmmVMWXRP
    kJ1tUtBcIOQsQxgC
    nUf1uqbIkS6L2CWi

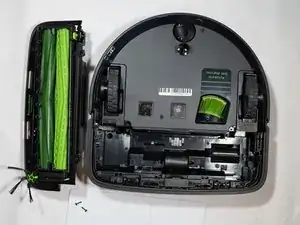

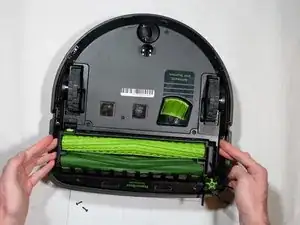

    • Lift and remove the brush module.

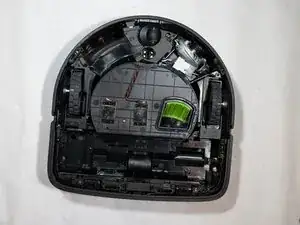

    • Remove the bottom cover.

  4. xnP5tlCteGcPCMHV
    xnP5tlCteGcPCMHV
    HTcOyAUy1gX4gk6t

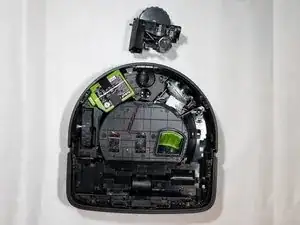

    • Using your spudger, press the latch on the inside of the wheel module.

    • Remove the wheel module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
