ilo 1Gb Mp3 Player SD Card Replacement

Geschrieben von: tjkurt01
  • Kommentare: 0
ilo 1Gb Mp3 Player SD Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

  1. O3Z3TrvYDISKlgyR
    O3Z3TrvYDISKlgyR
    M2RqlJZWPYVJeBfb

    • Remove the belt clip by pulling the clip casing up and away from the device starting at the top over the slightly protruding headphones jack.

  2. fXBCqkdFC5csW65Y
    fXBCqkdFC5csW65Y
    IyNCGvHGlOwEN4KM
    UDMsgJfQQZoBcXYy

    • Remove the battery cover by gently pushing inward on the arrow on the cover.

    • While maintaining pressure push the cover upward.

  3. UyJ3PGMZEZChCXwy
    UyJ3PGMZEZChCXwy
    aAWHvXtOf6cyAAID

    • Remove the Battery from the socket

    • When installing the battery take note of the signs displayed in the socket to determine which direction the negative and positive ends should be.

  4. YSVtNlHDhs3PWExf
    YSVtNlHDhs3PWExf
    UHNUMhryhPkPSnKP

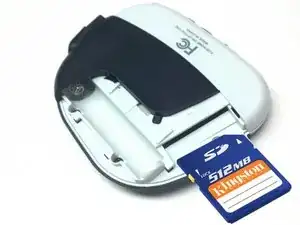

    • The SD Card slot is located under the battery case indicated here.

    • The SD Card Slides into the slot as depicted in the photo and on the indicator above the slot.

    • The ilo 1Gb Mp3 Player was only designed to accept SD Cards of 512mb or lower.

Abschluss

To reassemble your device, follow these instructions in reverse order.
