nikon s3700 LCD Display Screen Replacement

Geschrieben von: Sales Cameraparts4you
  • Kommentare: 0
nikon s3700 LCD Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

20 Minuten

Einleitung

Step by step guide for replacing your damaged LCD Display.

  1. JIKN33pIcfwGZXJA
    JIKN33pIcfwGZXJA
    kSh2AtB2ndwHPVB2
    pOm5ClAxIWwPGWEG

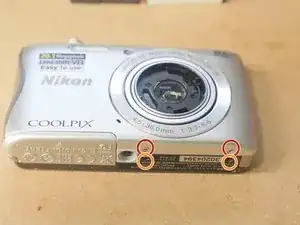

    • group screws according to color code.

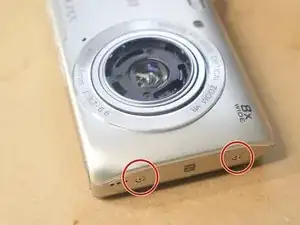

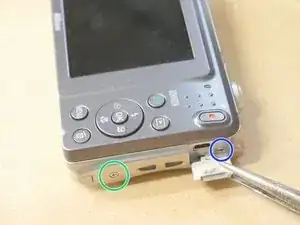

    • Remove exterior screws

  2. nXEnffcNXbgJoKWh
    nXEnffcNXbgJoKWh
    SfPPXpU4qAWBSa3M
    etqyIUUNrmi2AnbE

    • Remove Rear casing.

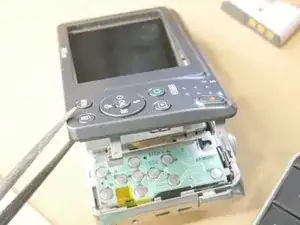

    • With a thin blade, gently lift the top tight hand side of the buttons board releasing a peg from a hole on the midframe below. Whilst doing so, gently push on the top left hand side in order to release the buttons board from a clip. At the same time, the bottom left hand corner wil be released from another clip.

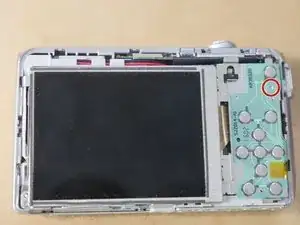

    • Flip over rear buttons board to expose LCD ZIF clamp.

    • Flip open the clamp of the ZIF connector and slide the ribbon cable out. (The connector may have a piece of sticky tape over it. Removing this may well open the connector clamping bar.)

    • The ZIF clamp is very fragile so please use caution when releasing the ZIF clamp. It breaks easily.

    • Remove the LCD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
