nikon s3700 Lens Replacement

Geschrieben von: Sales Cameraparts4you
  • Kommentare: 0
nikon s3700 Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Step by step instructions on replacing your Nikon S3700 Lens

  1. JIKN33pIcfwGZXJA
    JIKN33pIcfwGZXJA
    kSh2AtB2ndwHPVB2
    pOm5ClAxIWwPGWEG

    • group screws according to color code.

    • Remove exterior screws

  2. nXEnffcNXbgJoKWh
    nXEnffcNXbgJoKWh
    SfPPXpU4qAWBSa3M
    etqyIUUNrmi2AnbE

    • Remove Rear casing.

    • With a thin blade, gently lift the top tight hand side of the buttons board releasing a peg from a hole on the midframe below. Whilst doing so, gently push on the top left hand side in order to release the buttons board from a clip. At the same time, the bottom left hand corner wil be released from another clip.

    • Flip over rear buttons board to expose LCD ZIF clamp.

    • Flip open the clamp of the ZIF connector and slide the ribbon cable out. (The connector may have a piece of sticky tape over it. Removing this may well open the connector clamping bar.)

    • The ZIF clamp is very fragile so please use caution when releasing the ZIF clamp. It breaks easily.

    • Remove the LCD.

  3. tEuLkaQb4WNeq1hm
    tEuLkaQb4WNeq1hm
    KsBBUHY6TnUaZTYP
    fxIeoSUypIlasZsZ

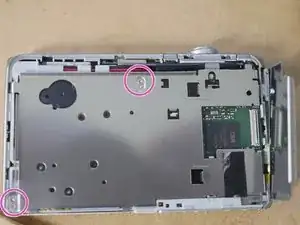

    • Remove screws

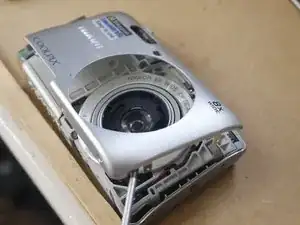

    • Remove front housing case

    • Remove top cabinet part

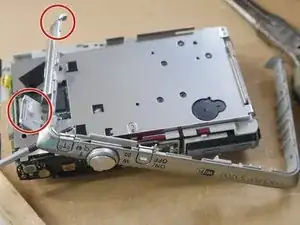

    • The two areas highlighted in red have loose parts. Please keep your eyes on these parts because they can get lost easily. Once you remove the top cabinet they will most likely fall off. In particular, there is a tiny spring behind the battery retainer which is very easy to loose.

  4. xniY6dgOiphZHO5D
    xniY6dgOiphZHO5D
    kPUmFksAGeTM1dfD

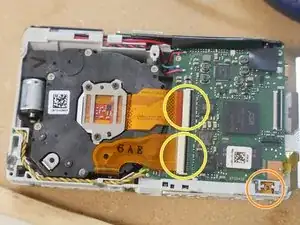

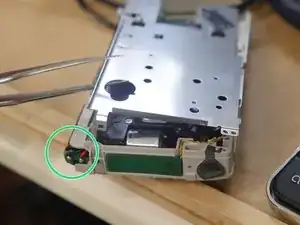

    • Discharge the capacitor to avoid getting shocked.

    • Dislodge clamps on all 4 sides and remove rear metal plate.

    • Release lens & CCD flex from ZIF sockets by gently lifting the black locking bar at the rear of the sockets. These may be a little stiff so care is needed.

    • Remove lens from housing and replace. Reverse steps for re-assembly

    • Area highlighted in orange can be lost easily. Please keep your eyes on this part. If unit is tilted part will fall out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
