Einleitung

  1. EbaTBQtaIeWOwpdR
    EbaTBQtaIeWOwpdR
    hLg3tYnwVcTO4sSG

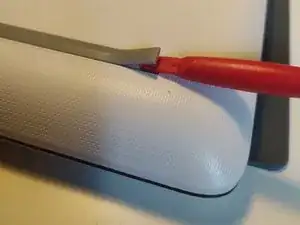

    • remove the feet with a spudger

  2. nC2KXXjDhsfunSKI
    nC2KXXjDhsfunSKI
    dMdB2IodjA52KH6T

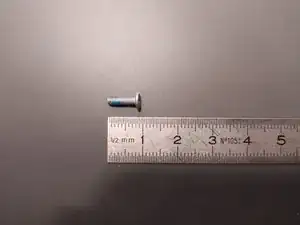

    • Remove the 11 screw with a PH0 screwdriver.

    • The screws are identical

  3. yXsI2OGTfbyLMUuR
    yXsI2OGTfbyLMUuR
    otgBrjCmMCfuWCtc

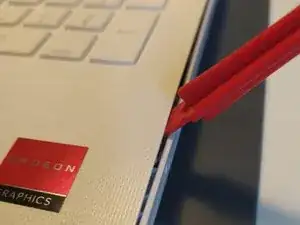

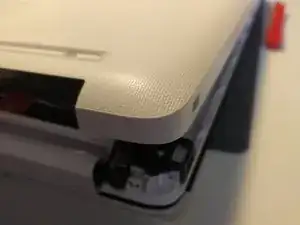

    • Insert a spudger between the bottom cover and the keyboard module, then go around the whole cover to uncip everything.

    • Remove the bottom cover from the computer.

  4. s2bTOnY2gW1ZSgHh

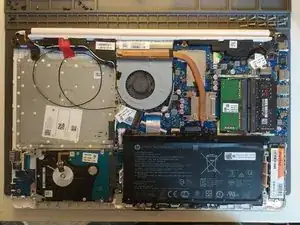

    • You now have acces to the inside of the machine.

Abschluss

to reassemble the computer, clip back the cover to the computer then screw it back, and finally put the bottom stickers/feet back on (the thicker one goes on the screen side)
