How easy to replace the HP PAVILION DM4-3050US Laptop screen

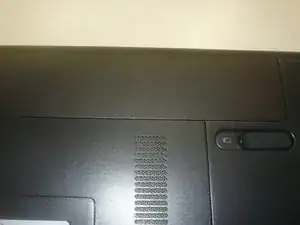

  1. 4kGo4MxvUrG42saA
    • Turn off computer and remove the battery in the back side

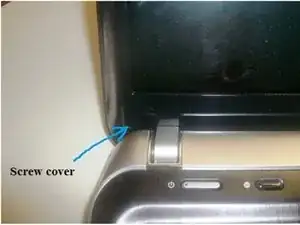

  2. KlQQZt5i1GPHHdIy
    • Remove screw covers in both sides with the knife

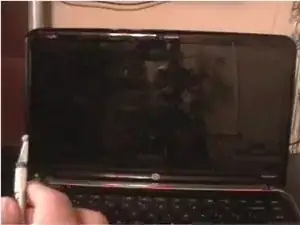

  3. 4qFlLnNEvyabNJlG
    • Screw cover removed

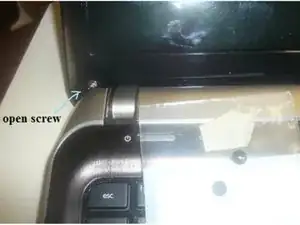

  4. LeouFwYuaWOICBJk
    • Open screws for both sides

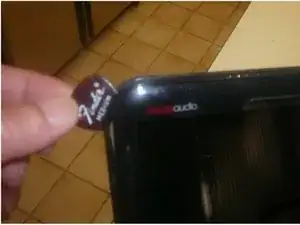

  5. gnpHngO6GoBCxFWE
    • Use guitar pick to unclip the screen bezel

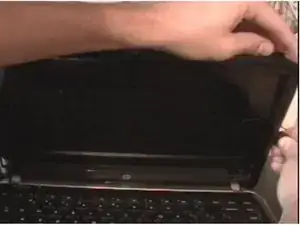

  6. mYrkuZloUOwAALF1
    • Use guitar pick to unclip the screen bezel

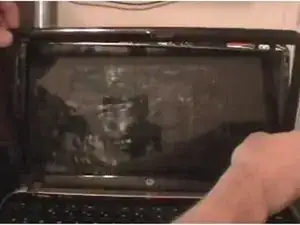

  7. BMDLJj1MpqIwGC1f
    • Remove the bezel

  8. eiK2hvyD3QiU4We6
    • Remove 4 screws of screen holder

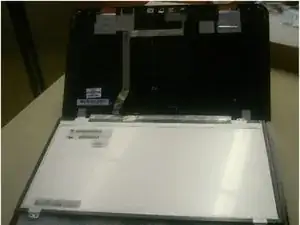

  9. xiJdEyS6dKyM2nfw
    • Remove screen from back panel and lay it on the keyboard

  10. s1Tc4kav2eOHY33r
    • Use the tweezer to remove the tape and then disconnect the cable

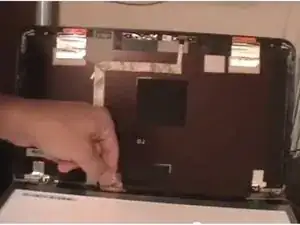

  11. qSoREQbFEHyq4CRh
    • Place the new screen on the keyboard and connect cable

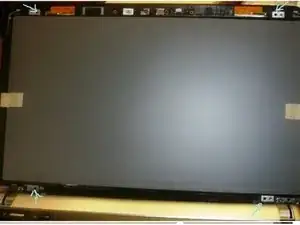

  12. EwRO4NMSCbAkEqXK
    • Place the screen into the back cover and install 4 screws. Install the bezel, battery, and then turn on computer ENJOY WITH YOUR NEW SCREEN. Go to website link at below to order the new screen http://www.laptopscreen.com/English/mode...

    Thank you nro

    Linkesh Warn -

Abschluss

To reassemble your device, follow these instructions in reverse order.
