Einleitung

  1. Yf33oPHcEKdyUU1L

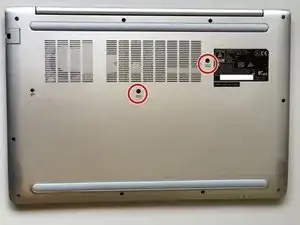

    • Remove the two keyboard retaining screws.

  2. 4jDkgkumZFnyReMR
    4jDkgkumZFnyReMR
    qZ6oKUeFIPxAFh1K
    M3TBgwZbkWUfKrTT

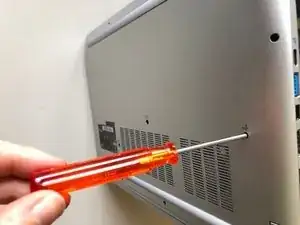

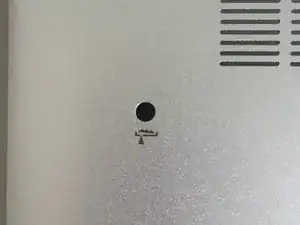

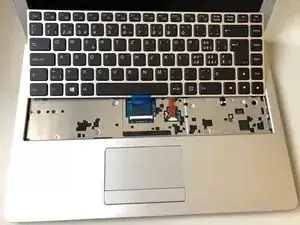

    • Insert a small screwdriver into the holes the screws were removed from in the previous step to unclip the keyboard.

  3. PkYClrRpydHShsjH
    PkYClrRpydHShsjH
    LYpnQpNX54uptACE
    2CQFeG1K6SdcFip5

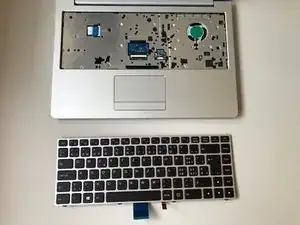

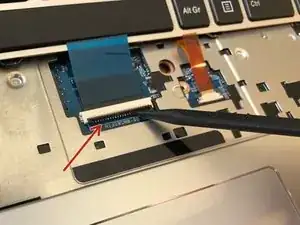

    • Using a plastic spudger, flip up the retaining latch on the ZIF connector securing the blue ribbon cable, then slide the cable straight out from the connector.

    • To release the orange flex cable, use the tip of a spudger to slide the latches on either side in the direction indicated by the arrows, then pull the cable straight out from the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
