why! N131WU Motherboard Replacement

Remove the case screws (red) and the keyboard screws (green).

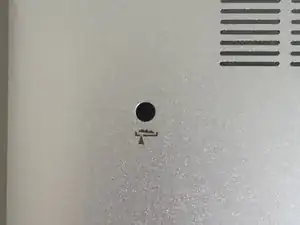

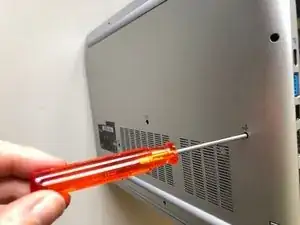

Using the hole provided under the case (see picture), push the keyboard out using a thin screwdriver or some other solid object.

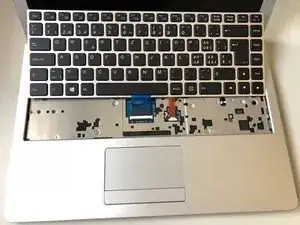

Hold onto the keyboard as you push the keyboard so as not to damage the two cables still attached.

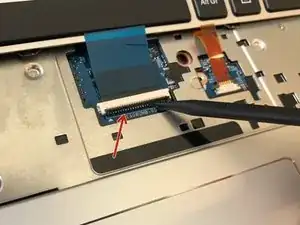

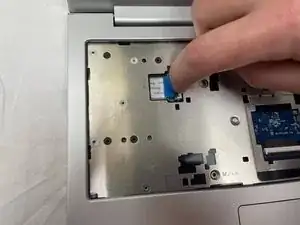

(Blue Cable) Push up on the thin black portion on the connector and gently pull out the blue ribbon cable until it comes out.

(Orange Cable) Remove the orange cable by sliding the gray part of the connector towards the screen, then gently pull on the ribbon cable.

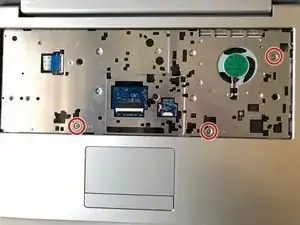

Unscrew the three screws that were under the keyboard. Be sure to hold onto these.

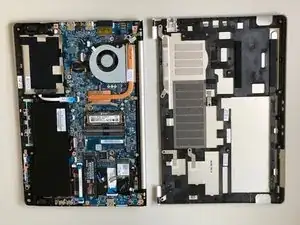

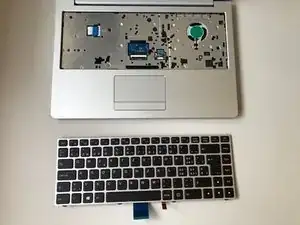

After these are removed, you can now remove the lower part of the case from the rest of the computer.

Tutorial for assessing the principal components

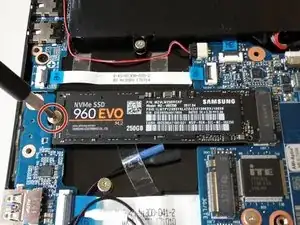

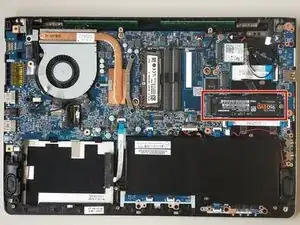

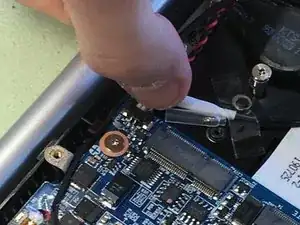

Remove the screw holding in the ssd.

Carefully remove the SSD from the connector.

See this guide on how to access the main components.

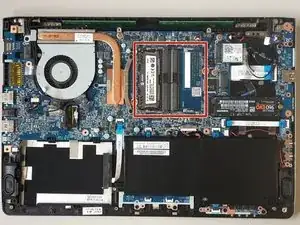

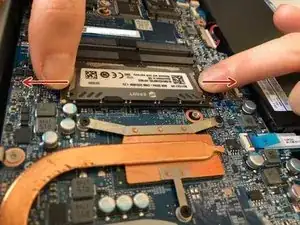

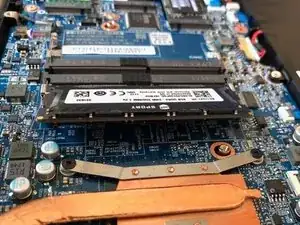

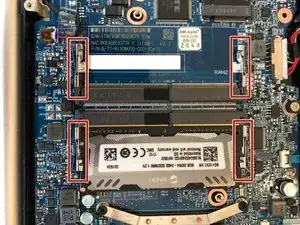

Gently pull outwards on the clips to free the RAM stick.

Remove the RAM Stick from its slot.

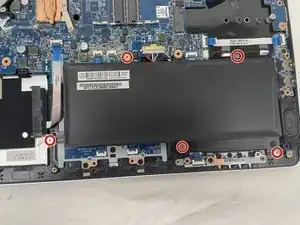

Remove the five Phillips screws securing the battery.

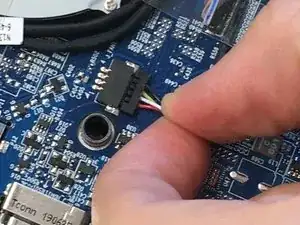

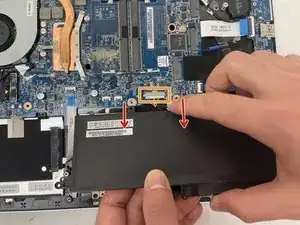

Unplug the power connector and lift the battery out in the direction of the arrows to remove it.

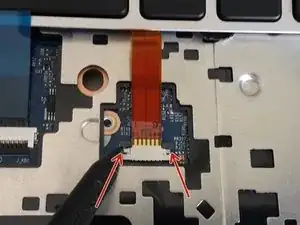

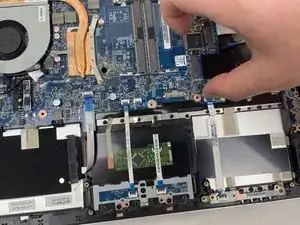

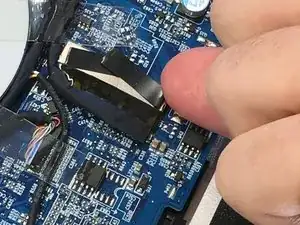

Lift the retaining latch and unplug the ZIF cable found under the keyboard.

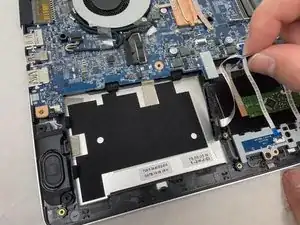

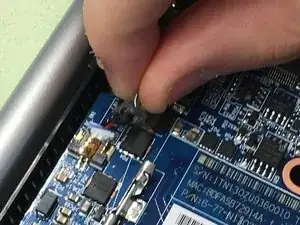

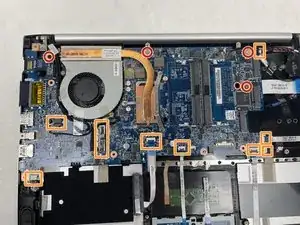

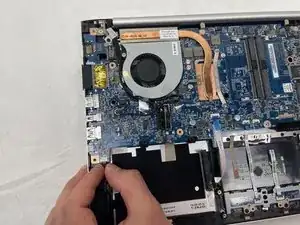

Disconnect the nine marked cables as detailed in the following steps.

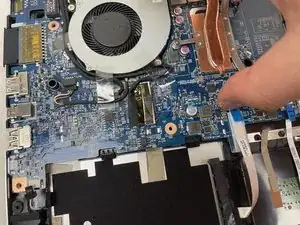

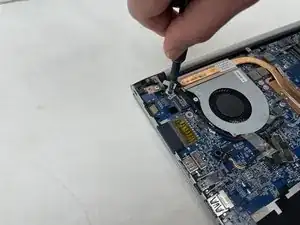

Remove the four screws securing the motherboard to the case.

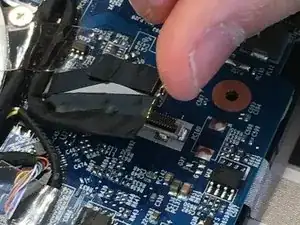

Don't forget to remove these cables.

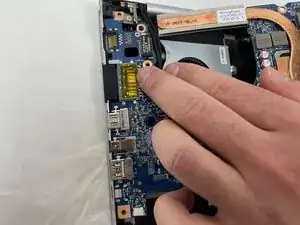

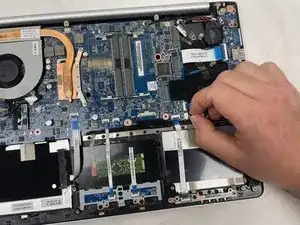

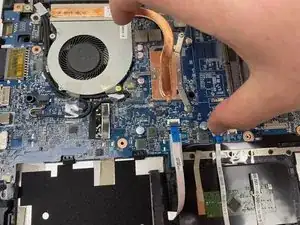

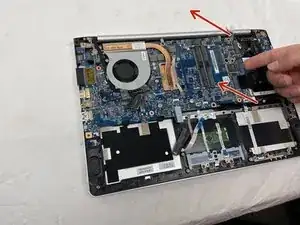

Once the screws have been removed, carefully lift the motherboard from the end indicated by the arrows.

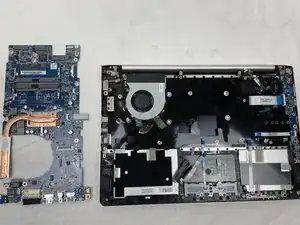

The motherboard has been successfully removed.
