Einleitung
Fan disassembly for cleaning or replacement.
Werkzeuge
Ersatzteile
-
-
Slide the latch on the right to the unlocked position.
-
Slide the latch on the left to the unlocked position.
-
Remove the battery pack from the slot.
-
-
-
With your #0 Philips screwdriver remove the 2 screws from the bottom panel.
-
Now you can remove the bottom cover.
-
-
-

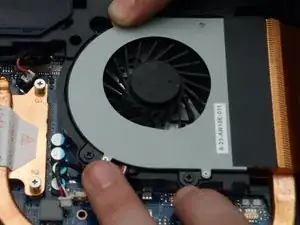

Start by locating the fan.
-

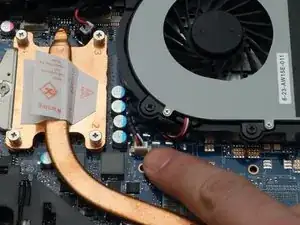

Unplug the power cable from the motherboard.
-

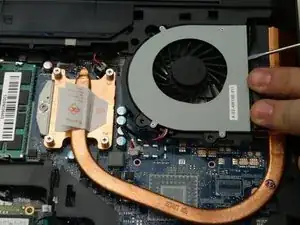

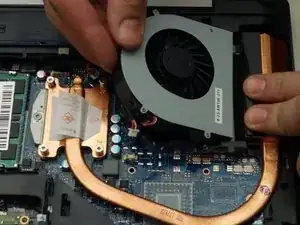

Remove the three screws that secure the fan.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
