why! W650SZ LCD Screen Replacement

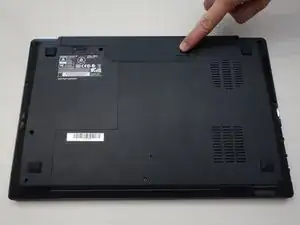

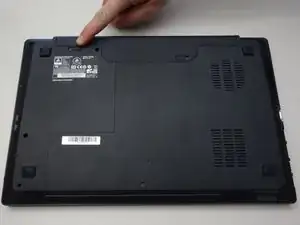

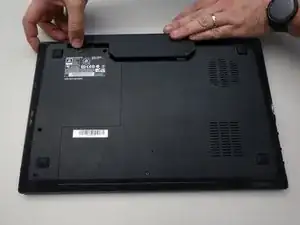

Slide the latch on the right to the unlocked position.

Slide the latch on the left to the unlocked position.

Remove the battery pack from the slot.

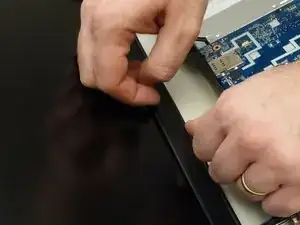

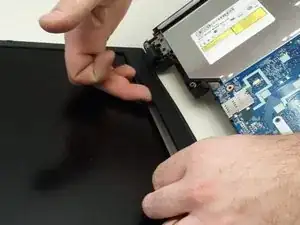

Gently insert your fingernail between the display bezel and the LCD.

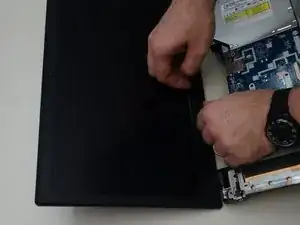

Working your way around the frame, unclip the mounting points of the frame surrounding the LCD screen.

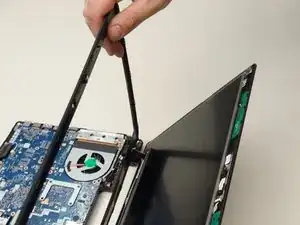

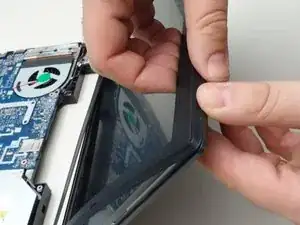

Remove the bezel surrounding the LCD.

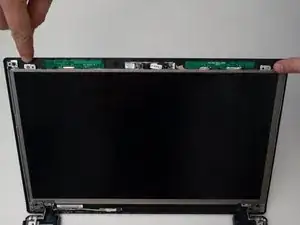

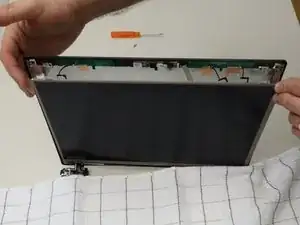

Remove the two upper mounting screws securing the LCD to the lid.

Remove the two lower mounting screws.

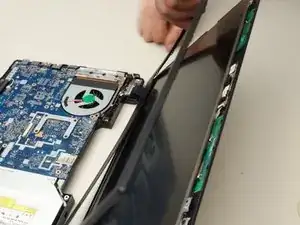

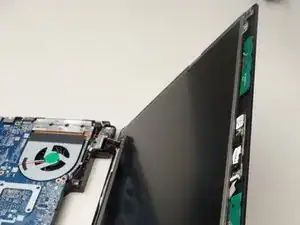

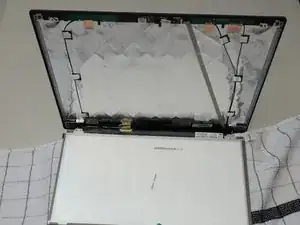

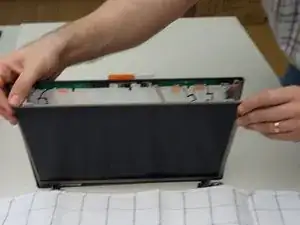

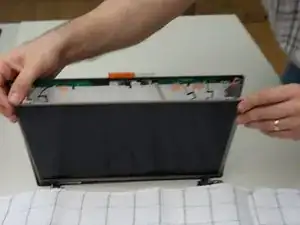

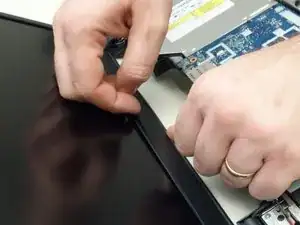

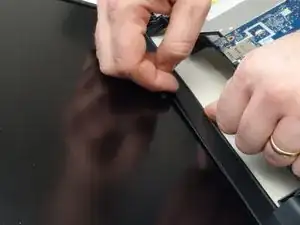

Cover the keyboard with a cloth, then carefully lower the LCD screen onto the keyboard.

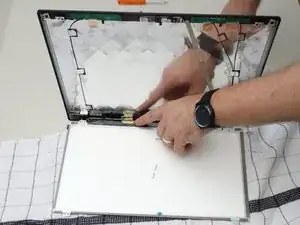

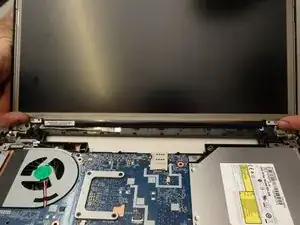

Note the location of the LCD screen connector.

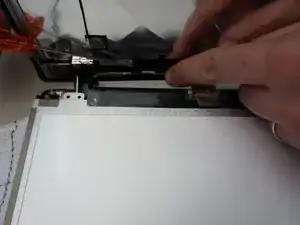

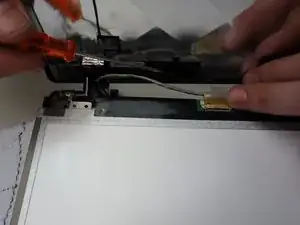

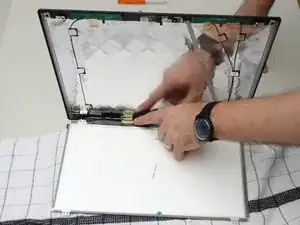

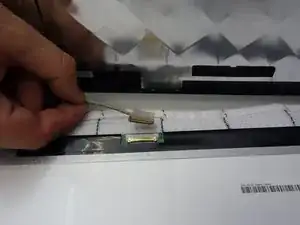

Using the plastic tab, peel back the tape securing the LCD cable the panel connector.

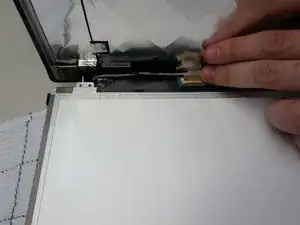

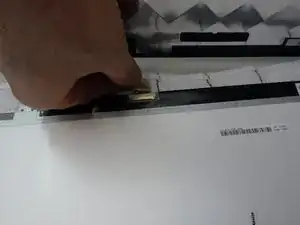

Unplug the connector.

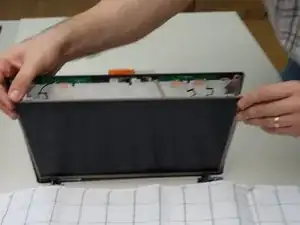

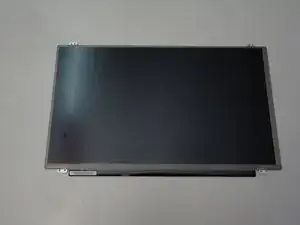

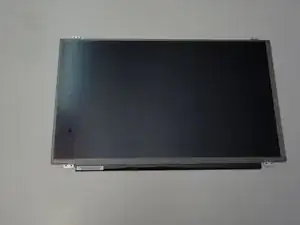

The LCD screen can now be removed.
