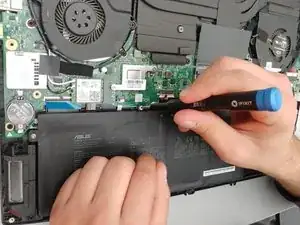

Battery
Werkzeuge

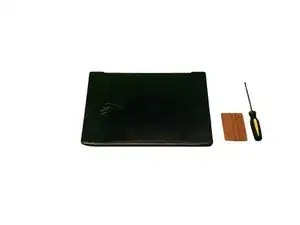

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If your having problems with your ASUS ROG Srix GL503VD, take a look at our troubleshooting page
Identification and History
The Asus ROG Strix GL503VD-DB71 can be identified quickly be referencing the model name and number. This can be found on the under side of the laptop. There you will be able to find the model name and number.
The ASUS ROG Strix GL503VD is a very modern good looking laptop that is also very durable and strong. The laptops main purpose is to be used as a gaming laptop, although ut still can do everything all other general laptops can. The design of the laptop encompasses a nice black metal outer casing used to help protect the laptop from drops and red accents for appearance. This laptop is built with a 7th-generation Intel Core i7 Quad-Core processor. This allows the user to be able to do many things at once, like game, stream videos, and surf the internet all at the same time.
The Strix GL503 is a high performance gaming laptop made for flawless gaming experience. The laptop came out in 2017 and remains as a high selling gaming laptop. The laptop is equipped with parts that compare to that of a desktop while being mobile. ASUS has always been a leader in the computer engineering world and to this day continues to deliver new and innovative laptops to its consumers.
Specifications
Processor
Intel Core i7-7700HQ (Intel Core i7)
Graphics adapter
NVIDIA GeForce GTX 1050 (Laptop) - 4096 MB, Core: 1454 MHz, Memory: 1752 MHz, GDDR5
Memory
16384 MB , DDR4
Display
15.6 inch 16:9, 1920 x 1080 pixel 141 PPI, IPS, glossy: no
Mainboard
Intel HM175
Storage
128 GB SATA SSD, 128 GB , + 1TB SSHD
Soundcard
Intel Skylake PCH-H High Definition Audio Controller
Connections
1 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5mm combo, Card Reader: SD/SDHC/SDXC
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2
Size
height x width x depth (in mm): 23 x 384 x 262 ( = 0.91 x 15.12 x 10.31 in)
Battery
64 Wh Lithium-Ion, 4-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Additional features
Speakers: 2x 2W, Keyboard: Chiclet, Keyboard Lights, 12 Months Warranty
Weight
2.23 kg ( = 78.66 oz / 4.92 pounds)
