Background and Identification

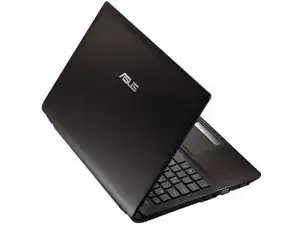

The Asus K53E-MT1 is a 15.6-inch Windows 7 laptop sold by Asus. The K53E was released as part of the Asus K Series laptops. This model features a second-generation Intel Core processor and an aluminum body. The computer also features IceCool Technology, which is designed to keep the user’s hands cool.

The Asus K53E-MT1 model’s 15.6-inch LED backlit display has a resolution of 1366 by 768 pixels. The computer includes an integrated Intel GMA HD graphics card. This model was sold with either an Intel Core i5 or i3 dual-core processor with a 3 MB cache. Up to 8 GB of SDRAM can be installed using two SO-DIMM sockets for expansion. The computer features a Blu-Ray DVD combination optical drive and a Super-Multi DVD optical drive.

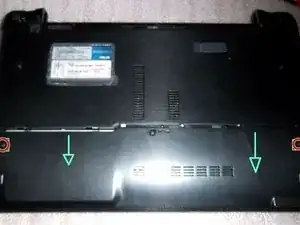

To identify this laptop, look on the bottom side for a sticker containing the model number “K53E-MT1.” If the sticker doesn’t have a model number on it, find the serial number instead and enter it on Asus’ warranty check page to find your exact model. This model includes a 4-in-1 SD/MS/MS Pro/MMC card reader. The computer’s ports are located on the sides of the base and include a microphone-in jack, a headphone-out jack, a VGA port, three USB 2.0 ports, an HDMI port, and an RJ45 LAN jack.

Technical Specifications

Display:

  • Diagonal Size: 15.6"
  • Resolution: 1366 x 768 (HD), 16:9
  • Technology: LED backlit display

Graphics Card: Integrated Intel® GMA HD
Processor

  • Type: Intel® Core™ i5-2410M dual-core processor
  • Speed: 2.30 GHz with Turbo Boost up to 2.9 GHz
  • Cache: 3 MB L3
  • Type: Intel® Core™ i3-2310M dual-core processor
  • Speed: 2.10 GHz
  • Cache: 3 MB L3

Chipset: Intel® HM65 Express Chipset
Memory:

  • DDR3 1333 MHz SDRAM
  • 2 x SO-DIMM socket for expansion up to 8 GB SDRAM

Storage:

  • 2.5" SATA
  • 750GB 5400rpm; 7200rpm
  • 640GB 5400rpm
  • 500GB 5400rpm; 7200rpm
  • 320GB 5400rpm

Optical Drive:

  • Blu-Ray DVD Combo (optional)
  • Super-Multi DVD

Communication:

  • LAN: 10/100/1000 Base T
  • WLAN: Integrated802.11 b/g/n
  • Bluetooth: Built-in Bluetooth™ 2.1 + EDR (optional)

Audio:

  • Built-in Speakers And Microphone
  • Altec Lansing® Speakers

Interface:

  • 1 x Microphone-in jack
  • 1 x Headphone-out jack
  • 1 x VGA port/Mini D-sub 15-pin for external monitor
  • 3 x USB 2.0 port(s)
  • 1 x RJ45 LAN Jack for LAN insert
  • 1 x HDMI

Slots: Card Reader: 4-in-1 card reader (SD, MS, MS Pro, MMC)

Camera: 0.3 Megapixel Fixed webcam

Power:

  • Battery : 6-cell 5200 mAh 56 Whrs
  • Output : 19 V DC, 4.74 A, 65 W
  • Input : 100 -240 V AC, 50/60 Hz universal

Security:

  • BIOS Booting User Password Protection
  • HDD User Password Protection and Security

Dimensions and Weight:

  • Width : 37.8 cm
  • Depth : 25.3 cm
  • Height : 2.83 - 3.49 cm
  • Weight : 2.60 kg (with 6-cell battery)

Operating System:

  • Genuine Windows® 7 Ultimate
  • Genuine Windows® 7 Professional
  • Genuine Windows® 7 Home Premium
  • Genuine Windows® 7 Home Basic
  • Genuine Windows® 7 Starter
