Background and Identification

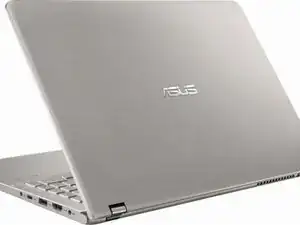

The Asus Q505UA-BI5T7 Laptop features a 360° rotatable 15.6 inch display touchscreen and comes standard with an 8th generation intel core I5 processor, 1 TB HDD, along with a powerful Harmon Kardon audio system. The screen boasts a resolution of 1920x1080 with a 178° viewing angle. To improve sleekness Asus includes a NanoEdge display with an ultra-narrow bezel creating a 79% screen-to-body ratio.
The Q505UA is ideal for multitasking. Included is 12 GB RAM that provides ample power to keep multiple programs running simultaneously. The laptop has three standard ports including HDMI, USB Type-C, and USB 3.0. It also possesses cutting edge WiFi technology. Specifically the Asus Q505UA includes the latest 802.11ac WiFi with speeds of up to 867Mbps.Specifications
Specifications
- Processor: Intel® Core™ i5 8250U Processor,
- Operating System: Windows 10 Home
- Memory: 12 GB DDR4 2400MHz SDRAM, up to 16 GB SDRAM
- Display: 15.6" (16:9) FHD (1920x1080)
- Storage: Hard Drives: 1TB 5400RPM SATA HDD
- Card Reader: Multi-format card reader (SD/SDHC)
- WebCam: VGA Web Camera
- Networking: Wi-Fi
Integrated 802.11 AC
Integrated 802.11b/g/n
Bluetooth
Built-in Bluetooth V4.1 - Interface: 1 x Microphone-in/Headphone-out jack
1 x Type C USB3.0 (USB3.1 GEN1)
2 x USB 3.0 port(s)
1 x HDMI - Audio: Built-in Stereo 1.6 W Speakers And Microphone
Harman Kardon - Battery: 3 Cells 6 Whrs Polymer Battery
- Power Adapter: Plug Type :ø4 (mm)
Output :
19 V DC, 2.37 A, 45 W
Input :
100 -240 V AC, 50/60 Hz universal - Dimensions: 14.33 x 9.69 x 0.76 inch (WxDxH)
- Weight: 4.19 lbs with Battery
- Security: Intel Anti-Theft
