Canon PIXMA MG3550 Repair

The Canon PIXMA MG3550 is a compact all-in-one scanner, copier, and printer for home use. It can be used to print and scan using a tablet or smartphone with the PIXMA Printing Solutions application. This printer was released in white and black variants.

The Canon PIXMA MG3550 supports Google Cloud Print and Apple AirPrint. With Google Cloud Print, users can print Google Documents, emails, photos, and PDF documents over the internet, meaning users can print from across the globe. Optional extra-large ink cartridges are available. It prints images with 4,800 dots per inch (dpi). The Canon PIXMA MG3550 also has automatic double-sided printing and automatically turns on when it is given a printing task.

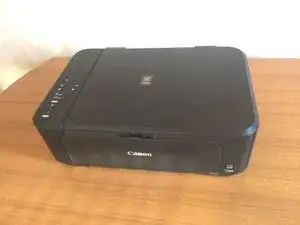

This printer was released in white and black variants. Both versions include the name “Canon” in silver font engraved in the front of the printer’s tray. It also includes the PIXMA logo, which depicts the name “PIXMA” in capital letters with a stylized letter “X” above the name. The printer’s tray can be lowered to catch printed documents. Because the printer has scanning and copying capabilities, the top case of the printer can be lifted up. Control buttons are located on the left-hand side of the printer if viewed facing the printer’s tray.

General Specifications:

• Functions: Wireless Print, Copy, Scan

Printer Specifications:

• Print Resolution: Up to 4800¹ x 1200 dpi
• Print Technology:
  • 2 FINE Cartridges (Black and Colour)
  • Inkjet system with 2pl (min.) ink droplet size
  • ChromaLife100 inks
• Mono Print Speed: Approx. 9.9 ipm
• Color Print Speed: Approx. 5.7 ipm
• Photo Print Speed: Borderless 10x15cm : Approx. 44 seconds
• Borderless Printing: Yes (A4, Letter, 20x25cm, 13x18cm, 10x15cm)
• Two-Sided Printing: Auto Duplex Print (A4, Letter)

Cartridges and Yields:

• Standard Ink Cartridges:
  • PG-540 (Black)
  • CL-541 (Colour)
• Optional XL Ink Cartridges:
  • PG-540XL (Black)
  • CL-541XL (Colour)

Ink Tanks Yield (Photo Print):

• Cartridge Yield (Plain paper):
  • A4 color documents printing
  • Black: 180 pages
  • Black XL: 600 pages
  • Color: 180 pages
  • Color XL: 400 pages
• Cartridge Yield (Photo print):
  • 10x15cm color photo printing
  • Black: 2465 photos
  • Black XL: 7560 photos
  • Color: 69 photos
  • Color XL: 150 photos

Paper Support:

• Paper Types:
  • Plain Paper
  • Envelopes
  • Canon Pro Platinum (PT-101)
  • Canon Pro Luster (LU-101)
  • Canon Plus Glossy II (PP-201)
  • Cano Plus Semi-gloss (SG-201)
  • Canon "Everyday Use" (GP-501)
  • Canon Matte (MP-101)
  • Canon High-Resolution Paper (HR-101N)
  • Canon Photo Stickers (PS-101)
  • Canon T-Shirt Transfer (TR-301)
• Maximum Paper Input: Front tray: Max. 100 sheets (plain paper)
• Paper Sizes: A4, A5, B5, 10x15cm, 13x18cm, 20x25cm, Envelopes (DL, COM10), Letter, Legal
• Paper Weight:
  • Plain paper: 64 - 105 g/m²
  • Canon photo paper: up to 300 g/m²

Scanner Specifications:

• Scanner Type: CIS flatbed photo and document scanner
• Scanner Resolution (Optical): 1200 x 2400 dpi
• A4 Scan Speed: Approx. 14 seconds
• Scanning Depth (Input/Output):
  • Colour: 48 bit / 24 bit
  • Greyscale: 16 bit / 8 bit
• Maximum Document Size: 216 x 297 mm

Copier Specifications:

• Copy Speed:
  • sFCOT: Approx. 22 seconds
  • sESAT: Approx. 2.7 ipm
• Multiple Copy: 21 copies (max.)
• Copy Functions: Document copying (plain paper), Borderless Copy
• Copy Zoom: Fit to page

Interface:

• Display Type & Size: No display
• Interface Type - PC / Mac:
  • Hi-Speed USB (B Port)
  • Wi-Fi: IEEE802.11 b/g/n
  • Wi-Fi Security: WPA-PSK, WPA2-PSK, WEP, Administration password
• Interface Type - Other:
  • PIXMA Printing Solutions app
  • Google Cloud Print
  • Apple AirPrint

Software:

• Supported Operating Systems:
  • Windows 8
  • Windows 7
  • Windows Vista
  • Windows XP SP3 (32bit only)
  • Mac OS X 10.6.8 or later
• Supported Mobile Systems:
  • iOS
  • Android
  • Windows RT
• Minimum System Requirements:
  • Windows: 3GB disk space, Internet Explorer 8
  • Mac: Internet connection, 1.5GB disk space, Safari 5
  • Display: 1024 x 768 XGA
• Software Included
  • MP Driver including Scanning Utility
  • My Image Garden with Full HD Movie Print
  • Quick Menu
  • Easy-WebPrint EX (download)

Physical Features:

• Weight: Approx. 5.4 kg
• Dimensions (W x D x H): 449 x 304 x 152mm
• Acoustic Noise Levels: Approx. 42.5 dB
• Operating Temperature: 5-35°C
• Operating Humidity: 10-90%RH (no dew condensation)
• Power Source: AC 100-240V, 50/60Hz
• Power Consumption:
  • Off: Approx. 0.3 W
  • Standby (connected to PC via USB): Approx. 1.7 W (scanning lamp off)
  • Standby (all ports connected): Approx. 2.2 W (scanning lamp off)
  • Time to enter Standby mode: 7 minutes
  • Copying: Approx. 16 W
