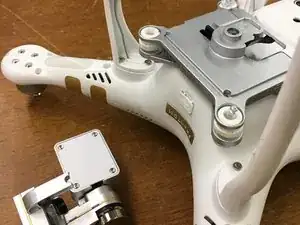

Camera Gimbal Arm and Cable

Camera Gimbal Arm and Cable

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

Phantom is a series of UAVs (or unmanned aerial vehicles) designed and manufactured by DJI, a Chinese technology company. The DJI Phantom 3 was released in April 2015 with five different models, including the Professional, Advances, Standard, 4K, SE, and Vision+.

The Phantom 3 features a built-in light-bridge downlink that allows the user to control the UAV at a maximum range of 4800 meters or about three miles. Compared to the Phantom 2, the 3 also has an improved visual positioning system which helps the UAV maintain its position indoors and at lower altitudes where GPS signals may be weak or unavailable. The remote for the Professional model includes two antennas.

The Phantom 3 Professional records videos in 4K and includes 100-Watt fast-charging capabilities. Smartphones and tablets can be connected to the controller using the optional HDMI-out and USB-in ports. The Professional’s remote can also hold up to a 9.7-inch tablet thanks to larger clamps. The remote uses a 6000 mAh battery while the UAV itself includes a 4480 mAh “Intelligent Flight Battery.”

The Professional aircraft weighs 1280 grams, including its battery and propellers. It can travel at approximately 16 m/s in ATTI mode and can fly for a maximum of 23 minutes. The Pro’s camera gimbal includes 3-axis (yaw, pitch, roll) stabilization.

The Phantom 3 Professional can be identified by its white quadcopter body with gold-colored accents on each quadcopter arm. The name “Phantom” is printed in silver capital letters above the model name “Professional” in grey capital letters. The names are surrounded by a gold-colored background above the camera gimbal.

Technical Specifications

Aircraft:

  • Takeoff Weight (battery and propellers included): 1280 g
  • Diagonal Size: 350 mm
  • Max Ascent Speed: 5 m/s
  • Max Descent Speed: 3 m/s
  • Max Speed (near sea level, no wind): 16 m/s (ATTI mode)
  • Max Flight Time (no wind): Approx. 23 minutes
  • Max Service Ceiling Above Sea Level: 19685 feet (6000 m)
  • Max Tilt Angle: 35°
  • Max Angular Velocity: 150°/s
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Satellite Positioning Systems: GPS/GLONASS
  • Hovering Accuracy Range:
    • Vertical:
      • ± 0.1 m (when vision positioning is active)
      • ± 0.5 m (with GPS positioning)
    • Horizontal:
      • ± 0.3 m (when vision positioning is active)
      • ± 1.5 m (with GPS positioning)

Vision System:

  • Vision System: Downward Vision System
  • Velocity Range: ≤8 m/s at 6.6 ft (2 m) above ground
  • Altitude Range: 30 - 300
  • Operating Range: 50 - 300 cm
  • Operating Environment: Surface with clear pattern and adequate lighting (lux>15)

Remote Controller:

  • Operating Frequency: 2.400 - 2.483 GHz
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)
  • Max Transmission Distance:
    • FCC Compliant: 3.1 mi (5 km)
    • CE Compliant: 2.2 mi (3.5 km) (Unobstructed, free of interference)
  • Battery: 6000 mAh LiPo 2S
  • Transmitter Power (EIRP):
    • FCC: 20 dBm
    • CE: 16 dBm
    • MIC: 16 dBm
  • Operating Current/Voltage: 1.2 A@7.4 V
  • Video Output Port: USB
  • Mobile Device Holder: Tablets and smartphones

Intelligent Flight Battery

  • Capacity: 4480 mAh
  • Voltage: 15.2 V
  • Battery Type: LiPo 4S
  • Energy: 68 Wh
  • Net Weight: 365 g
  • Charging Temperature Range: 41° to 104°F (5° to 40°C)
  • Max Charging Power: 100 W

Gimbal:

  • Controllable Range: Pitch: -90° to +30°
  • Stabilization: 3-axis (pitch, roll, yaw)
  • Max Controllable Angular Speed: Pitch: 90°/s
  • Angular Vibration Range: ±0.02°

Camera:

  • Sensor:
    • 1/2.3” CMOS
    • Effective pixels: 12.4 M (total pixels: 12.76 M)
  • Lens: FOV 94° 20 mm (35 mm format equivalent) f/2.8 focus at ∞
    • 100-3200 (video)
    • 100-1600 (photo)
  • ISO Range:
    • Video:
      • 100-3200 (Auto)
      • 100 - 6400 (Manual)
    • Photo:
      • 100-3200 (Auto)
      • 100-12800 (Manual)
  • Electronic Shutter Speed: 8–1/8000s
  • Image Size: 4000x3000
  • Still Photography Modes:
    • Single Shot
    • Burst Shooting: 3/5/7 frames
    • Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
    • Timelapse
  • Video Recording Modes:
    • UHD: 4096x2160p 24/25, 3840x2160p 24/25/30
    • FHD: 1920x1080p 24/25/30/48/50/60
    • HD: 1280x720p 24/25/30/48/50/60
  • Max Video Bitrate: 60 Mbps
  • Supported File System:
    • FAT32 (≤ 32 GB)
    • exFAT (> 32 GB)
  • Photo Format: JPEG / DNG (RAW)
  • Video Format: MP4, MOV (MPEG-4 AVC/H.264)
  • Supported SD Cards:
    • Micro SD
    • Max capacity: 64 GB
    • Class 10 or UHS-1 rating required
  • Operating Temperature Range: 32° to 104°F (0° to 40°C)

Charger:

  • Voltage: 17.4 V
  • Rated Power: 100 W

APP/Live View

  • Mobile App: DJI GO 4
  • Live View Working Frequency: 2.4 GHz ISM
  • Live View Quality: 720P @ 30fps
  • Latency: 220ms (depending on conditions and mobile device)
  • Required Operation Systems:
    • iOS 8.0 or later
    • Android 4.1.2 or later
  • Recommended Devices:
    • ios: iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPod touch 6, iPad Pro, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4, and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, and iPhone 6s Plus.
    • Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei Mate 8, Nubia Z7 mini, SONY Xperia Z3, MI 3, MI PAD
