Background and Identification

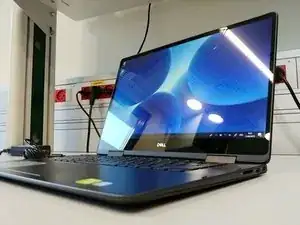

The Dell Inspiron 7586 2-in-1 is a 15.6-inch laptop that features a 360-degree flip design that allows the laptop to fold over into a tablet. Dell Inspiron computers are made by Dell, an American multinational computer technology company as an affordable line of computers. They come in laptops, desktops, and all-in-one computers. They were originally released in the mid-1990s in the U.S. and marketed as a home office/consumer line of computers.
The Dell Inspiron 7586 2-in-1 includes an 8th Generation Intel Core i7 8565U quad-core processor with an 8 MB cache. The computer’s 15.6-inch liquid-crystal display (LED) has a resolution of 3840 by 2160 pixels, classifying it as an Ultra HD 4K display. The processor includes Intel Turbo Boost Technology 2.0. The laptop features 16 GB of RAM and can support a maximum of 32 GB of memory with two memory card slots. The Dell Inspiron 7586 2-in-1 includes an NVIDIA GeForce MX150 graphics processor and a 512 GB solid-state hard drive. The computer also features a four-cell 56-Watt-hour battery and a fingerprint reader for added security.
The Dell Inspiron 7586 2-in-1 laptop includes two USB 3.1 Gen 1 ports, a USB-C 3.1 Gen 1 /DisplayPort, an HDMI port, and a headphone/microphone combination jack. Its memory card reader can read SD cards, SDHC cards, and SDXC cards.
Technical Specifications
GENERAL
- Manufacturer: Dell, Inc.
PROCESSOR / CHIPSET
- CPU: Intel Core i7 (8th Gen) 8565U / 1.8 GHz
- Max Turbo Speed: 4.6 GHz
- Number of Cores: Quad-Core
- Cache: 8 MB
- 64-bit Computing: Yes
- Features: Intel Turbo Boost Technology 2.0
CACHE MEMORY
- Installed Size: 8 MB
STORAGE
- Interface: PCIe
RAM
- Memory Speed: 2400 MHz
- Configuration Features: 1 x 16 GB
- Technology: DDR4 SDRAM
- Installed Size: 16 GB
- Rated Memory Speed: 2666 MHz
MEMORY
- Max Supported Size: 32 GB
- Technology: DDR4 SDRAM
- Speed: 2400 MHz
- Form Factor: SO-DIMM 260-pin
- Slots Qty: 2
- Empty Slots: 1
ENVIRONMENTAL PARAMETERS
- Humidity Range Operating: 10 - 90% (non-condensing)
DISPLAY
- Resolution: 3840 x 2160 (Ultra HD 4K)
- Widescreen Display: Yes
- Monitor Features: 0.08964 mm pixel pitch, 35 ms response rate, Narrow Border Display, TrueLife, Wide Viewing Angle, glossy, ±85° horizontal viewing angle, ±85° vertical viewing angle
- Type: LCD
- Touchscreen: yes
- TFT Technology: IPS
- Diagonal Size (metric): 39.487 cm
- Display Resolution Abbreviation: Ultra HD 4K
AUDIO & VIDEO
- Graphics Processor: NVIDIA GeForce MX150
- Sound: Stereo speakers, dual array microphone
- Audio Codec: Realtek ALC3254
HARD DRIVE
- Type: SSD
- SSD Form Factor: M.2
- Capacity: 512 GB
- Hard Drive Features: NVM Express (NVMe)
INPUT
- Type: keyboard, touchpad
- Localization & Layout: English
COMMUNICATIONS
- Wireless Protocol: 802.11a/b/g/n/ac Wave 2, Bluetooth 5.0
- Wireless Controller: Intel Wireless-AC 9560
OPTICAL STORAGE
- Drive Type: no optical drive
- Type: none
PROCESSOR
- CPU Type; Core i7
- Generation: 8
- Manufacturer: Intel
- Clock Speed: 1.8 GHz
CARD READER
- Type: card reader
- Supported Flash Memory
- SD Memory Card, SDHC Memory Card, SDXC Memory Card
BATTERY
- Capacity: 56 Wh
- Cells: 4-cell
AC ADAPTER
- Input: AC 120/230 V (50/60 Hz)
- Output: 65 Watt, 19.5 V, 3.34 A
CONNECTIONS & EXPANSION
- Interfaces
- 2 x USB 3.1 Gen 1
- USB-C 3.1 Gen 1/DisplayPort
- HDMI
- Headphone/microphone combo jack
- Memory Card Reader: Yes (SD Card, SDHC Card, SDXC Card)
HEADER
- Brand: Dell
- Product Line: Dell Inspiron
NETWORKING
- Data Link Protocol: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wireless NIC: Intel Wireless-AC 9560
MISCELLANEOUS
- Color: black
- Security: Fingerprint reader
- Included Accessories: power adapter
MONITOR
- Diagonal Size: 15.6 in
- Image Brightness: 300 cd/m2
SYSTEM
- Notebook Type: 2-in-1
- Mechanical Design: 360° flip design
- Platform: Windows
- Hard Drive Capacity: 512 GB
- Security Devices: fingerprint reader
DIMENSIONS & WEIGHT
- Width: 14.2 in
- Depth: 9.5 in
- Height: 0.7 in
AUDIO OUTPUT
- Compliant Standards: High Definition Audio
MANUFACTURER WARRANTY
- Type: 1-year warranty
PHYSICAL CHARACTERISTICS
- Weight: 4.56 lbs
POWER
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 95 °F
OPERATING SYSTEM / SOFTWARE
- OS Provided: Type: Windows 10 Home 64-bit Edition
- Type: McAfee LiveSafe (30 days trial), Microsoft Office (30 days trial)
VIDEO OUTPUT
- Discrete Graphics Processor: Yes
- Graphics Processor: NVIDIA GeForce MX150
- Graphics Processor Series: NVIDIA GeForce MX
VIDEO MEMORY
- Technology: GDDR5 SDRAM
- Installed Size: 2 GB
INPUT DEVICE
- Backlight: Yes
INTERFACES
- USB-C Ports Qty: 1
