Dell XPS 13 L322X Repair

Reparaturanleitungen

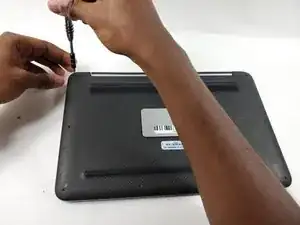

Base Plate

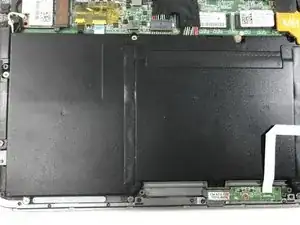

Battery

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

For any possible issues that you may run into, either while using the computer or over time, refer to our troubleshooting page.

The Dell XPS 13 L322X was released in early 2013 as part of the XPS line and a minor upgrade from the Dell XPS L321X—Dell’s first Ultrabook.

The Dell XPS 13 L322X retailed for around $1400, and Dell offered pre-configured builds with an improved 1080p IPS display panel, additional RAM, and increased solid state drive storage space. The Dell XPS 13 L322X has a silver case with a standard laptop form factor. Its dimensions are 0.35-0.6 inches high, 11.97 inches wide, and 7.88 inches deep. The model number can be found on the bottom of the laptop.

Height
- Front: 6 mm (0.24 in)
- Back: 18mm (0.71 in)
Width: 316 mm (12.44 in)
Weight with 6-cell battery: 1.32 kg (2.91 lb)

Type: 13.3-inch HD WLED, HD TrueLife or 13.3-inch HD WLED, FHD TrueLife
Maximum resolution: 1366 x 768 HD or 1920 x 1080 FHD
Refresh rate: 60 Hz
Dimensions:
- Height 191.74 mm (7.55 in)
- Width 305.03 mm (12.01 in)
- Diagonal 337.82 mm (13.30 in)
Operating angle: 0° (closed) to 135°

Type 6-cell 'smart lithium’ - 47 Whr
Dimensions:
Height 5.16 mm (0.20 in)
Width 113.16 mm (4.45 in)
- Depth 287 mm (11.30 in)
- Weight 0.29 kg (0.63 lb)
Voltage: 7.4 V
Operating time: varies depending on operating conditions

Internal speaker amplifier: 1.5 W x 2
Internal microphone support dual-array digital microphones in camera assembly

1.3-megapixel camera with HD (720p) video recording

USB Ports
- one USB 3.0 port with PowerShare with Window Debug
- one USB 3.0 port
One 20-pin port Mini DisplayPort
One headphone/microphone combo port
power adapter

** Input Voltage: 100-240 VAC
