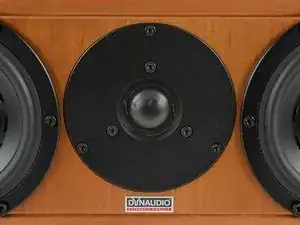

With the Contour Center, Dynaudio have paid particular attention to the woofers, which feature die cast baskets and long throw progressive spiders for the fine control of the membrane.

They have also incorporated aluminium voice coils and five duct coil cooling system to ensure first rate audio performance. All Contour Center drivers use vented magnet systems and each speaker is equipped with magnetically optimized triple shielding which eliminates the risk of interference to televisions and other electrical appliances.

As a final touch, Dynaudio have used environmental friendly damped materials throughout and encased the Contour Center in a stunning wood veneer cabinet that will enhance any listening environment.

Technical Specifications:

Sensitivity (2.83 V/1 m): 86 dB

IEC Long Term Power Handling: 150 W

Nominal Impedance: 6 Ohms

Frequency Response: 80 Hz - 21 kHz

Weight: 11,1 kg

Dimensions (W x H x D): 570 x 165 x 320 mm

Dynaudio Contour Center Official Specifications PDF
