Reparaturanleitungen

Display / LCD

Display / LCD

 en
Screen Replacement

Screen Replacement

 en
Touchscreen and LCD

Touchscreen and LCD

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

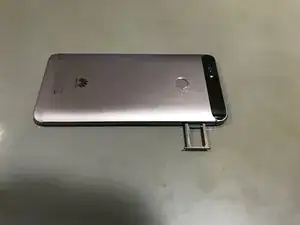

The Huawei Nova Android smartphone was released by Huawei in October 2016. It was released with the Huawei Nova Plus, which has slightly larger dimensions and a larger battery. Internationally, the Huawei Nova was available in gold, silver, and grey bodies. In China, the Nova was available in white, black, rose gold, and silver bodies. Both versions sport glass fronts and aluminum backs and frames.

The Nova and Nova Plus both feature slightly rounded and sand-blasted aluminum backs. The Nova has a 5.0-inch display while the Nova Plus has a 5.5-inch display. The Nova includes a 3,020 mAh non-removable battery, whereas the Nova Plus’s battery clocks in at 3,340 mAh. The Nova features a 12-megapixel main camera and an 8-megapixel front camera that support autofocus capabilities. The international Nova variant includes 32 GB of internal storage and 3 GB of RAM, while the versions available in China include 4 GB of RAM and 64 GB of internal storage.

The Nova features a rear-mounted fingerprint scanner, accelerometer, gyro, proximity, and compass sensors. The Nova and Nova Plus are not splash-resistant. Both variants feature dual-SIM functionality, but only one SIM can be used if operated with an additional MicroSD card for expanded storage.

Reviews praised the Nova’s aluminum build and battery life but found that the cameras performed poorly in low-light conditions.

Technical Specifications

Models: CAN-L01L11, CAN-L02L12, CAN-L03L13, CAN-L11, CAN-L01, CAN-L12, CAZ-AL10, CAZ-TL10

Release date: October 2016

Body:

  • Dimensions and Weight: 141.2 x 69.1 x 7.1 mm (5.56 x 2.72 x 0.28 in), 146 g (5.15 oz)
  • Build: Glass front, aluminum back, aluminum frame
  • SIM: Single SIM (Nano-SIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by)

Display:

  • Type: IPS LCD capacitive touchscreen, 16M colors
  • Size: 5.0 inches, 68.9 cm2 (~70.6% screen-to-body ratio)
  • Resolution: 1080 x 1920 pixels, 16:9 ratio (~441 ppi density)

Platform:

  • OS: Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat), EMUI 4.1
  • Chipset: Qualcomm MSM8953 Snapdragon 625 (14 nm)
  • CPU: Octa-core 2.0 GHz Cortex-A53
  • GPU: Adreno 506

Memory:

  • Card slot: microSDXC (uses shared SIM slot)
  • Internal: 32GB 3GB RAM
  • eMMC 5.1

Main Camera:

  • Single: 12 MP, 1/2.9", 1.25µm, PDAF
  • Features: HDR, panorama
  • Video: 4K@30fps, 1080p@30fps

Selfie Camera:

  • Single: 8 MP
  • Video: 1080p@30fps

Sound:

  • Loudspeaker: yes
  • 3.5 mm jack: yes

Communications:

  • WLAN: Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot
  • Bluetooth: 4.1, A2DP, LE
  • GPS: Yes, with A-GPS, GLONASS
  • NFC: No
  • Radio: FM Radio
  • USB: Type-C 1.0 reversible connector

Features:

  • Sensors: Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass

Battery:

  • Non-removable Li-Po 3020 mAh battery
  • Charging: Fast charging 18W

Miscellaneous:

  • Colors: Prestige Gold, Mystic Silver, Titanium Grey, Obsidian Black

Additional Information
