Reparaturanleitungen

Ear Pad

Ear Pad

 en

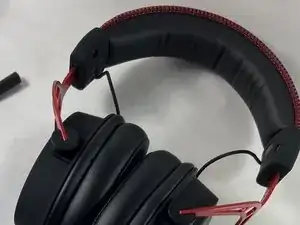

Headband

Headband

 en

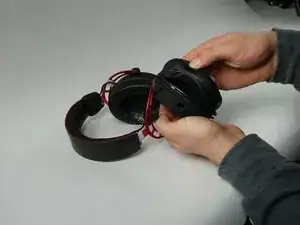

Hinges

Hinges

 en

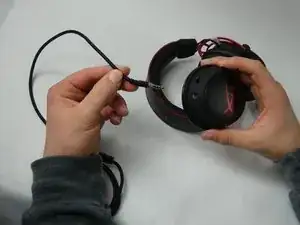

Inline Audio Cable

Inline Audio Cable

 en

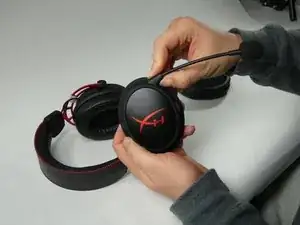

Microphone

Microphone

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

Refer to our troubleshooting page.

Background Information

The HyperX Cloud Alpha is a gaming headset equipped with two ear speakers, a microphone, and an inline audio control. The device was released on August 22, 2017 and is still in production today and is available globally.

The device hit the market with an initial price of $99 USD and, as of July 2022, can now be found for $69 USD due to the release of the HyperX Cloud Alpha Wireless, a newer wireless version.

The headset has a few common problems such as echoing and static. The components that tend to fail are the microphone and the memory foam on the ears. The most common complaints involve the failures and components we just talked about. This model is a base model and was superseded by the Cloud Alpha S.

Identification

To identify this device, look for the following characteristics. The device is firstly a HyperX headset and should have their logo on the earpiece. The microphone is connected through a jack and can be unplugged easily. An important distinction is that this device uses a wire with audio controls, so make sure you do not have the wireless version.

The device weighs 10.4 oz, and comes in two different colors: black-red and blackout. Black-red is black with red accents on the stitching along the frame, the logo, and each of the hinges connecting the ear pieces to the frame. Blackout is entirely black.

Specifications

Headset

  • Dimensions: 9.2 x 8.25 x 4.65 in
  • Weight: 10.4 oz
  • Colors: Black with Red Accents, Black
  • Cable Length: 4.26 ft detachable headset cable, 6.56 ft PC extension cable
  • Ear Cushion: Memory foam and premium leatherette
  • Frame Material: Aluminum
  • Driver: Dynamic, 53mm with neodymium magnets
  • Connection Type: Wired 3.5mm
  • Frequency Response: 13Hz–27kHz
  • Sensitivity: 98dBSPL/mW at 1kHz
  • Compatibility: PC, PS4, PS4 Pro, Xbox One, Xbox One S, Mac, Mobile, Nintendo Switch, VR
  • Inline Audio Control

Microphone

  • Removable
  • Sensitivity: -43dBV (0dB=1V/Pa,1kHz)
  • Polar Pattern: Bi-directional, Noise Cancelling
  • Element: Electret condenser microphone

Box Content

  • Gaming Headset
  • Detachable Headset Cable
  • Detachable Mic
  • PC Extension Cable
  • Quick Start Guide

Sources
