Background and Identification

The Intel NUC DN2820FYKH is a compact barebones media server kit by Intel. The impressively titled “Next Unit of Computing” (or NUC for short) is a line of small-form-factor computers released by Intel starting in 2012. Intel NUCs consist of a case, a small motherboard, and a fan for cooling. NUC motherboards are usually built to measure 4 inches (10.2 cm) on each side, which Intel calls the “Ultra-compact form factor.“ Due to their small size and relatively low price, NUCs are often used for hobby projects, as home media players, or in offices or schools.

The Intel NUC DN2820FYKH is powered by an Intel Celeron N2820 processor and includes Intel HD Graphics that operate at speeds up to 756 MHz with an HDMI 1.4a video output. The NUC kit includes the processor, CPU cooler, motherboard, power supply, 802.11n Wi-Fi card, and case.

The Intel NUC DN2820FYKH includes a case, so you can find the serial number on a sticker on the bottom of the device. Intel’s stocking ID number (labeled “SA” or “AA”) is also located on the stickers. Enter these two numbers on Intel’s check warranty page to find your NUC model. You can see pictures of these numbers in this guide from Intel.

Technical Specifications

  • Product Collection: Legacy Intel® NUC Kits
  • Code NameProducts formerly Forest Canyon
  • Status: Discontinued
  • Launch Date: Q4'13
  • Supported Operating Systems: Windows 10, 64-bit, Windows 8.1, 32-bit, Windows 8.1, 64-bit, Windows 8, 32-bit, Windows 8, 64-bit, Windows 7, 32-bit, Windows 7, 64-bit

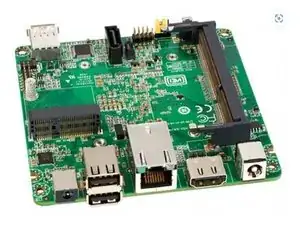

  • Board Number: DN2820FYK
  • Board Form Factor: UCFF (4" x 4")
  • Socket: Soldered-down BGA
  • Internal Drive Form Factor: 2.5" Drive
  • # of Internal Drives Supported: 1
  • Lithography: 22 nm
  • TDP: 7.5 W
  • DC Input Voltage Supported: 12 VDC
  • Processor Included: Intel® Celeron® Processor N2830 (1M Cache, up to 2.41 GHz)
  • Intel vPro® Platform Eligibility: No
  • # of Cores: 2
  • # of Threads: 2
  • Processor Base Frequency: 2.16 GHz
  • Warranty Period: 3 yrs

Memory & Storage:

  • Max Memory Size (dependent on memory type): 8 GB
  • Memory Types: DDR3L-1066/1333 1.35V SO-DIMM
  • Max # of Memory Channels: 1
  • Max Memory Bandwidth: 10.7 GB/s
  • Max # of DIMMs: 1
  • ECC Memory Supported: No

Processor Graphics:

  • Processor Graphics: Intel® HD Graphics for Intel Atom® Processor Z3700 Series
  • Integrated Graphics: Yes
  • Graphics Output: HDMI 1.4a
  • # of Displays Supported: 1

Expansion Options:

  • PCI Express Revision: Gen2
  • PCI Express Configurations: Half-length MiniPCI card with PCIe X1 lane
  • PCIe Mini Card Slot (Half Length): 1

I/O Specifications:

  • # of USB Ports: 3
  • USB Configuration: 1x front and 2x rear USB 2.0
  • USB Revision: 2.0, 3.0
  • USB 2.0 Configuration (External + Internal): 2 + 0
  • USB 3.0 Configuration (External + Internal): 1 + 0
  • Total # of SATA Ports: 1
  • Max # of SATA 6.0 Gb/s Ports: 1
  • RAID Configuration: N/A
  • Audio (back channel + front channel): 7.1 digital + analog stereo headset
  • Integrated LAN: Realtek 8111GN-CG
  • Integrated Wireless: Intel® Wireless-N 7260 + Bluetooth 4.0
  • Integrated Bluetooth: Yes
  • Consumer Infrared Rx Sensor: Yes

Advanced Technologies

  • Intel vPro® Platform Eligibility: No
  • Intel® HD Audio Technology: Yes
  • Intel® Virtualization Technology (VT-x): Yes
