JVC GR-D290U Repair

Troubleshoot various problems of the camcorder using the JVC GR-290U troubleshooting guide.

The JVC GR-D290U was released in the United States on December 2006.

Wipe/Fader Effects to create pro-style scene transitions.

Program AE with Special Effects to capture fast moving images one frame at a time for a vivd, stable slow-motion effect.

LED Light to brighten a subject in a dark place.

Backlight Compensation to brighten images that are darkened by backlight.

Data Battery for a detailed view of the battery status.

Live Slow records and plays back precious or hard-to-see moments at a slow speed.

800x Digital Zoom + 25x Optical Zoom - 2.2 - 55 mm Lens Focal Length - Filter Diameter 27mm

2.2 - 55 mm Lens Focal Length - PAL Recording System

2.5 in. LCD - With Color Viewfinder -

Output Interfaces S-Video  Composite (Video)  Audio (RCA)  FireWire / DV / i.Link  USB

Included Accessories Software  USB Cable  A/V Cable  Shoulder Strap  8 MB Memory Card  AC Power Adapter  Remote Control

Optical zoom: 25 x

Display Size: 2.5 inches

Optical Sensor Resolution: 800000.0 Pixels

optical Sensor Technology: CCD

• Amazon: JVC GR-D290

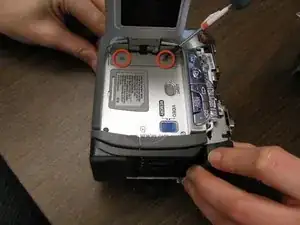

After taking out the battery. Use a phillip screwdriver to take off the top and bottom screw that hold the back plate together.

NOTE: To replace the LCD screen in the third guide, you do not need to follow the first two guides.
