Background and Identification

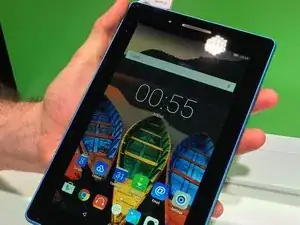

The Lenovo Tab3 7 Essential is a 7-inch Android tablet released by Lenovo in April 2016. Model numbers include TB3-710I, TB-7703X, TB3-730X, and TB3-710F.

The Lenovo Tab3 7 Essential tablet features a 7.0-inch display with a resolution of 600 by 1024 pixels for a screen-to-body ratio of 72.2 percent. It includes a single Micro-SIM card slot and a dedicated microSDHC slot. The tablet comes with 1 GB of RAM and 16 GB of internal storage that can be expanded up to 32 GB with separate microSDHC cards. The Tab3 7 includes a 2-megapixel or five-megapixel main camera and a VGA or two-megapixel selfie camera (a VGA camera is equivalent to 0.3 megapixels). It contains a 3450 mAh non-removable battery, meaning its battery's adhesive is permanent, making repair and replacement more difficult than for removable batteries, but not necessarily impossible. The tablet also includes a MicroUSB 2.0 port.

The Lenovo Tab3 7 includes the Android three-button navigation system with a ‘home’ button in the center of the phone’s bottom bezel (indicated with a house-shaped button), a ‘back’ button on the left side of the ‘home’ button (indicated with a triangle pointing to the left), and a ‘show-all-open-applications’ button on the right side of the ‘home’ button (indicated by a square).

Technical Specifications

Models: TB3-710I, TB-7703X, TB3-730X, TB3-710F

Release date: April 2016

Body:

  • Dimensions and Weight: 191 x 100 x 8.8 mm (7.52 x 3.94 x 0.35 in), 260 g (9.17 oz)
  • SIM: Micro-SIM

Display:

  • Type: IPS LCD
  • Size: 7.0 inches, 137.9 cm2 (~72.2% screen-to-body ratio)
  • Resolution: 600 x 1024 pixels, 16:9 ratio (~170 ppi density)

Platform:

  • OS: Android 6.0 (Marshmallow) or 5.0 (Lollipop)
  • Chipset: Mediatek MT8161 (28 nm)
  • CPU: Quad-core 1.3 GHz Cortex-A53
  • GPU: Mali-T720MP2

Memory:

  • Card slot: microSDHC (dedicated slot)
  • Internal: 8GB 1GB RAM, 16GB 1GB RAM

Main Camera:

  • Single: 2 MP, AF or 5 MP, AF
  • Video: 1080p@30fps

Selfie Camera:

  • Single: VGA or 2 MP

Sound:

  • Loudspeaker: Yes
  • 3.5 mm jack: Yes

Communications:

  • WLAN: Wi-Fi 802.11 b/g/n, hotspot
  • Bluetooth: 4.0, A2DP
  • GPS: Yes, with A-GPS
  • Radio: FM radio
  • USB: MicroUSB 2.0

Features:

  • Sensors: Accelerometer

Battery:

  • Li-Ion 3450 mAh, non-removable
  • Talk Time: Up to 9 h (multimedia)

Miscellaneous:

  • Colors: Black
