Background and Identification

The Maquet Servo-U Ventilator System was released in January 2016 and serves as Maquet’s mechanical ventilator. In April 2019, the Servo-U version 4.0 was released marking the most recent iteration of the ventilator.

The Servo-U is mounted on a swivel base with four caster wheels, features a height-adjustable body, and a digital user interface.

Additionally, the Servo-U only comes in a semigloss white paint with black accents, in line with many other Maquet products. The Servo-U can be easily identified by the “Servo U” branding on the front of the device and the lack of analog control elements on the display.

Specifications

General

  • Dimensions:

** User interface: W 366 x D 50 (90 with cable cover) x H 300 mm

  • Patient unit: W 300 x D 205 x H 420 mm
    • Patient unit with handle: W 435 x D 210 x H 530 mm
  • Weight: 23kg
    • User interface (incl. cable holder and cable): 4 kg

** Patient unit (not incl. handle): 15 kg

  • Cable holder and cable: 1 kg
    • Handle: 3 kg

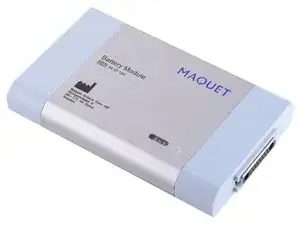

Power Supply

  • Rated input power
    • 100 V - 120 V AC, 2 A
    • 220 V - 240 V AC, 1 A
  • Auto range
    • 50 - 60 Hz
    • Typical minimum power consumption (no optional modules, no ongoing battery charging, normal panel backlight): 100 VA, 40 W at 230 V or 75 VA, 40 W at 110 V
    • Typical maximum power consumption (with CO2, Edi and Y sensor modules, ongoing battery charging, maximum panel backlight): 200 VA, 80 W at 230 V or 170 VA, 80 W at 110 V

Gas Supply

  • Maximum Air Levels:
    • H2O < 7 g/m3
    • Oil < 0.5 mg/m3
    • Chlorine: must not be detectable
  • Maximum O2 Levels:
    • H2O < 20 mg/m3
    • Oil < 0.3 mg/m3

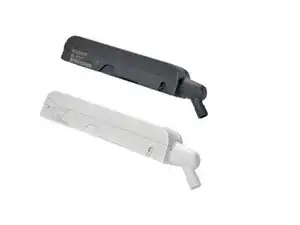

Patient System Connectors

  • Conical Fittings:
    • Nominal 22 mm and 15 mm, in accordance with ISO 5356-1
  • Pressure Line Connector:
    • Gable mounted bulk head connector to fit tubings with an inner diameter of 3-4 mm
  • Gas Exhaust Port:
    • Male 30 mm cone
