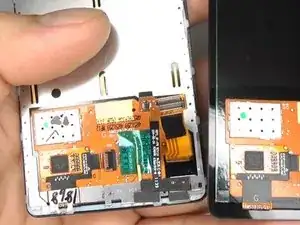

Display Assembly

Display Assembly

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

The Nokia Lumia 800 (also called the Nokia Sea Ray) is a smartphone produced by Nokia and released in November 2011. The Lumia 800 was Nokia’s first smartphone to run the Windows Phone operating system and marked the company’s shift from Symbian, a discontinued mobile operating system.

The Lumia 800 includes a 3.7-inch scratch-resistant display with a resolution of 480 by 800 pixels. It features a PenTile screen with a ClearBlack anti-glare filter. The phone shares its design with the MeeGo-based Nokia N9 smartphone. The Lumia 800 includes one physical button dedicated to the camera on the right side of the phone and a dual-LED flash placed directly above the Carl Zeiss camera lens. The phone includes a through-colored shell made from polycarbonate plastic available in black, cyan, magenta, and white.

The Lumia 800 includes a 1450 mAh non-removable battery, meaning the battery’s adhesive is permanent, making repair and replacement difficult, but not necessarily impossible. It includes 16 GB of internal storage and 512 MB of RAM. The phone features a single 8-megapixel main camera but does not include a selfie camera.

The Nokia Lumia 800 was replaced as Nokia’s flagship smartphone by the Nokia Lumia 900, which was originally released for the American market through AT&T. In September 2012, the Nokia Lumia 820 was released as the successor of the Lumia 800 with a selfie camera, dual-core processor, exchangeable covers, and a larger screen.

Technical Specifications

Release date: November 2011

Body:

  • Dimensions and Weight: 116.5 x 61.2 x 12.1 mm, 76.1 cc (4.59 x 2.41 x 0.48 in)
  • Build: 142 g (5.01 oz)
  • SIM: Micro-SIM

Display:

  • Type: AMOLED
  • Size: 3.7 inches, 39.0 cm2 (~54.7% screen-to-body ratio)
  • Resolution: 480 x 800 pixels, 5:3 ratio (~252 ppi density)
  • Protection: Corning Gorilla Glass
  • Nokia ClearBlack display

Platform:

  • OS: Microsoft Windows Phone 7.5 Mango, upgradable to 7.8
  • Chipset: Qualcomm MSM8255 Snapdragon S2
  • CPU: 1.4 GHz Scorpion
  • GPU: Adreno 205

Memory:

  • Card slot: No
  • Internal: 16GB 512MB RAM

Main Camera:

  • Single: 8 MP, AF
  • Features: Carl Zeiss optics, dual-LED flash
  • Video: 720p@30fps

Selfie Camera: No

Sound:

  • Loudspeaker: Yes
  • 3.5 mm jack: Yes

Communications:

  • WLAN: Wi-Fi 802.11 b/g/n
  • Bluetooth: 2.1, A2DP, EDR
  • GPS: Yes, with A-GPS
  • Radio: Stereo FM radio, RDS
  • USB: MicroUSB 2.0

Features:

  • Sensors: Accelerometer, proximity, compass
  • MP3/WAV/eAAC+/WMA player
  • MP4/H.264/WMV player
  • Document viewer/editor
  • Video/photo editor

Battery:

  • Non-removable Li-Ion 1450 mAh battery (BV-5JW)
  • Stand-by: Up to 265 h (2G) / Up to 335 h (3G)
  • Talk Time: Up to 13 h (2G) / Up to 9 h 30 min (3G)
  • Music Play: Up to 55 h

Misc:

  • Colors: Black, Cyan, Magenta, White
  • SAR: 1.27 W/kg (head)     1.08 W/kg (body)
  • SAR EU: 0.94 W/kg (head)
