Perfect Cooker RC301M Disassembly
Background and Identification

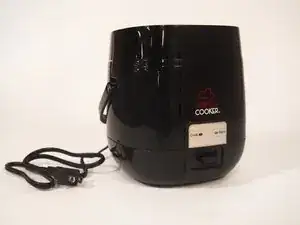

The Perfect Cocker RC301M, released in 2016, is a compact rice cooker for making small portions of rice for one or two people. With the built-in handle, this rice cooker is portable and ideal for travel. The two side tabs that lock the chamber ensure that the device locks tightly for safety and faster cooking. The four rubber feet on the device bottom help ensure that it does not slide on countertops or tables. There is also a steam valve located on the lid.

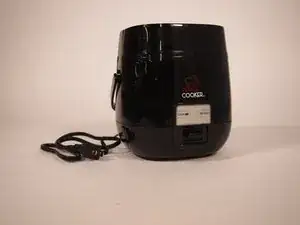

The device comes in three different colors: black, red, or white. This device can cook and warm up to 3 cups of rice at one time. It has dimensions of 7 x 7 x 7.25inches. There is another model that is bigger and can cook up to 5 cups, the Perfect Cooker RC501M. The model number and other specifications can be found on a sticker on the back of the Perfect Cooker. The Perfect Cooker logo can be located on the front side of the device.
Technical Specifications
Body
- Dimensions: 7 x 7 x 5 ⅞ inches
- Weight: 1lb 7.8 oz
- Power Rating: 120V, 60HZ, 200W
- Operating Temperatures °F: Cook 212-217 | Warm 140-176
- Handle
- Lid locks
Pot
- Dimensions: diameter: 4.5 inches
- Weight: 3.6 oz
- Non-stick
Lid
- Dimensions: 5 ¾ x 5 ¾ x 1 ½ inches
- Weight: 5 oz
- Removable inner lid
Contents
- Pot
- Measuring Cup
- AC Cord: 1 meter
Source: Perfect Cooker Manual
