Ridgid Table Saw R4021 (2017)

Reparaturanleitungen

Saw Blade

The Ridgid Table Saw version R4021 is a table saw upgraded from previous table saw versions from Ridgid. The Ridgid R4021 is portable for use in different work areas, as well as at home. Standing at 10.5 inches high, it is 23 inches by 19.75 inches and weighs 27 lbs. The R4021 uses a 7-inch diamond blade and is powered with a 6.5 amp power cord.

The Ridgid R4021 is upgraded from the R4020 version, allowing for a table attachment to increase the workspace area. The R4021 includes an anti-splash system and a 24-inch rip cut capacity.

The saw is centered along the bevel table with a guard and splash hood. Additional removable miter and rip guides may be placed on either side of the blade. Underneath the bevel table, the saw apparatus contains storage for the power cord, a water reservoir, wrench storage, and the power switch, located in the front. The edge of the bevel table contains a track on which the rip guide may be positioned.

This product model may be purchased for approximately USD$224. (May vary based on retailer, location and time of purchase.)

Users of this product noted issues such as drift of the tiles when cutting, resulting in inaccurate or jagged cuts, cuts that were not parallel, and chipping of the tiles when cutting.

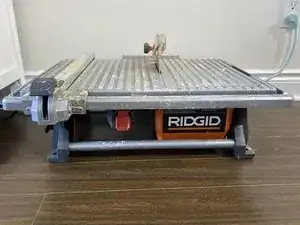

The Ridgid R4021 table saw contains a bevel table with ridges that are aligned with the blade's axis. Underneath the bevel table, the device contains four feet with metal bars along the sides for leg support and integrity as well as for the addition of a stand underneath. The legs are grey and underneath the saw blade, the motor housing is colored orange. One side of the device contains 2 prongs around which the power cord may be wound. There is a plate with the RIDGID logo on the side of the motor housing, which is located on the front of the saw. There is also a power switch for turning the saw on and off.

Assembled Depth (in.) - 24.50

Assembled Height (in.) - 10.5

Assembled Width (in.) - 19.00

Table Width (In.) - 21.00

Table Depth (In.) - 15.00

Table Height (In.) - 7.5

Blade Size (In.) - 7

Blade Thickness (In.) - 0.047

Blade Type: Diamond

Corded: Yes

Product Weight - 27 lbs.

Amperage - 6.5A
