Background and Identification

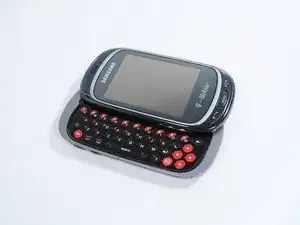

The Samsung Gravity SGH-T669, also known as the T669 Gravity T, is a 3G-capable mobile phone produced by Samsung Electronics. This model is also called the Samsung Gravity T in the United States and the Samsung Gravity Touch in Canada.

The Samsung Gravity SGH-T669 includes a QWERTY keyboard and a TFT resistive touchscreen display. The phone’s display has a resolution of 240 by 320 pixels with 256K colors. The Samsung Gravity SGH-T669 includes a phonebook with Photocall and can maintain up to 90 received, dialed, and missed calls. It is sold with 50 MB of internal memory. This model includes a dedicated microSDHC slot that can be used to expand the phone’s flash memory.

The Samsung Gravity SGH-T669 includes a 2-megapixel main camera that can also record video. It does not include a selfie camera or a 3.5mm headphone jack. This phone is sold with a 1000 mAh Lithium-Ion removable battery, meaning its battery is not attached to the inside of the phone with any kind of permanent adhesive, making repair and replacement easier than for non-removable batteries.

The Samsung Gravity SGH-T669 includes the name “Samsung” printed in capital letters across the top of the display’s top bezel. In the United States, this phone was only sold by T-Mobile, so it includes the name “T-Mobile” printed across the bottom of the display’s bottom bezel.

Technical Specifications

Release date: June 2010

Body:

  • Dimensions and Weight: 110 x 56.6 x 15 mm (4.33 x 2.23 x 0.59 in), 120 g (4.23 oz)
  • Keyboard: QWERTY
  • SIM: Mini-SIM

Display:

  • Type: TFT resistive touchscreen, 256K colors
  • Resolution: 240 x 320 pixels, 4:3 ratio

Platform:

  • CPU: 184 MHz

Memory:

  • Card slot: microSDHC (dedicated slot)
  • Phonebook: Yes, Photocall
  • Call records: 90 received, dialed, and missed calls
  • Internal: 50MB

Main Camera:

  • Single: 2 MP
  • Video: Yes

Selfie Camera:

  • No

Sound:

  • Loudspeaker: Yes
  • 3.5 mm jack: No

Communications:

  • WLAN: No
  • Bluetooth: 2.1, A2DP
  • GPS: A-GPS only; Google Maps
  • Radio: No
  • USB: MicroUSB 2.0

Features:

  • Sensors: Accelerometer
  • Messaging: SMS, MMS, Email, Push Email, IM, RSS
  • Browser: WAP 2.0/xHTML, HTML
  • Games: Yes
  • Java: Yes, MIDP 2.0
  • SNS integration
  • T-Mobile Social Buzz
  • MP3/WAV/eAAC+ player
  • MP4/H.264 player
  • Organizer
  • Document viewer
  • Voice memo/dial
  • Predictive text input

Battery:

  • Type: Removable Li-Ion 1000 mAh battery

Miscellaneous:

  • Colors: Black
