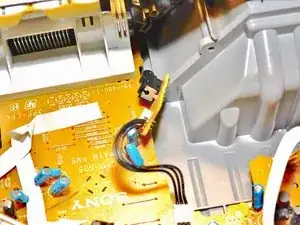

Audio in Jack
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification

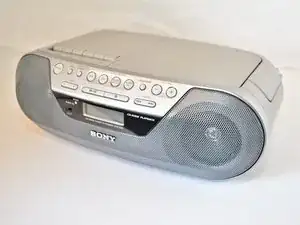

The Sony CFD-S05 CD Radio Cassette Player is a compact portable radio, released in 2010. This model allows the user to listen to cassette tapes, CDs, and the radio, while enabling user to store 10 A.M. and 20 F.M. preset radio stations.The radio also has a digital LCD screen to display the track number of the CD or cassette as well as the current radio frequency. This particular Sony radio is not only flatter, but it is also more compact than other Sony models. This new design gives users more freedom to bring the radio wherever they want to go. This model is able to play songs from your iPod or MP3 player through the radio’s speakers by using the audio-in jack. The radio also has the ability to create mix tapes using the synchronized CD/cassette dubbing feature.
Technical Specifications
General
Product Type: Boombox
Enclosure Color: Gray
Width: 14.2 in
Depth: 9.3 in
Height: 5.6 in
Weight: 5.7 lbs
Digital Player Type: CD/MP3
Audio System
Sound Output Mode: Stereo
Built-in Clock: Sleep timer
Additional Features: Bass-reflex, ID3 tags support, FM radio recording capability
Sound Effects: Digital Mega Bass
Built-in Display
Built-in Display: LCD
Speaker System
Speaker(s): Right/left channel speaker - built-in - 1.7 Watt - 3.2 Ohm
Driver Details: Right/left channel speaker : 1 x full-range driver
Radio
Type: Radio tuner - digital - AM/FM
Tuning Display: LCD display
Preset Station Qty: 30 preset stations
AM Preset Station Qty: 10 preset stations
FM Preset Station Qty: 20 preset stations
Antenna Form Factor: Built-in AM / telescopic FM
Connections
Connector Type: 1 x headphones ( mini-phone stereo 3.5 mm ) ¦ 1 x audio line-in ( mini-phone stereo 3.5 mm )
Power
Power Device: Power supply - internal
Power Consumption Operational: 14 Watt
Battery
Battery: 6 x battery - C type
Remote Control
Type: Remote control - infrared
CD System
Type: CD / MP3 player
CD-R Compatible: Yes
CD-RW Compatible: Yes
Playback Modes: Program play, random play / shuffle, all tracks repeat, one track repeat
Response Bandwidth: 20 - 20000 Hz
ID3 Tags Support: Yes
CD Track Programming: Yes (20 tracks)
CD-to-Tape Synchro Recording: Yes
Cassette System
Type: Cassette recorder
More Information
Model No.: CFDS05
Shipping Weight (in pounds): 7.25
Product in Inches (L x W x H): 16.75 x 8.25 x 12.5
