Background Information

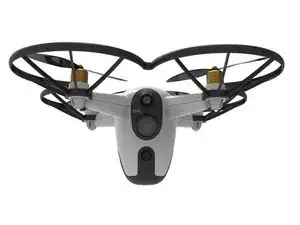

The Sunflower Lab's Bee drone is an autonomous drone-based security system used to monitor large outdoor areas. The drone is meant to be used with Sunflower Lab's Hive, which serves as the drone's charging station and processing system.

Tech Specs

Power

  • Battery Capacity: 4000 mAh
  • Recharge Time: >15 min between flights
  • Operation Time: 15 min (+5 min safety reserve)

Flight

  • Cruise Speed: 14.5 km/h (4 m/s)
  • Hover Accuracy: 30 cm

Weather Resistance

  • Wind Resistance: 20 km/h (5.6 m/s)
  • Gust Resistance: 30 km/h (8.3 m/s)
  • Operational Temp: -10°C to 40°C

Camera

  • Image Resolution: 1920x1080 Full HD
  • FOV: 50°(v), 100°(h)
  • Video Latency: ~250 ms

Sensors

  • GPS: Multi-band multi-constellation RTK
  • Camera Sensors: High sensitivity in low light 1080p sensor
  • Obstacle Avoidance Range: 6 m

Physical Dimensions

  • Length: 28 cm
  • Width: 28 cm
  • Height (w/ Prop Guards): 21 cm
  • Length (w/ Prop Guards): 48 cm
  • Width (w/ Prop Guards): 48 cm
  • Diagonal length (w/ Prop Guards): 57 cm
  • Weight: 1.56 kg
  • Propeller Size: 22.9 cm
