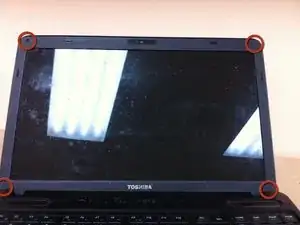

LCD Screen

LCD Screen

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

The Toshiba Satellite C655-S5212 is a 15.6-inch laptop computer produced by Toshiba as part of the Satellite line of laptops. The Toshiba Satellite (called the Dynabook Satellite in Japan) is a line of consumer notebook computers sold by Toshiba, a Japanese multinational conglomerate headquartered in Tokyo. Toshiba Satellite computers were introduced in the 1990s as some of the earliest laptops to compete with IBM’s Thinkpad line.

The Toshiba Satellite C655-S5212 model’s 15.6-inch display has a resolution of 1366 by 768 pixels. It is sold with an Intel Core i3 2310M processor with two 3.0 MB caches and an Intel HM65 Express Chipset. This model includes an integrated Intel HMA HD graphics card with a memory between 64 MB and 1696 MB. The C655-S5212 model has a maximum RAM capacity of 8 GB but is sold with only 3 GB of RAM. Users can expand the computer’s 320 GB of HDD (hard disk) memory using SD, SDHC, miniSD, and MMC cards.

Toshiba laptops can be identified by the name “Toshiba” printed in capital letters in the center of the computer’s bottom bezel. To identify the model of a Toshiba laptop, bring up the Start menu on the computer and search for “diagnostic tool.” Running the PC Diagnostic Tool gives users several options, including identifying the laptop’s make and model.

Technical Specifications

General:

  • Class: Standard Laptop
  • Operating System: Windows 7

Body:

  • Dimensions: 15.00 in x 1.60 in x 9.80 in
  • Weight: 2.40 kg (5.3 lb)
  • Color: Black

Display:

  • Size: 15.6 inches
  • Resolution: 1366x768
  • LED: Yes
  • 3D: No

Processor:

  • Name: Intel Core i3 2310M
  • Frequency: 2.1 GHz
  • Cores: 2 per processor
  • Cache: L3 Cache: 3.0 MB
  • Architecture: 64-bit
  • Technology: 32nm
  • Chipset: Intel HM65 Express
  • TDP: 35W

Graphics:

  • Type: Integrated card
  • Name: Intel GMA HD
  • Memory: 64 MB up to 1696 MB

Memory:

  • Capacity: 3 GB
  • Max Capacity: 8 GB
  • Max Capacity Per Slot: 4 GB
  • Type: DDR3
  • Slots: 2
  • Total Slots: 2

Storage:

  • Capacity: 320 GB
  • RPM: 5400 RPM
  • Type: Hard Disc (HDD)
  • Interface: SATA

Optical:

  • Type:
    • Reading support: CD DVD
    • Writing support: CD DVD

Networking:

  • LAN: 100 mbps
  • Wifi: Yes (802.11b, 802.11g, 802.11n)
  • Bluetooth: No
  • Modem: No
  • Infrared: No
  • Wimax: No
  • UWB: No

Interfaces:

  • USB: 2 Version: 2.0; Powered while off: No
  • VGA: Yes
  • LAN: RJ-45
  • ESata: No
  • FireWire: No
  • Microphone: Microphone in 3.5mm
  • Headphone: Audio out 3.5mm
  • Card Reader: SD, SDHC, miniSD, MMC
  • Multi-Purpose Drive Bay: No
  • Docking Station Port: No

Devices:

  • Pointing: Touchpad (2 Buttons, Multitouch)
  • Camera: Yes
  • Microphone: Yes

Security:

  • Features: Kensington lock, Face recognition webcam

Battery:

  • Autonomy: 6.75 Hours
  • Other: Adapter power consumption:Typical: 65 W Power adapter voltage:100 V - 240 V, 50 Hz, 60 Hz
