CMOS / BIOS Battery replacement
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Satellite C660 is a line of budget laptops released by Toshiba. Although they share the same external design, the internal components of each product are different. All the models share a 1366x768 pixel screen at a size of 15.6 inches. In addition, they have a removable battery below the display hinge and a standard 2.5-inch hard drive bay. You can give this computer a great speed boost by replacing the original hard drive with a faster SSD.

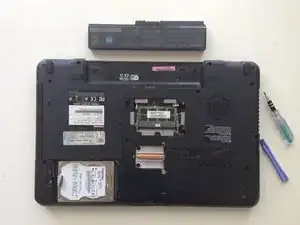

Speaking of which, both the hard drive and memory are located behind a cover on the bottom of the computer. This makes the most common repairs a lot easier, since you don’t have to fully open up the laptop. The two memory slots that are accessible in this way can support up to 8 GB total.
You can identify the specific version of the Satellite C660 that you have by looking on the bottom of the laptop for a sticker containing the model number or model name. This should be listed as “Satellite C660-xxxx“ where the final portion denotes the specific revision. All the models are made from black plastic and have the word “TOSHIBA“ written in gray on the back of the display.
Technical Specifications
Processor
- Intel Celeron, Pentium, Core 2 Duo, Core i3, or Core i5
Memory
- 2 slots
- DDR3 at 1.066 MHz
- Up to 8 GB total
Storage
- Standard 2.5-inch SATA hard drive
- DVD and CD reader
Graphics
- Intel GMA 4500M, GMA 4500MHD, or HD Graphics 3000
Display
- 15.6 inches (39.6 cm)
- 1366x768 pixels
Additional Information
Satellite C660-03C support page (with specifications available for download)
Toshiba Satellite C660 review by Engadget
