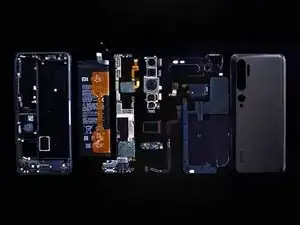

Xiaomi Mi Note 10 Teardown
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Xiaomi Mi CC9 Pro (known as the Mi Note 10 globally) Android smartphone was produced by Xiaomi, Inc. and launched in November 2019. The Mi Note 10 is part of Xiaomi’s Mi Note series. It was released in green, white, and black bodies.
The Mi Note 10 is the world’s first smartphone with a 108-megapixel primary camera. It features five main cameras (108 MP wide, 12 MP telephoto, 8 MP telephoto, 20 MP ultrawide, and 2 MP macro) and a single 32-megapixel selfie camera. It contains 128 GB of internal storage and 6 GB of RAM. The Mi Note 10 includes a non-removable 5260 mAh battery. A non-removable battery is one whose adhesive is permanent, making repair and replacement difficult. The phone also features 30-Watt fast-charging capabilities and USB power delivery. The Mi Note 10 does not support wireless charging but includes a 3.5 mm audio jack.
The Mi Note 10 includes a 6.46-inch display and an Always-on Display feature. It also features a glass front and back, as well as an aluminum frame. The Mi Note 10 also includes an optical fingerprint sensor located under the display, and accelerometer, gyro, proximity, and compass sensors.
A TechRadar review praised the Mi Note 10’s outstanding cameras, screen quality, and charging speeds, but found that the phone has a weak chipset, unreliable Bluetooth connectivity, and underwhelming battery life. The Mi Note 10 can be identified by its camera array, which includes three lenses contained in a protruding camera module and a fourth separate lense and the fifth lens flush with the glass backing. It also includes the name “Xiaomi” in lower-case letters in the lower right corner of the phone’s rear.
Technical Specifications
Models: M1910F4G
Release date: November 2019
Body:
- Dimensions and Weight: 157.8 x 74.2 x 9.7 mm (6.21 x 2.92 x 0.38 in), 208 g (7.34 oz)
- Build: Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame
- SIM: Dual SIM (Nano-SIM, dual stand-by)
Display:
- Type: AMOLED capacitive touchscreen, 16M colors
- Size: 6.47 inches, 102.8 cm2 (~87.8% screen-to-body ratio)
- Resolution: 1080 x 2340 pixels, 19.5:9 ratio (~398 ppi density)
- Protection: Corning Gorilla Glass 5
- 600 nits max brightness (advertised)
- HDR10
- Always-on display
Platform:
- OS: Android 9.0 (Pie), upgradable to Android 10, MIUI 11
- Chipset: Qualcomm SDM730 Snapdragon 730G (8 nm)
- CPU: Octa-core (2x2.2 GHz Kryo 470 Gold & 6x1.8 GHz Kryo 470 Silver)
- GPU: Adreno 618
Memory:
- Card slot: No
- Internal:128GB 6GB RAM
- UFS 2.0
Main Camera:
- Five:
- 108 MP (7P lens), f/1.7, 25mm (wide), 1/1.33", 0.8µm, PDAF, Laser AF, OIS
- 12 MP, f/2.0, 50mm (telephoto), 1/2.55", 1.4µm, Dual Pixel PDAF, 2x optical zoom
- 8 MP, f/2.0, (telephoto), 1.0µm, PDAF, OIS, 3.7x optical zoom, 5x hybrid zoom
- 20 MP, f/2.2, 13mm (ultrawide), 1/2.8", 1.0µm
- 2 MP, f/2.4, (macro)
- Features: Quad-LED dual-tone flash, HDR
- Video: 4K@30fps, 1080p@30/60/120/240fps, 720p@960fps
Selfie Camera:
- Single: 32 MP, f/2.0, 26mm (wide), 1/2.8", 0.8µm
- Features: HDR
- Video: 1080p@30fps
Sound:
- Loudspeaker: Yes
- 3.5 mm jack: Yes
- 24-bit/192kHz audio
Communications:
- WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
- Bluetooth: 5.0, A2DP, LE, aptX HD
- GPS: Yes, with A-GPS, GLONASS, GALILEO, BDS
- NFC: Yes
- Infrared port: Yes
- Radio: FM radio, recording
- USB: 2.0, Type-C 1.0 reversible connector
Features:
- Sensors: Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
Battery:
- Non-removable Li-Po 5260 mAh battery
- Charging:
- Fast charging 30W, 58% in 30 min, 100% in 65 min (advertised)
- USB Power Delivery
Miscellaneous:
- Colors: Aurora Green, Glacier White, Midnight Black
- SAR: 1.19 W/kg (head) 1.18 W/kg (body)
- SAR EU: 1.11 W/kg (head) 1.39 W/kg (body)
