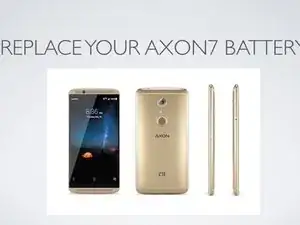

Battery

Battery

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

***

***

Troubleshooting

Find help for common issues with the ZTE Axon 7 here.

Background

The ZTE Axon 7 Android smartphone was released by ZTE, a Chinese telecommunications equipment manufacturer, in July 2016. The Axon 7 includes models A2017G, A2017U, and A2017. The Axon 7 was released in gold, grey, and silver body colors.

These models feature hybrid dual SIM card capabilities, meaning two Nano-SIM cards can be inserted into the device but only one be in use at a time while the other is in standby. The Axon 7 includes 64 GB of internal storage and 4 GB of RAM. The phone also features a 20-megapixel main camera with dual-LED flash and an 8-megapixel selfie camera. The Axon 7 includes a non-removable 3250 mAH battery (a non-removable battery is one whose adhesive is permanent, making repair and replacement difficult).

Identification

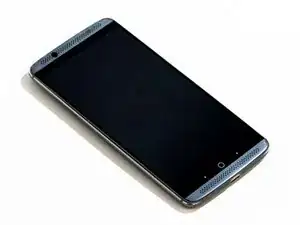

The Axon 7 smartphone includes a 5.5-inch display with a resolution of 1440 by 2560 pixels. The phone is built with a scratch-resistant glass front and an aluminum back and frame. It also features a rear-mounted fingerprint sensor that is located in the top center of the phone’s back. The device’s main camera is located directly above the fingerprint sensor. Axon 7 models include the name “Axon” below the fingerprint sensor and the manufacturer name “ZTE” in the bottom center of the phone’s rear.

Technical Specifications

Models: A2017G, A2017U, A2017

Release date: December 2014

Body:

  • Dimensions and Weight: 151.7 x 75 x 7.9 mm (5.97 x 2.95 x 0.31 in), 175 g (6.17 oz)
  • Build: Glass front (Gorilla Glass 4), aluminum back, aluminum frame
  • SIM: Hybrid Dual SIM (Nano-SIM, dual stand-by)

Display:

  • Type: AMOLED capacitive touchscreen, 16M colors
  • Size: 5.5 inches, 82.2 cm2 (~72.2% screen-to-body ratio)
  • Resolution: 1440 x 2560 pixels, 16:9 ratio (~538 ppi density)
  • Protection: Corning Gorilla Glass 4

Platform:

  • OS: Android 6.0.1 (Marshmallow), upgradable to Android 8.0 (Oreo), MiFavor 5.2
  • Chipset: Qualcomm MSM8996 Snapdragon 820 (14 nm)
  • CPU: Quad-core 1.2 GHz Cortex-A7
  • GPU: Adreno 530

Memory:

  • Card slot: microSDXC (uses shared SIM slot)
  • Internal: 64GB 4GB RAM

Main Camera:

  • Single: 20 MP, f/1.8, 1/2.6", 1.1µm, PDAF, OIS
  • Features: Dual-LED dual-tone flash, HDR, panorama
  • Video: 4K@30fps, 1080p@30/60fps, 720p@240fps

Selfie Camera:

  • Single: 8 MP, f/2.2, 1/4", 1.12µm
  • Video: 1080p@30fps

Sound:

  • Loudspeaker: Yes, with Dolby Atmos stereo speakers (2 dedicated amplifiers)
  • 3.5 mm jack: Yes
  • 32-bit/192kHz audio

Communications:

  • WLAN: Wi-Fi 802.11 b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
  • Bluetooth: 4.2, A2DP
  • GPS: Yes, with A-GPS, GLONASS/ BDS (region dependent)
  • NFC: Yes
  • Radio: No
  • USB: 3.0, Type-C 1.0 reversible connector

Features:

  • Sensors: Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass

Battery:

  • Li-Ion 3250 mAh, non-removable
  • Charging:
    • Fast charging 18W
    • Quick Charge 3.0
  • Stand-by: Up to 360 h (3G)
  • Talk Time: Up to 16 h (3G)

Miscellaneous:

  • Colors: Ion Gold, Quartz Grey, Chromium Silver
