  1. GGAwHHhQ4lGRDkqP

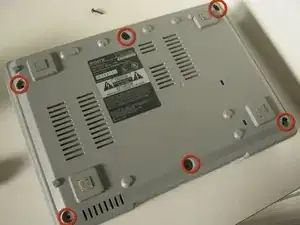

    • Flip the unit upside down to access the six screws on the bottom.

    • Remove the six screws indicated with a Phillips-head screwdriver. All the screws are of the same length.

  2. 5uTgBnxDyWsvZBFP

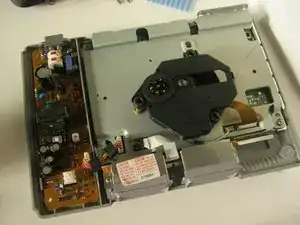

    • Turn the unit back over, and pull the top half up and away from the device.

  3. m4qoerT22Nvv1SAN

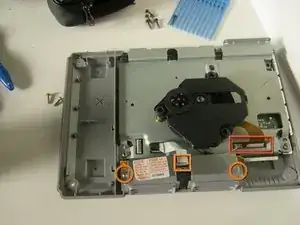

    • Unplug the laser assembly's power cable and ribbon cable from the main board.

    • Remove the two screws on the memory card/controller port, disconnect the ribbon cable, and lift it out of the case.

  4. 5iqIGWOd42iPKlIR
    5iqIGWOd42iPKlIR
    gfPFsTAmZVhDb3Fn

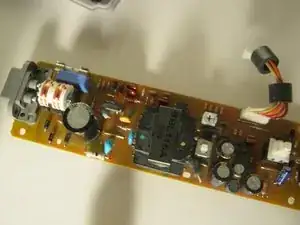

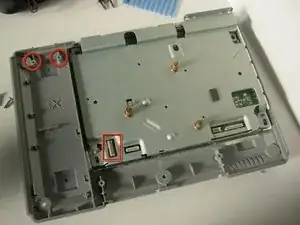

    • To remove the power supply, disconnect the cable and remove the two screws, then lift it out of the case.

  5. tuxrfmLYtNXLBBhe
    tuxrfmLYtNXLBBhe
    GCBQPILu2iAwsDF6

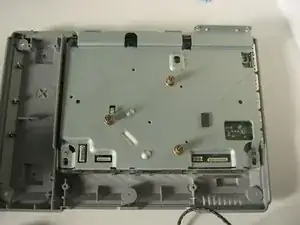

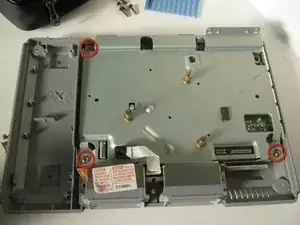

    • Remove the 3 screws from the shield.

  6. icLOYfk1vVl3HxFP
    icLOYfk1vVl3HxFP
    mmTFYZhjPIROSEFT

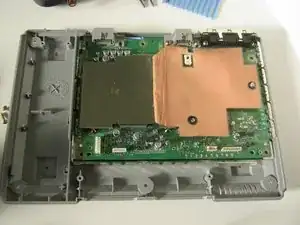

    • Remove the 5 Phillips screws.

    • You can now lift the main board out of the case.

  7. YAKoj6MVXw6XNZkR
    YAKoj6MVXw6XNZkR
    cTVLBrfylU1NZFGO
    • Lift the RF shield out of the case.

  8. hp3gaKCAXbtDTh2U
    hp3gaKCAXbtDTh2U
    oAAVG3CwlINTctIc

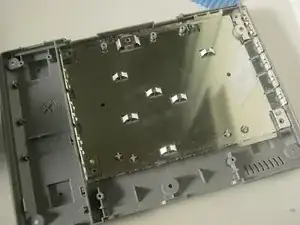

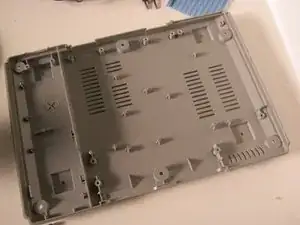

    • Reinstall the RF shield by dropping it in and lining up the slots and tabs.

  9. SxMfy1a5VTgEJOFR
    SxMfy1a5VTgEJOFR
    IbSXP5gcNRnJqNRy

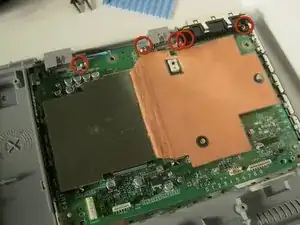

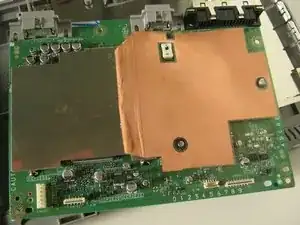

    • Replace the main board. Only install the screws indicated in red.

  10. 5FgaxBTVMLeOHpFD

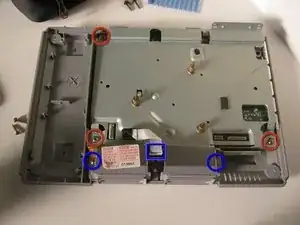

    • Replace the top shield, and secure with the 3 screws indicated.

    • Reinstall the memory card / controller module. Connect the ribbon cable and replace the 2 screws.

  11. hfcaDSCusWWgTWVI

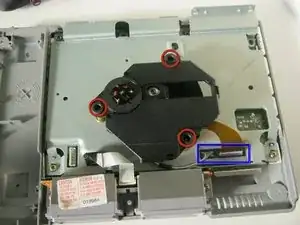

    • Align the optical drive assembly with the three pegs.

    • Reconnect the power and data cables for the optical drive.

  12. F5tyYMHt5oK6TyC5

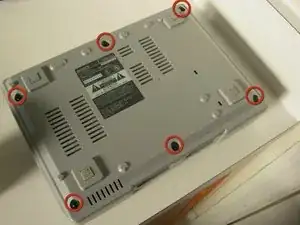

    • Slide the cover on the system in the same way you took it off and replace the black screws indicated.

  13. FRTktugBk2JhrRAk

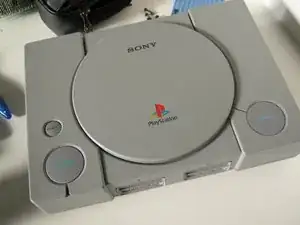

    • Plug in the console and turn it on.

    • Thanks for looking at my teardown!

Nick
