Einleitung

The PowerBank AL-200 is a mobile usb port to charge your phone when you're not at home. But what is inside it? Let’s find out!

  1. uOvoiQyMcEIYhO12
    uOvoiQyMcEIYhO12
    464vtIBmZmJIXhWp

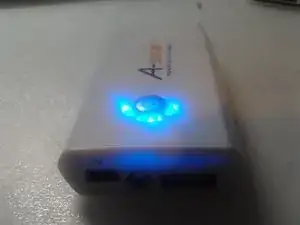

    • There are three blue LEDs to show you the power in the battery.

    • There is also a handy LED to see what you are doing in the dark.

  2. bDcrSrp1eYmS3WRY
    bDcrSrp1eYmS3WRY
    cxAdXrm1LvM5tTsc
    DyIKunS1rWaF2G4t

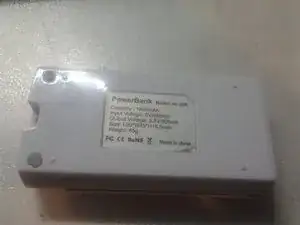

    • The bottom of the device.

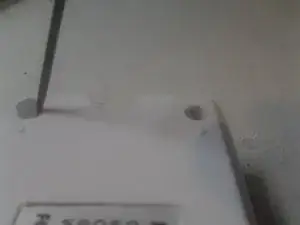

    • It's time for some prying. Take out the rubber plugs at the bottom of the device.

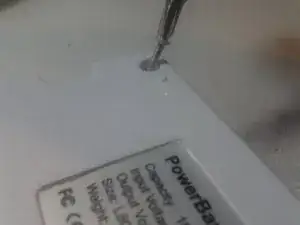

    • Remove the screws which are underneath the plugs.

  3. hpfHVhRXi3SONPGu
    hpfHVhRXi3SONPGu
    LQRGwAaZ5eFQXGox

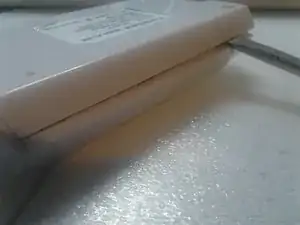

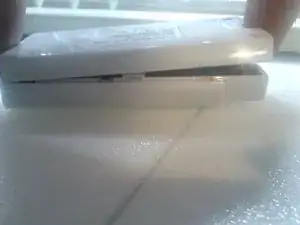

    • use a flathead screwdriver or a spudger to pry open the device.

    • Don't pry at the front of the device - there are a few hooks and you do not want to break them.

  4. h5fv1cNGKyGIJdAE

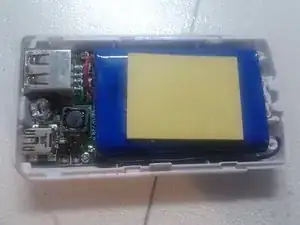

    • A first glance at the inside: a big battery and the logic board.

    • There is a 1800 mAh battery in it.

    • There are two screws in the logic board, the battery is glued to the casing.

  5. eJoBXKeYvOHVJejB
    eJoBXKeYvOHVJejB
    BMfVb22FTDmdqHFg

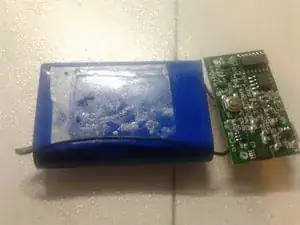

    • The other side of the electronics.

    • And the logic board.

  6. omJJf3olOlKRqgGv

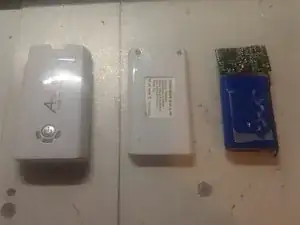

    • And there it is: the A-Solar PowerBank AL-200 torn down.

    • It was easy to do.
