Einleitung

Its pretty expensive device to mix\stream audio and as a result it is 0 information how to get inside. So I take all my brave an do it own risk as a first explorer.

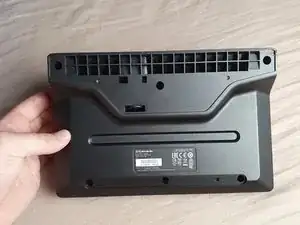

  1. UVfBrja4SZfRXpaO
    UVfBrja4SZfRXpaO
    KcQqEr2NAXqWEWOG
    • Remove rubbers (red). They are pretty dense so to not worry to damage them. Do not remove label (blue) - it have hole under, but it is not a screw hole

  2. fD6bwtWCuyRiIbQU
    • Remove 6 PH1 screws. Need to notice, that upper 3 screws are deep - so you need long thin screwdriver.

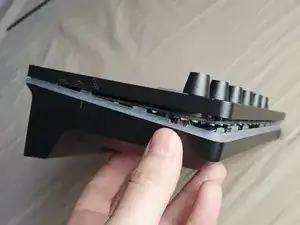

  3. fTEgYipCP2HoO5Pg
    fTEgYipCP2HoO5Pg

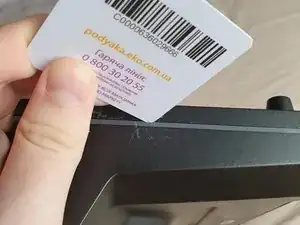

    qACmHGJNrNZmFeUB

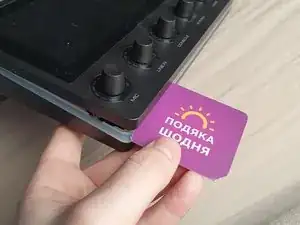

    61F1JoVFkeZOYALw
    • Unclick latches using long side of credit card. I recomend this because latches are really strong and not flexible, so this wat to do this will help to keep them alive

    • You need to do this above rgb line

    • Do both sides and bottom, after that upper side will free itself.

    • Do not pull upper half of streamer as it connected to bottom with wires

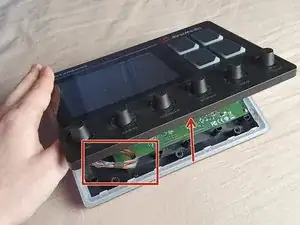

  4. SsGh3HmYhwTPExrJ
    SsGh3HmYhwTPExrJ
    LjQhsaopDLfvQkbk
    • Lift bottom side and make colorful wire visible and acceseble

    • Unplug it. This part do not have any clips, so gust push it down

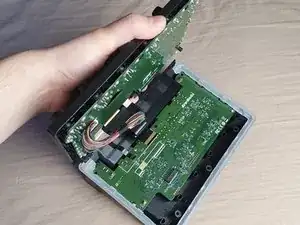

  5. iuwXNDvtfcDxTwGR
    iuwXNDvtfcDxTwGR
    CYwwBj2oycMSvGtV

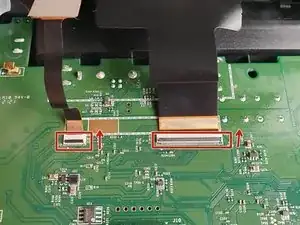

    • Flip bottom half of streamer more and make display and touchscreen plumes visible

    • Remove black isolation (if you have it) on bottom pcb

    • Lift black lockers

    • Remove plumes

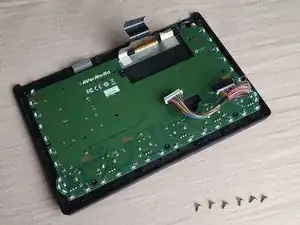

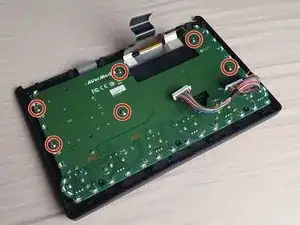

  6. ydgPqKYGpWk4LGxN
    ydgPqKYGpWk4LGxN
    NL3FsAsIKdDBQSgL
    • Remove 6 PH1 screws on top

    • Im done on this, because my goal was to check any marks on screen. I think to fully remove top pcb you need to remove bottom parts of audio spinnerы but i cannot do it
