Acer Optical Mouse Teardown

Geschrieben von: Oduelca
Veröffentlicht: 16/05/21
  • Kommentare: 4

Acer Optical Mouse Teardown

Veröffentlicht: 16/05/21

Teardown

Einleitung

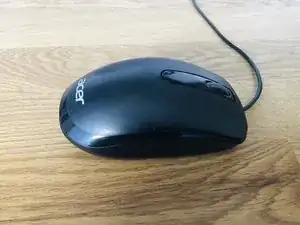

  1. YPIUoaLurYsFFqmk

    • Lay out your mouse and gather your tools.

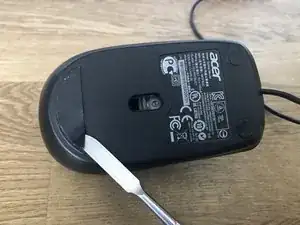

  2. WTrOkYaOKkUeJfSX

    • Use metal spudger to lift sticker

    The wireless version has two (2) more screws under the other two (2) small circular pads.

    Terry Ess -

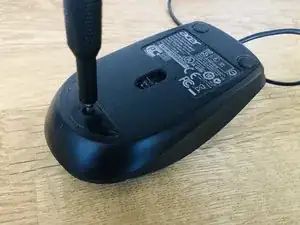

  3. JYvT5IqaAtLLwcol

    • Using a phillips #0, unscrew the screws

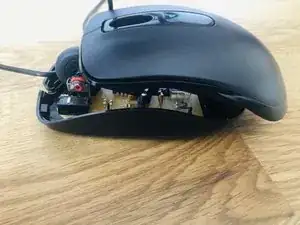

  4. QSECTTSfbDArye5x

    • Applying some force lift the mouse top up and backward at the same time to disconnect it

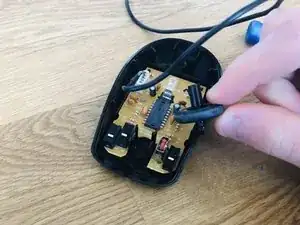

  5. QN6gT1mmYw5GOaJm

    • Once inside pull on the scroll wheel to remove it from the board

  6. nbvmt4DRYgcrB1mK

    • Pull on the cable and the board should come out

    The wireless version has yet another small Philips head screw holding the main board to the base.

    Terry Ess -

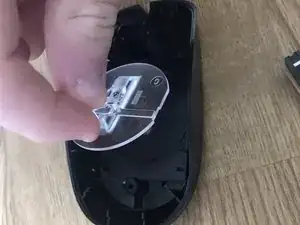

  7. MOFU5WfOGRmYMW1C

    • Then pull out the plastic at the bottom

    In the wireless version there is also a slider under the main board that engages with the battery (AA size) isolation switch.

    Terry Ess -

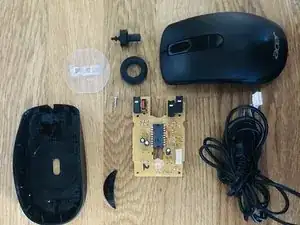

  8. WLwuRmeFLDySjhhZ

    • All done just follow guide in reverse to reassemble
