Alcatel One Touch Fierce Teardown

Geschrieben von: Jonathan Ruiz
Veröffentlicht: 04/03/14
  • Kommentare: 26

Alcatel One Touch Fierce Teardown

Veröffentlicht: 04/03/14

Teardown

Einleitung

Tearing down a water damaged Alcatel One Touch Fierce from Metro PCS.

  1. YsvudTUMpwrA3jU5
    YsvudTUMpwrA3jU5
    D2PXFeABABRaxJp6
    hcdIuAEFoporXVAV

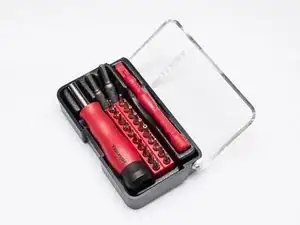

    • Phillips #000 is highly recommended. As you can see i'm too broke for the iFixIt equivalent.

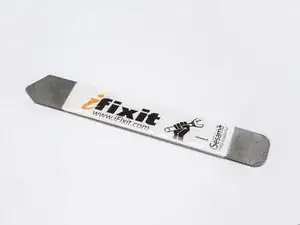

    • The iSesamo is also always handy.

    hi jon. i have a 4 day old Alcatel one touch fierce that will not power up. Can you help?

    Theo Salas -

  2. o1nnCiv5hhCoPLHL
    o1nnCiv5hhCoPLHL
    Jt5WQNxcSBM2VROD

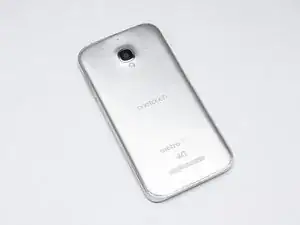

    • This is the Metro PCS variant of the phone in a nice metallic silver color.

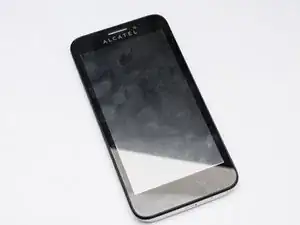

    • The front of this particular device is water damaged and finger print damaged.

    I have the back off! Where ithe speaker located

    Linda Muladore -

    I have no sound! Sometimes it crackles or I'll hear part of a ringtone but that's it!!

    Linda Muladore -

  3. JdNEGEcdf2A5fhQl
    JdNEGEcdf2A5fhQl
    ZkYJQUkLaSp66U6U

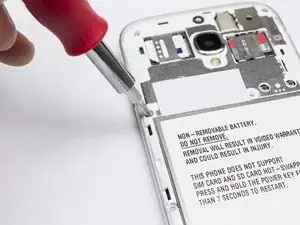

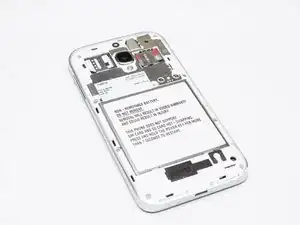

    • With the back plastic removed.

    • "DO NOT REMOVE"

    • Challenge accepted

    I'm finding the 2nd cover difficult to remove. It seems secured somewhere top center. Perhaps around the camera lens. I'm nervous to continue in fear I may break something. Any additional info for this step would be useful

    Julie Copeland -

    I feel the same way

    sanchezkk -

    under the void sticker there is an additional SCREW!

    capricciacolella -

  4. sNHVpAEBDJdGDNEU

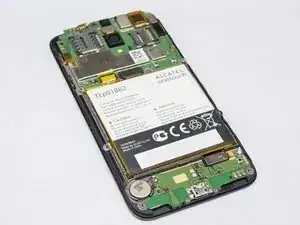

    • The second cover is removed. We now have a better look at the components.

    Where is the wifi antenna on this phone

    Giovani Aguilar -

  5. BYjWl6UwFaQ5gWXo

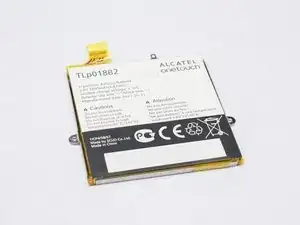

    • The battery. Doesn't last very long.

  6. AhraxgogQY25XNVG
    AhraxgogQY25XNVG
    kEbjH2JrOTqEdmsN

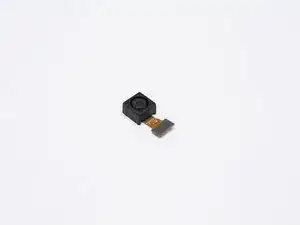

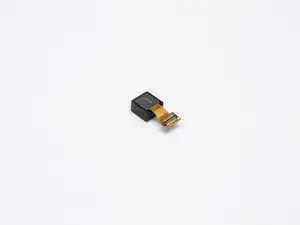

    • The 5MP camera located on the back of the phone.

  7. Etrfba66cx2MsSSZ
    Etrfba66cx2MsSSZ
    eBCjjbRPAZBAJPGZ

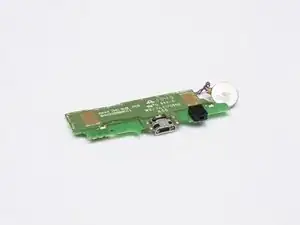

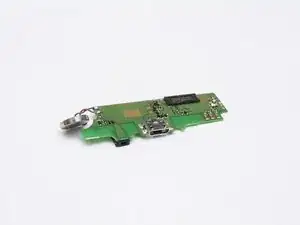

    • The daughter board contains the Micro USB port

    Were do get?

    Lembit -

  8. hx4OwoPgD6BLQgXQ
    hx4OwoPgD6BLQgXQ
    KtMFX6BQYwSPKPvC

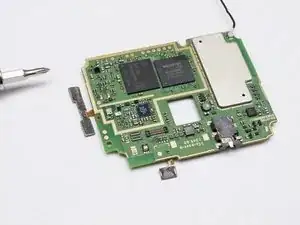

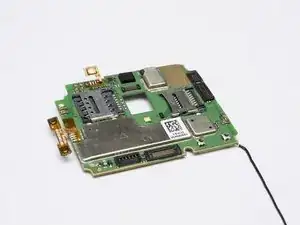

    • The main PCB

  9. PKXPpVdS6ZJ42rZn
    PKXPpVdS6ZJ42rZn
    GTPhWTNKJTKY6try
    lnKw1aJpdL416tvA

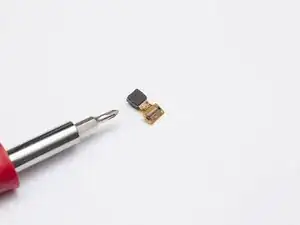

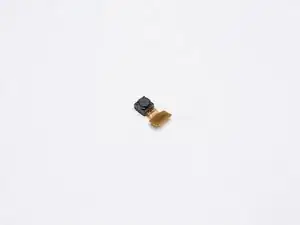

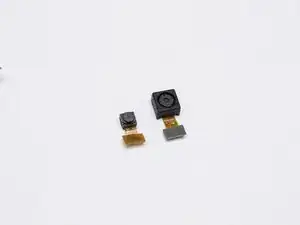

    • The VGA camera located on the front of the phone.

  10. d1AaTBDQDcfaMu6F
    d1AaTBDQDcfaMu6F
    mNUqfImQcZDCNBgn

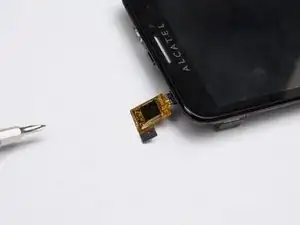

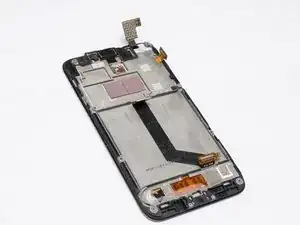

    • The remains of the front panel

  11. FOhuYrDOAGaRsE11
    FOhuYrDOAGaRsE11
    4C64uQYCTAwQlr5K

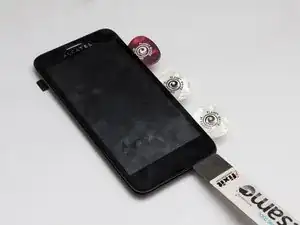

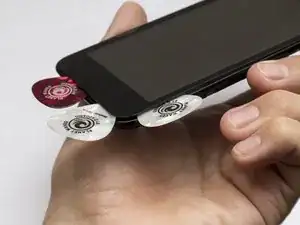

    • Trying to remove the front panel assembly.

    • It seemed to have quite a bit of adhesive.

    • Luckily i have a good amount of picks available.

    • Oh no, i think i hear cracking...

  12. PWJ3S4i41gQmRWV1
    PWJ3S4i41gQmRWV1
    gpPqFiiSiGsCCWyi

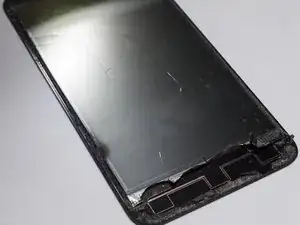

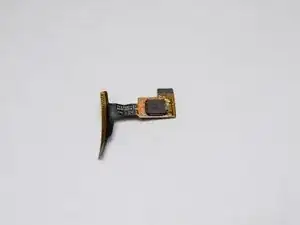

    • Crap! i totally saw this coming.

    • To avoid this use a heat gun to loosen the glue...not too much heat though.

  13. cTTVK23HQCYNTsIf
    cTTVK23HQCYNTsIf
    SowmSOLVgTEJuweK

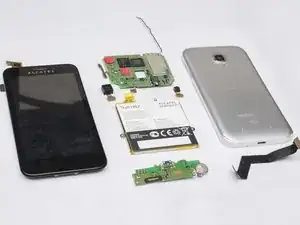

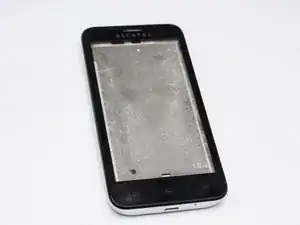

    • I now have a functional phone without an LCD screen.
