Einleitung

  1. PetmUoMfvVPhTOkJ
    • The outside of the drive.

  2. IQkbySJxFAIxxsE1

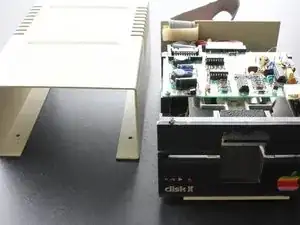

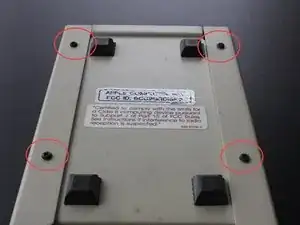

    • Flip the drive over and remove the 4 Phillips screws underneath.

  3. DwjRUWF365GHIxQF
    • Slide it towards the cable at back.

  4. NUaPDtMBnHLgPRZE

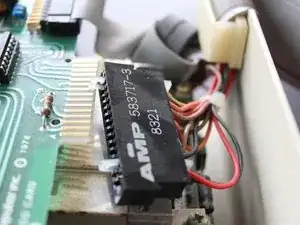

    NUaPDtMBnHLgPRZE
    2FOEUcnWOwHTIZNa

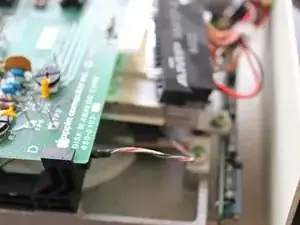

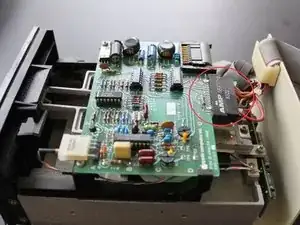

    • Pull away from the board, not up

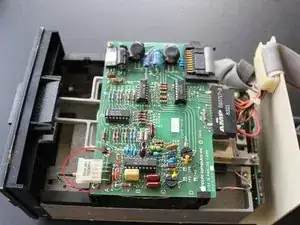

  5. GCtrGdUXXrCkKGRQ
    GCtrGdUXXrCkKGRQ

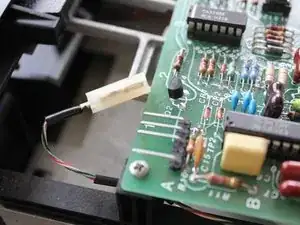

    6DyujoAAXXAavutm
    • Pull away from the board, not up

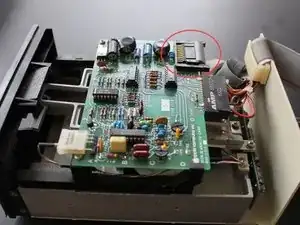

  6. eJxVAWOIaDZrXMZL
    eJxVAWOIaDZrXMZL
    2SD2yVbrBBKTXPPK
    OjXfgwJmUnSkArO6

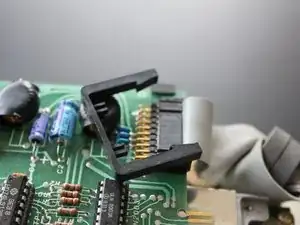

    • First. remove the C retaining clip by gently pushing the sides away from the connector with your thumbs, then pull the cable away from the board, not up

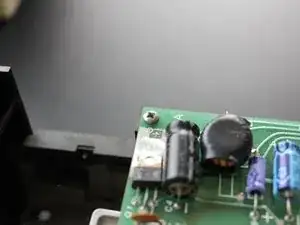

  7. nGMqQBPjnCVp5yqR
    nGMqQBPjnCVp5yqR

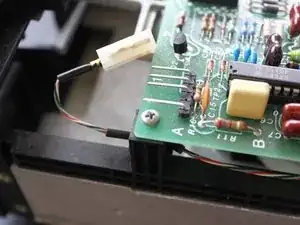

    RjaFFeRJTYABB4rZ
    THDM1EYhYUtBP6OJ
    • Remove the 2 Phillips screws

    • Next, gently remove the board from the drive, minding the cable running beneath

  8. 53PGN3bqRS2mTpCC
    53PGN3bqRS2mTpCC
    O2OPJKM1YVdtwZrh

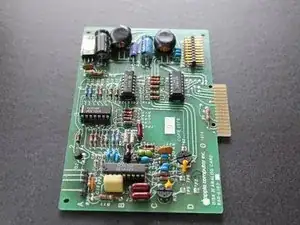

    • Insert wisdom here.

  9. xepAaaGPbuASNG3c
    xepAaaGPbuASNG3c
    jrr1C2UHVgLYYSwT
    kJZOMLdlGySfv2j2

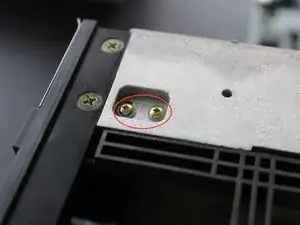

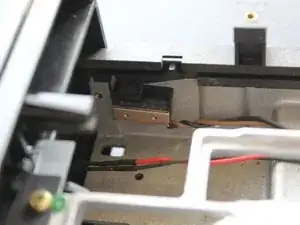

    • Remove 2 Phillips screws holding in the sensor pictured

  10. Kh4RMeMIUBjffEx1
    Kh4RMeMIUBjffEx1
    RTZJHIH5ZnaRUGRp

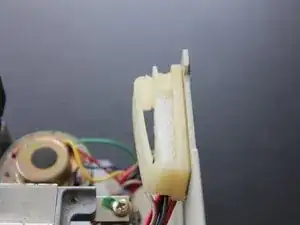

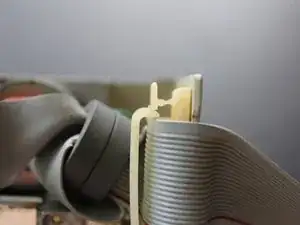

    • Remove the grey cable from its retaining clip

  11. fjqE1b4Tq2P3qcgg
    fjqE1b4Tq2P3qcgg
    bJPLAvFqiIP6BycC
    CVNX6VVtAZ3CaQq5

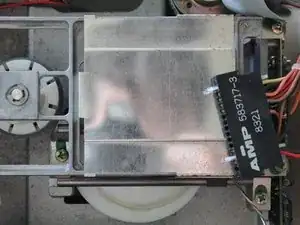

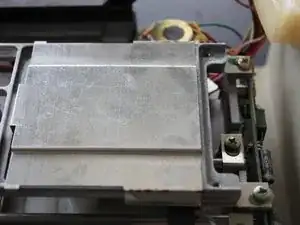

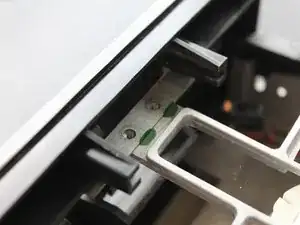

    • All screws pictured

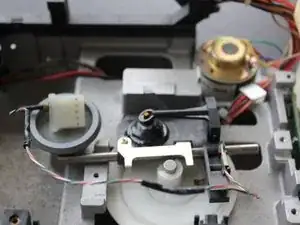

  12. Qf2CPD51SrktiIqw
    • As pictured, remove tray once screws are gone

  13. MYHgOwwvCcLV4REV

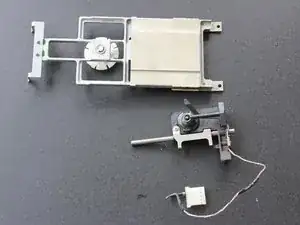

    • In addition to tray, lift out other components as pictured

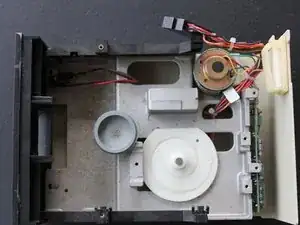

  14. vkMETfXsOPfUKLjr
    • Insert wisdom here.

  15. fK1XWPVDpyZPviMg
    fK1XWPVDpyZPviMg
    tgL3XwGEUjpuoYVb
    3EF4xv1XR3N2vOvl

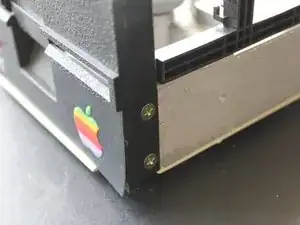

    • 8 total, from sides and bottom

  16. RwT2diQQOP3XrrOe

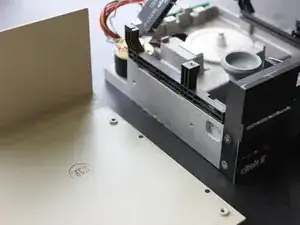

    • Insert wisdom here.

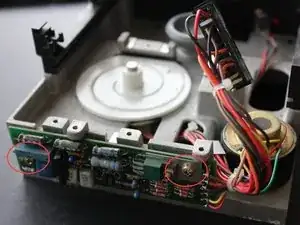

  17. GTpsQaRS5JbVP2rF
    GTpsQaRS5JbVP2rF
    db4A5ISRGATSWbLQ

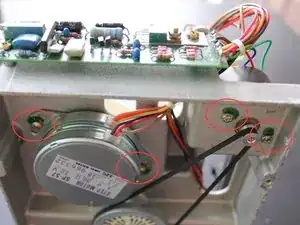

    • As pictured, then remove all freed components

  18. 42vemac1OLVlJJlh
    42vemac1OLVlJJlh
    CygUvaRFSkHAoZj2

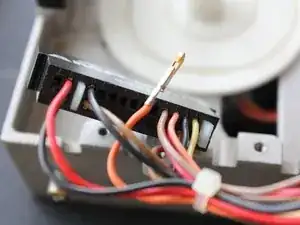

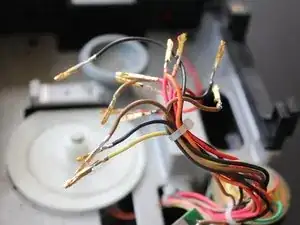

    • Disconnect cables from black connector so motor and other components can be removed from chassis

  19. 2yU1ALKoFainiXO2
    2yU1ALKoFainiXO2
    e3eHmnTDW5nRj2Sl

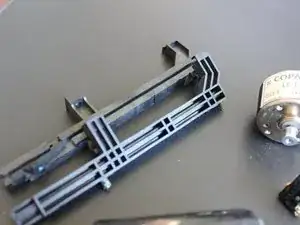

    • Remove side rails by pulling up gently. Each rail has two plastic poles that sit in the body. In this attempt, each rail lost a pole that snapped off. Poles seemed to be glued down

  20. iIEUkoECZbPyXgVQ
    iIEUkoECZbPyXgVQ
    O6R6RysSDdadBPj4

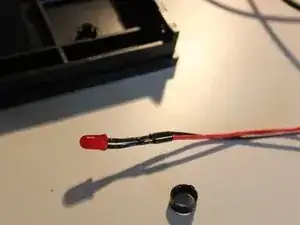

    • Because the side screws were previously removed, the black front of the drive can come off. Our drive's LED was tested and worked, but was faint. Feel free to test yours first. If working, skip the next step

    • Our LED was removed from the front case by removing the pictured ring with the help of a flathead screwdriver. Take your time so the front of the case isn't damaged and nothing besides the ring comes off

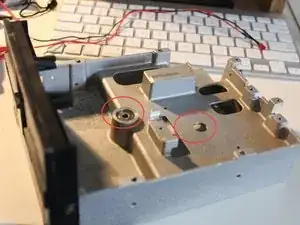

  21. wncFekD1HNGsOeaN
    • Use pliers to remove the remaining components (see previous step)

  22. 2KM4IODN16TT3mrq
    2KM4IODN16TT3mrq
    WXd5hQPvi1UGsbCZ

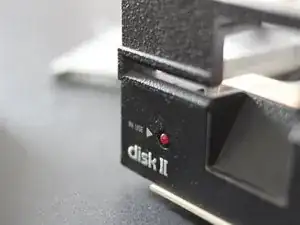

    • With the case stripped and a new LED purchased, the fun begins!

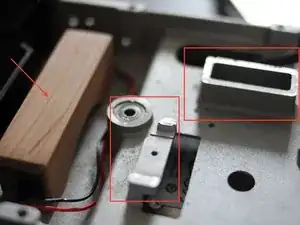

    • The only major changes to the case are outlined in rectangles. The metal chassis was milled down to match the height of the bottom of the disk entry area on the black front plate. This lined up well with our Apple SuperDrive (pulled from a MacBook Pro)

    • The wood block was added for support underneath the SuperDrive

    • The rails fit nicely around the SuperDrive when re-installed

    • A new LED was purchased and soldered to the LED connector from a 2.5" USB to SATA board, and then inserted snugly into the front of the case (may not be necessary if your LED lights up well)

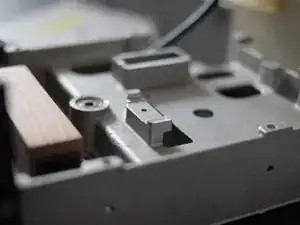

  23. jDNtHSCXBucEuCXi
    jDNtHSCXBucEuCXi
    NTmJgIMiYVTtyM4P
    acfIKICuvBbxBprT

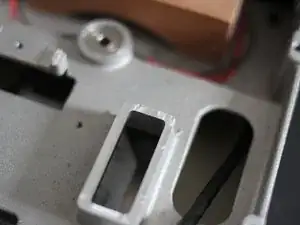

    • With LED cabled routed, and 2.5" hard drive placed in cavity underneath

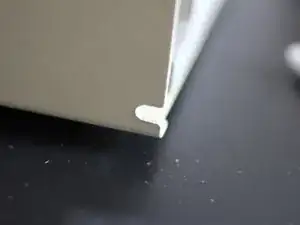

  24. dTtDPyMaQwbL1M6D
    • Dremeled into the back plate for USB cables to route through

  25. LXjJmfGqshS3tRND
    LXjJmfGqshS3tRND
    JppwAHtJYvO1VsDy
    i6AlvUly41dTZGWI

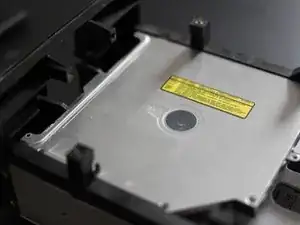

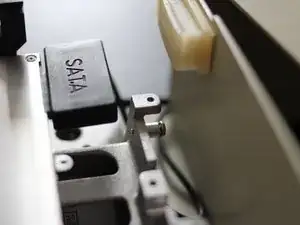

    • Picture 1: optical drive installed into body

    • Picture 2: SATA to USB cable for optical drive (plug and play on macOS. A right angle cable was purchased but a straight cable would be preferable due to the amount of space at the back, as pictured)

    • Picture 3: hole to thread SATA to USB cable through for 2.5" hard drive

  26. 3fBLwANc3orgbkef

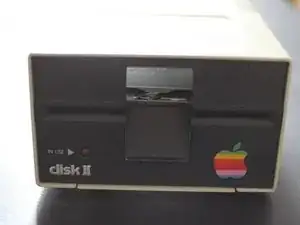

    • The original 'latch' slides out easily without the original components, so it was left out

  27. HaKOvbpODSnXdjkr
    HaKOvbpODSnXdjkr
    vfwDvIr5Ifd2ZXEg

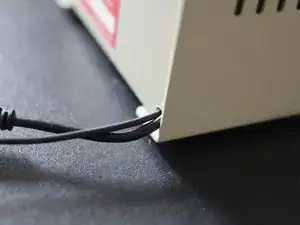

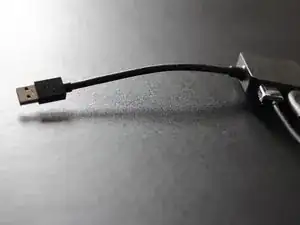

    • Run out of case to 4-port USB adaptor (possible to install inside case if a hole could be cut out)

  28. bgVhPqsdiqqgHbQE
    • Flashes on SATA data read from hard drive

  29. bLZJJtFIpEPcWsXR

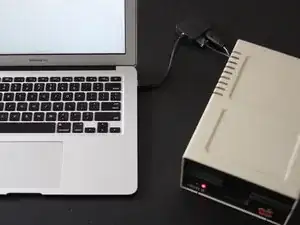

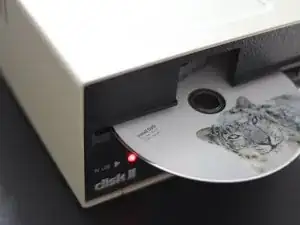

    • With the drive connected to a Mac over USB (hub is enough to power both OD and SATA drive over one cable) we can insert and eject DVDs with ease!

  30. UTJFN6JVJLFQKRKs
    • To re-assemble, replace all body Phillips screws

    • Enjoy your vintage look with up to date tech!
