This is definitely a destructive teardown. Hopefully it will help to show how the adapter was put together. Also that it does have a DAC on the adapter, not the lightning connector on the idevice.
Werkzeuge
-
-
Typical Apple product packaging. Simple yet elegant
-
Backside of the package
-

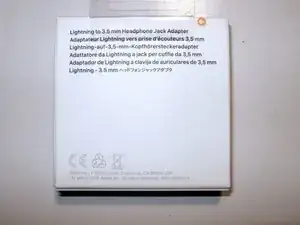

Bottom of the package describes the adapter as a A1749
-
-
-

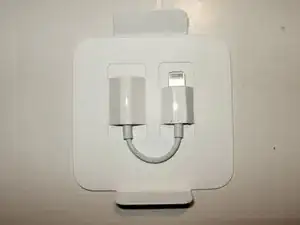

Again, nice packaging for the adapter.
-

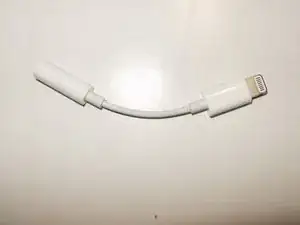

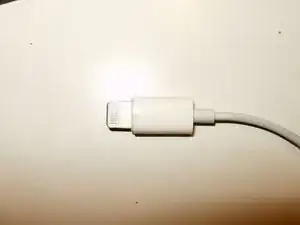

The total length of the adapter is 3 1/8 inches or 8cm. One side with the lightning connector and the other end is the 3.5mm headphone jack.
-
Checked to see if there was any way to remove the outside of the adapter by slipping some thin tools in between. No way on that.
-
-
-
This is the business end that requires the removal of the covering.
-

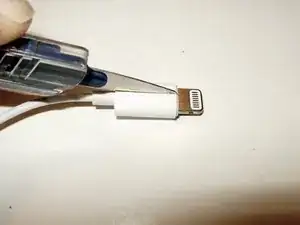

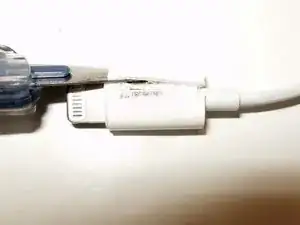

The only way to do that is by cutting into it. Using a good scalpel does cut it with relative ease.
-
-
-

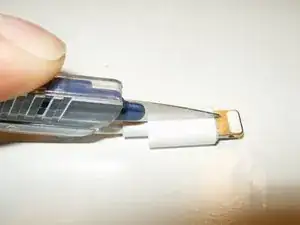

Cutting length wise on one side
-

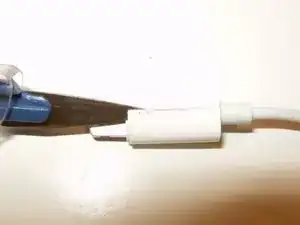

as well as the opposite site
-

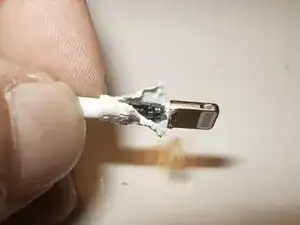

Then flipping the two halves that were created by the cuts.
-
-
-

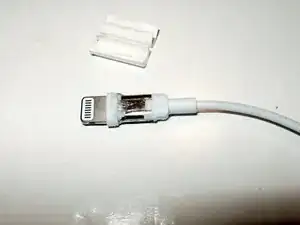

This makes for an easy removal.
-
The next thing to be removed is the ground shield.
-

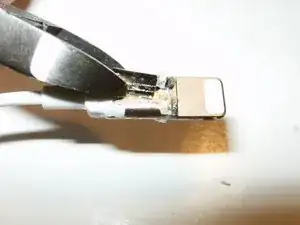

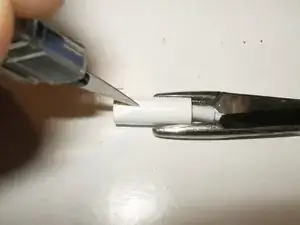

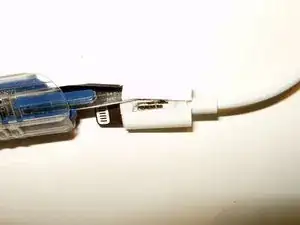

Using a pair of small side cutters that shield is easily removed as well.
-
-
-

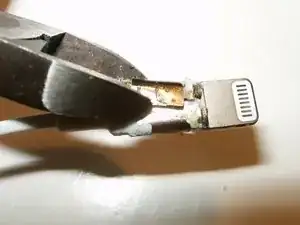

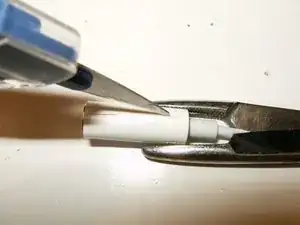

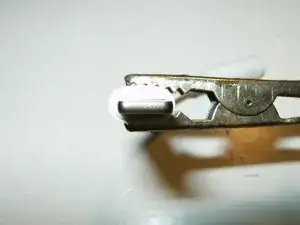

Just a matter of using the cutters on one end
-

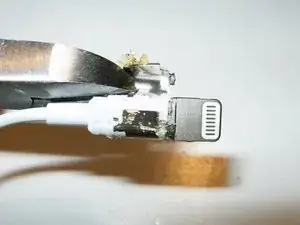

and rolling it around the connector.
-

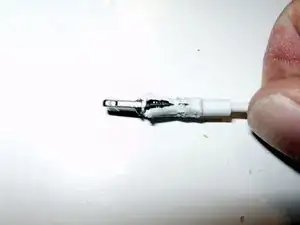

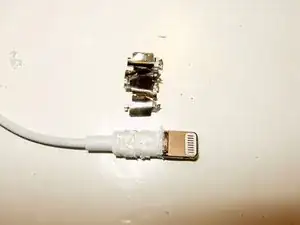

This shows the destructive nature of this teardown
-
-
-

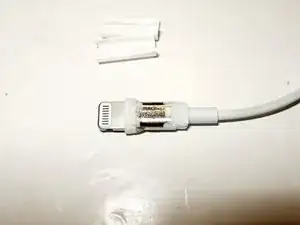

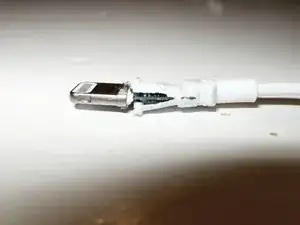

The connector is now left with another plastic covering.
-
Luckily the removal of the ground shield seems to have open slots lengthwise in the plastic covering.
-
Using these slots, the plastic needs to be carefully pulled away from the circuit board.
-
-
-

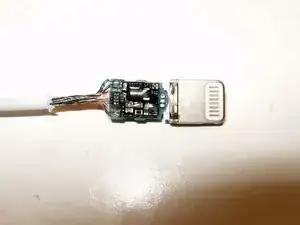

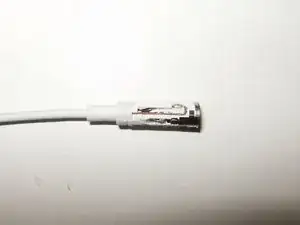

Here is the business end with the cover removed.
-

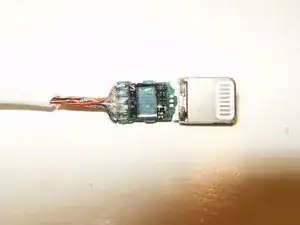

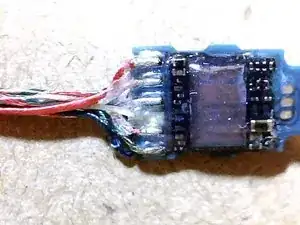

This side shows what appears to be the DAC inside this adapter
-

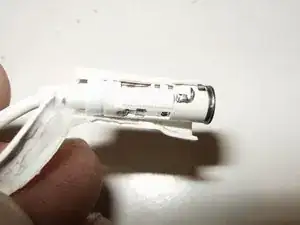

Close-up of the circuit board shows Apple's fascination with adhesive and other sticky substances. Both sides of the circuit board are covered with it.
-
-
-
A bit more of a close up of one side
-

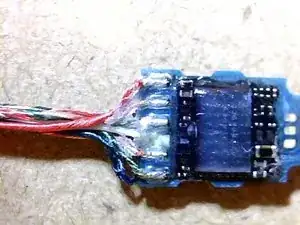

as well as the other. As more information becomes available about the DAC this teardown will be edited to reflect those.
-

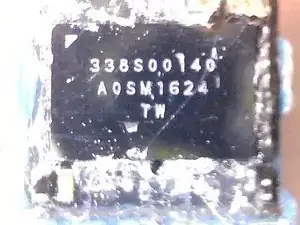

Here are the markings on the DAC 338S00140 A0SM1624 TW
-
-
-

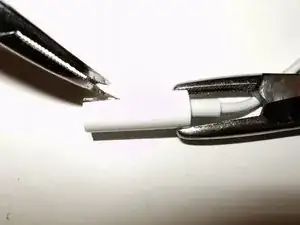

Carefully slice down the headphone jack connector with a sharp knife, being careful to not cut yourself.
-
-
-
Repairability score: 0 out of 10
-
The device is clearly not meant to be opened or repaired in any way.
-
It is impossible to open the adapter without destroying it.
-
