Einleitung

Here you will see a breakdown of the Apple Studio Display M2454. This will be useful in repairing broken or malfunctioning parts in the future.

  1. ifmptcrGdnTuXHmX

    • Notice that the main components of the monitor are only accessible from the back of the device.

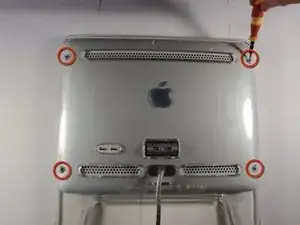

  2. WMjl5eHhiktPQXvv

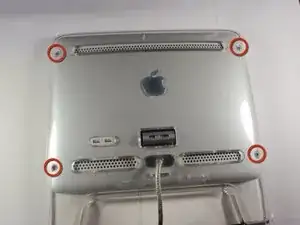

    • Locate the four hex head screws located on the corners of the back panel.

    • Remove the screws with a 2mm hex screwdriver.

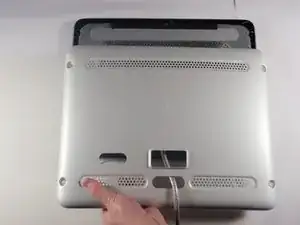

  3. 5ARQBmiiJTroCYgI

    • Remove the clear and gray back panels.

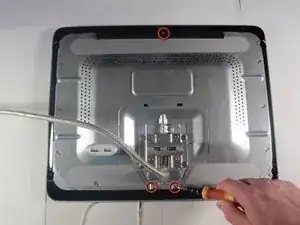

  4. 5pvOaRjRCnPBVaWO

    • Remove the three screws with #2 phillips head screwdriver.

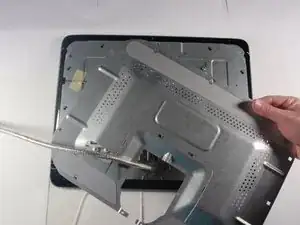

  5. L6m34vJpe4NKwOp1

    • To remove the metal panel, push towards the bottom of the monitor to release its clips and pull the panel away.

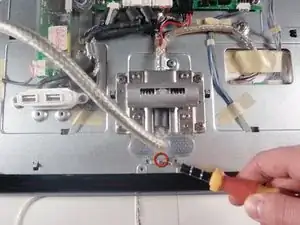

  6. cwaQfbVopMMHv4Wg

    • Remove screw holding the plastic bracket with #2 Phillips head screwdriver.

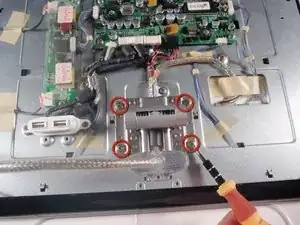

  7. uMTxrxRWc24ofZRJ

    • Remove the four screws on the metal bracket.

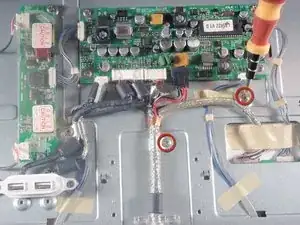

  8. lIkWJmHJ6sSXDOA2

    • Remove the two philips head hold-down screws with the #2 Phillips head screwdriver.

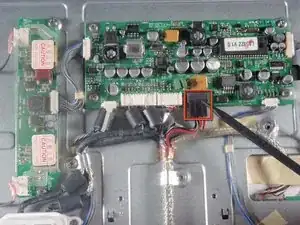

  9. Z6qCUGSrLHppnWJX

    • Remove black connector by pushing the end of the tab closest to the wiring and pulling away from board.

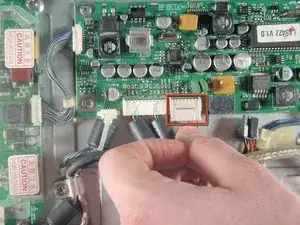

  10. lLanUpZKNBIl6dpj

    • Remove white connector by lifting tab and pulling away from board.

    • Be careful when lifting tabs, they break easily.

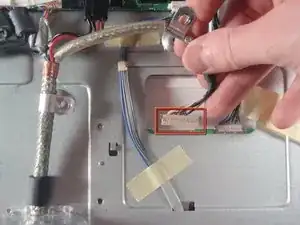

  11. YMNmaKTEYZIclkAr

    • Remove connector connected to the hold down previously removed simply by pulling with hand.

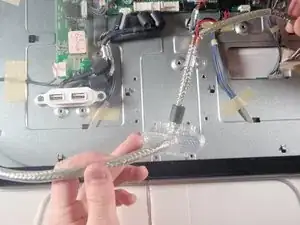

  12. 46aW4FKLUxNTdRDI

    • Now that the main computer cable is detached, remove it away from monitor.

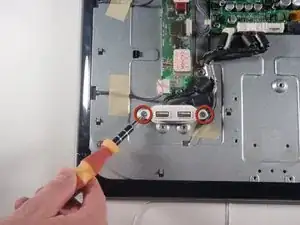

  13. gfV6yORZGQFsAAq1

    • Remove the two screws holding the USB port in place with #2 Phillip's head screwdriver.

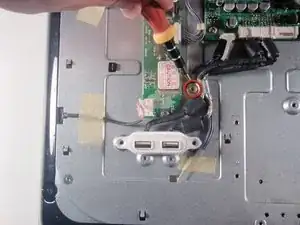

  14. IuLn6gDXhSV1uaU1

    • Remove the screw on the wire hold down with #2 Phillips head screwdriver.

  15. oVKJpJCwR6JMWpM2

    • Remove white connector connected to LCD main board by lifting tab with tool and pulling away from board.

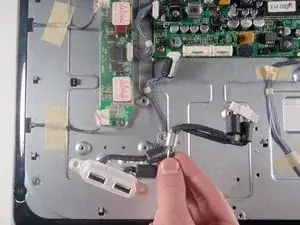

  16. JFBNYjIESgufUriP

    • The USB port is now detached, remove it from monitor.

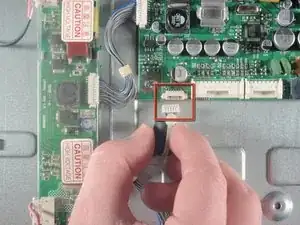

  17. YKDsbQvVETVYMFsK

    • Remove connector on the left bottom corner of the LCD main board by simply pulling with hand.

  18. CLMCZavy4L2ApPrR

    • Remove the connector on the bottom right corner by 1st removing tape first and pulling with hand.

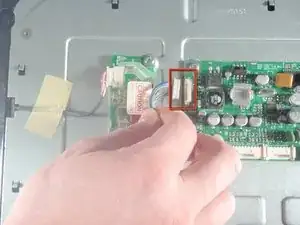

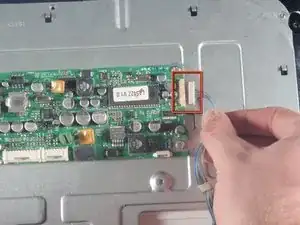

  19. ErfTNCKhMs1WNpJK

    • Remove top right connector of the LCD main board by pulling with hand.

  20. j4IuZCVuuDQsvejy

    • Remove the final connector of the LCD main board by pulling with hand.

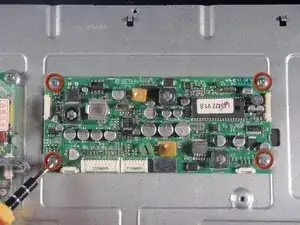

  21. 2yCKOYiYdXL2hGEg

    • Remove the four screws on each corner of the main board with #2 Phillips head screwdriver.

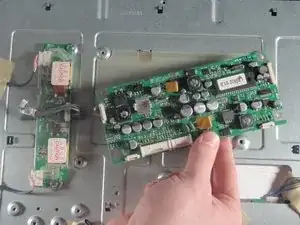

  22. BQmnPaYF6vwWsvH1

    • The board is now detached, remove it from monitor.

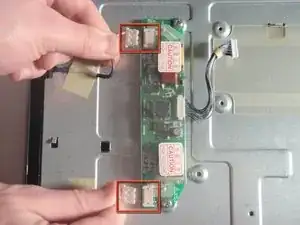

  23. R5sMi5MWJ6nKyogc

    • Locate the top and bottom connector on the CCFL inverter and remove it by inserting pin into the small holes and pulling away.

    • This step may be easier with two people.

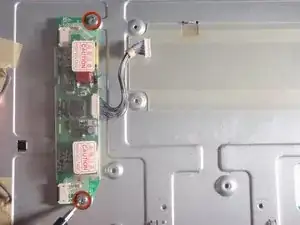

  24. oECJDBcBUYN5BRQC

    • Remove the two screws on the top and bottom of the CCFL inverter with #2 Phillips head screwdriver.

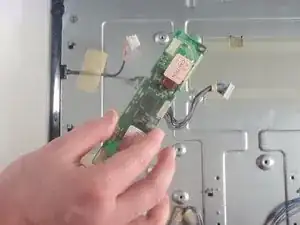

  25. iKLPfCaXVfjmifZU

    • The CCFL inverter is now detached, remove it from monitor.

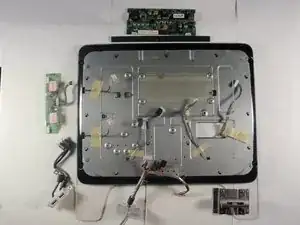

  26. wVn1RLpDP4iI6wUy

    • You have now successfully taken apart a Apple Studio Display M2454.
