Apple TV 4th Generation Teardown

Geschrieben von: Sam Goldheart
Veröffentlicht: 22/09/15
  • Kommentare: 86

Apple TV 4th Generation Teardown

Veröffentlicht: 22/09/15

Teardown

Einleitung

Apple fans are doing the happy dance, what with a slew of new devices coming out of Cupertino—including the first new Apple TV in more than three years. Our teardown engineers look pretty happy too. That's because we've got our hands on a 4th generation Apple TV. That's right, kids. It's teardown time!

Don't touch that dial—unless you're looking for more teardown news on our Facebook, Instagram, or Twitter.

  1. 3JNdsUiqcnZPPy5F
    3JNdsUiqcnZPPy5F
    xDbxXnGVHeMMiEJf
    5vqH2HQYC1TC3chu

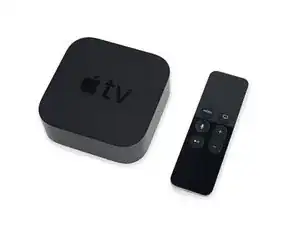

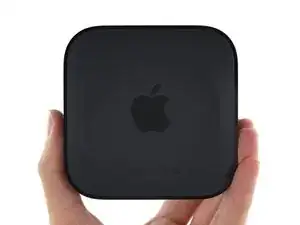

    • We like to start with some specs, and in this case a lot of the good stuff is packed into the fancypants new remote. The box itself contains:

    • Dual-core, 64-bit Apple A8 chip

    • Ethernet, 802.11a/b/g/n/ac Wi-Fi, IR receiver, and HDMI 1.4 connectivity

    • ...whilst the remote is packing:

    • Glass Touch surface

    • Dual microphones

    • Accelerometer and gyroscope

    • Bluetooth 4.0, IR transmitter, Lightning connector

  2. cE3ARkbXTaFMgRIW
    cE3ARkbXTaFMgRIW
    UIqKfsXDTnXlEDhP
    C6XIdC3u5mmC5tBZ

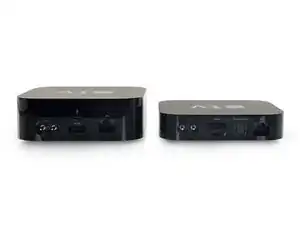

    • The Apple TV has really packed on some pounds since its last iteration.

    • It seems to have lost a port in the process—the optical audio out has gone MIA.

    • Meanwhile, the micro-USB port has morphed into a USB-C port. It doesn't bring anything new for end users, though—it's still for diagnostic and service functions only.

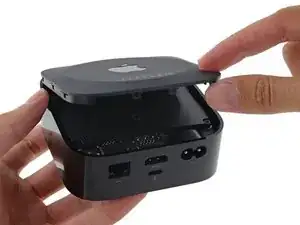

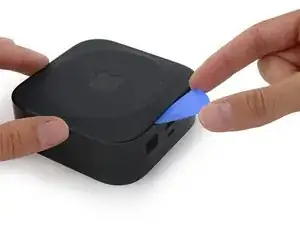

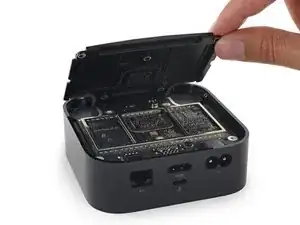

    • Our teardown engineers go to work on the Apple TV and quickly find access through the bottom of the device—similar to the 3rd generation Apple TV.

    • Only a few plastic clips stand in the way here, with no adhesive or screws in sight.

  3. UBPKcfLmdByChPqJ
    UBPKcfLmdByChPqJ
    fNF4rYNkN5TMPpWr
    Tu12LxFdUf2T2QBY

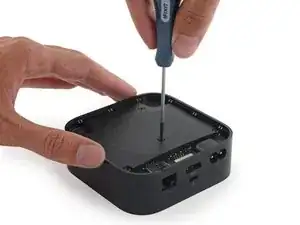

    • Under the hood, we spy a few Torx screws.

    • We take our Pro Tech Screwdriver Set out for a quick spin to release the combo heat sink/EMI shield.

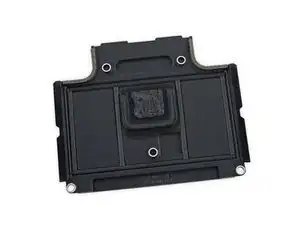

    • By the looks of it, this plate also serves as a bracket, giving the clips on the lower case something to latch onto. That's three functions in one component, folks.

  4. DKio4fJesVKSj3F6
    DKio4fJesVKSj3F6
    HBT3sOuI2q5OSFJs

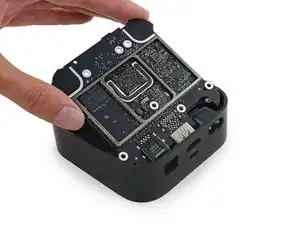

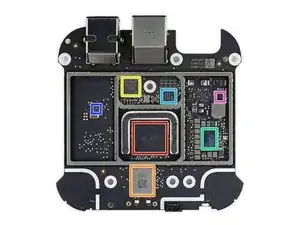

    • Here are some chips to go with your TV:

    • Apple A8 APL1011 SoC, with SK Hynix H9CKNNNBKTBRWR-NTH 2 GB LPDDR3 SDRAM

    • Universal Scientific Industrial 339S00045 Wi-Fi module

    • SMSC LAN9730 USB 2.0 to 10/100 Ethernet controller

    • Apple 338S00057 (similar part number to the 338S00055 custom memory controller found in the Retina MacBook 2015) (power management IC)

    • Kinetic Technologies (formerly MegaChips) MCDP2700A1 DisplayPort-to-HDMI converter

    • Texas Instruments TPS62130A 3 A step-down converter

    • Fairchild Semiconductor DF25AU 010D 030D MOSFET

    Is it possible the Apple 338S00057 is a power management IC? The NAND flash controller is typically integrated into the SoC, and the parts surrounding the 338S00057 look like chokes or inductors.

    Mark Reimlinger -

    I would agree with you. The caps/inductors completely surrounding that smell a lot like a PMIC.

    Ian Hartwig -

    I want to know if 16gb version also has 2G RAM

    good best -

    There is no 16GB version! 32GB and 64GB

    klave90 -

    There is only a 32GB and 64GB version of this unit. Both are very similar with the same A8 processor and 2GB of SDRAM

    dwenk -

    The DP2700A1 has a Marvell logo on it. Any guesses to what this is?

    Wendell Smith -

    Since the SMSC USB to 10/100 Ethernet has an integrated PHY, I'm guessing this is an HDMI interface IC (Either a level shifter, cable driver/ equalizer, or ESD/port protection). Maybe a Maxim part?

    Mark Reimlinger -

    It's MegaChips, not Marvell. Looks to be from their range of DisplayPort converters. Probably an eDP to HDMI 1.4 converter. Doesn't appear to be the full blown MCDP2800 DP 1.2a to HDMI 2.0 LSPCON ( http://www.megachips.us/products/documen... )

    repoman27 -

    So the 2800 definitely has 4K support, I couldn´t find any spec on DP2700A1 so we don´t know about that...Could this be an Apple specific version? It shouldn´t be too hard to buy with this with a purchase volume of 10 - 30 million...It seems that this chip has the definite answer to if 4K is possible on the hardware...

    Kalle Kula -

    Is USI-339S00045 a Wi-Fi Bluetooth combo or where are the Bluetooth LE from the remote received

    Kelwin -

    Why only 10/100 ethernet and not Gigabit ethernet? I would think anyone considering buying this would think it is easily worth the extra few cents. 4k video requires 15 - 32 Mbps depending on quality, so why not use Gigabit to give more headroom on the bandwidth?

    Insight -

    3-6 times headroom isn't enough? Seeing as though the majority of users will be streaming from the Internet, and the majority of those users don't even have 100Mbps or higher connections.

    Steve McNally -

    Where is the Bluetooth controller? My Apple TV 4th gen suddenly lost Wifi and Bluetooth connectivity. Thankfully I had an old white IR remote from an old iMac and can use it and Ethernet to stream material and still connect to the Internet.

    Trevor -

    Hi all,

    Does anyone know where I can get a replacement board? My apple TV won’t turn on, I removed the board and I have 12v flowing to the board. When I then re-insert the board, the power supply drops dramatically, assuming there is a short to earth somewhere on the board.

    Thanks

    Christian White -

  5. J1KSnO1SgyGLP6NR

    • More chips on the bottom of the logic board:

    • SK Hynix H2JTEG8VD1BMR 32 GB NAND flash memory

    • NXP Semiconductor CBTL01112 multiplexer/demultiplexer switch (likely)

    • Texas Instruments MSP430V301 16-bit microcontroller

    • Texas Instruments INA213 current sense amplifier

    • ON Semiconductor LMV331SQ3T2G single comparator

    • Texas Instruments CD3255 power monitor (likely)

    • Nexperia (formerly NXP Semiconductor) 74LVC1G157GV single 2-input multiplexer

    Looks like there is room for a second 32 GB Nand Flash.

    Detlef Duerre -

    It would be interesting to Ohm out the connection to the HDMI connector to see if it connects directly to the A8 CPU, or if it is possibly connecting to the 338S00057 chip. This would tell us if the A8 has HDMI built in, or if Apple is using a 2nd chip to create HDMI from some other signal like LVDS or Lightning serial.

    Gregory Mack -

    Looking closer, it seems obvious that the DP2700A1 chip has the HDMI traces connected to it, so this is apparently some kind of HDMI transmitter? Does anyone know who makes this chip? It has a large M on the chip, which may be a clue to the manufacturer.

    Gregory Mack -

    The big question here is if this chip has 4K capability (without current SW support from Apple)?

    Kalle Kula -

    Link to the flash datasheet is broken. I did a ton of Googling and could not find a link to the chip's detailed datasheet. Strangely, what SKHyinx calls a "databook" is just a list of part numbers with basic capacity and format specs and no other detailed information.

    Collin Ong -

    Is the little chip on the front an IR emitter?

    Cliff Barber -

    Looks like it to me, got two glass bubbles I'd expect to see

    Andrew Nixon -

  6. TrxLcrMoKEi2SEdw
    TrxLcrMoKEi2SEdw
    kLjHBPoJZvDLHNd6

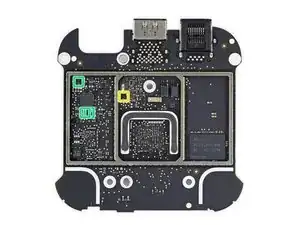

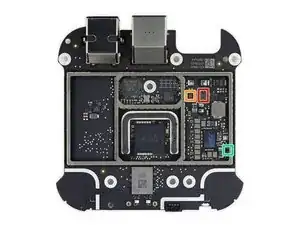

    • IC Identification, continued:

    • Renesas (formerly Intersil) ISL95870AHRUZ-T PWM DC-DC controller

    • Texas Instruments TPS715A01 80 mA / adj. LDO regulator

    • Diodes Incorporated 74LVC1G125FW5-7 non-inverting buffer/bus driver

    • Diodes Incorporated 74LVC2G07FW4-7 dual buffer gate

  7. 4hgHJXUOUNQ1U6XQ
    4hgHJXUOUNQ1U6XQ
    5Fq3davfSebDCy1w
    q15sxxl6WnZi3njH

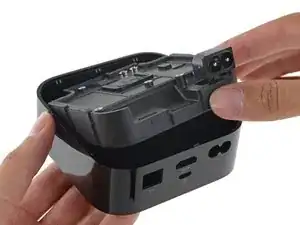

    • Last to come out of the box: a great big chunky heat sink with a cute little power supply board tucked away inside.

    • Heat rises, so this heat-generating component lives on top of the stack, with the heat-sensitive logic board beneath.

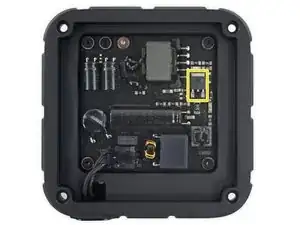

    • The redesigned power supply is rated at 12 V at 0.917 A. Compare that to the 3rd-gen Apple TV's main reactor, which pumped out 3.4 V at 1.75 A.

    • We noticed a distinct lack of cables connecting the power supply to the logic board. We're theorizing the power is either transmitted by magic, or through the heat sink screw posts.

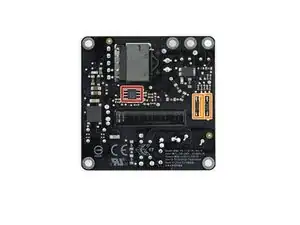

    • And as a fun bonus, some chips:

    • NXP Semiconductor TEA1738LT switch mode power supply controller

    • Toshiba TLP291 photocoupler

    • STMicroelectronics STF6N65M2 650 V N-channel MOSFET

    Heat doesn't rise. Heated fluids rise because of their decrease in density relative to cooler fluid.

    Elias Levy -

    But heated air rises...

    So on earth—unless you are in a vacuum—heat rises.

    Hobowan Kenobi -

    On the second picture showing the innards of the power supply, it looks like on the top left the bare screw delivers the power (you can see there's a PCB tracing coming off the cap to it) and the black screws are either for mounting or chassis return.

    And looking at the heat sink, some of the posts appear to make contact with the metal rings around the through holes where they would line up, indicating the heat sink's use as a ground plane.

    I have to admit, this is creative engineering.

    shokikugawa -

    Air is a fluid. Come on.

    AC -

    Yes, it looks like power goes through the silver screw at the top, and another screw that is hidden under the power supply clip? You can see on the circuit board where the screw has made physical contact.

    spinningnucleon -

    Plase expand about power supply. I need to know if it's multi-voltage. I Live in Chile, a friend is travelling to US and I want him to buy an Apple TV. Here in Chile we use 220V 60Hz.

    Edison Montes -

    Edison - if you zoom in on the 3rd photo in step 6 there's printing on the board that says "100-240V, 50-60Hz"

    It's disappointing that Apple's tech info doesn't state that, or the power consumption, but practically every electronic device now can accommodate either 120 or 240 VAC.

    techgineer -

    You say "The redesigned power supply is rated at 12V at 0.917A. Compare that to the 3rd-gen Apple TV's main reactor, which pumped out 3.4V at 1.75A."

    What you didn't say is: "The 3rd generation Apple TV consumed 5W of power, while the 4th generation consumes over twice as much at 11W."

    The way you stated it sounds like maybe you were trying to spin it.

    techgineer -

    Where can I get a replacement power supply?

    steele6599 -

    Are the power supply separated so I can connect 12 VDC to in instead Lv 230 VAC?

    Christer Dahlin -

  8. PWodpT3Cr56ImZVp
    PWodpT3Cr56ImZVp
    IUdHKTjULewIOdCD
    uwHm3v26QQpkBeDV

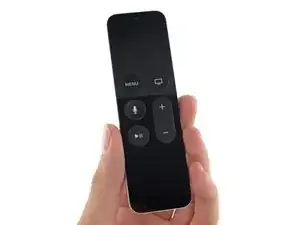

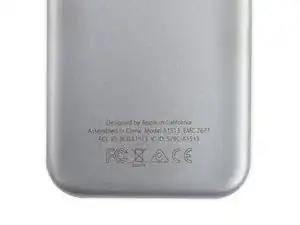

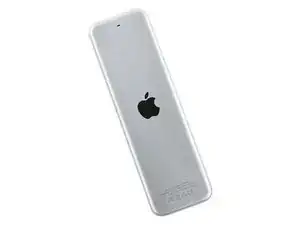

    • Behold, the new Siri Remote! Featuring dual microphones, a Glass Touch surface, and a Lightning connector, this remote is definitely a bit more complex than the Apple Remote of yesteryear.

    • Apple also packed in an accelerometer and gyroscope, which they hope you'll use to play games—and browse Airbnb.

    • With Bluetooth 4.0, the new Remote doesn't need direct line-of-sight with your TV.

    • That is, unless you want to control your actual TV. Apple points out that the remote for their new TV can also control a television or A/V receiver.

    Doesn't the ATV control the TV via HDMI? I don't think Apple uses infrared, so you shouldn't need to be in the line of sight as mentioned in the article.

    Correct me if I'm wrong.

    Cupper Chopper -

    You're wrong, partly. The remote uses infrared for volume control on the TV, Bluetooth to talk to the Apple TV and CEC via HDMI for everything else.

    Andy Norman -

    Thanks for your detailed info!

    Cupper Chopper -

    Why would they use infrared for the TV volume only? That's, like, THE most basic of all HDMI-CEC commands! Not to mention that making it a programmable IR remote adds a whole other level of complexity to initial setup. Is it conceivable that the IR transmitter has some other purpose?

    tooki -

    To adjust the volume on a connected stereo system as well. (...and it works, too.)

    Koldbern -

    ATV does control the TV via HDMI-CEC, it uses this protocol to command power, input/source selection and volume control of any CEC enabled HDTV. If you have an older TV that doesn't support the HDMI-CEC protocol the ATV remote can uses infrared to control the TV volume.

    kenneth -

  9. FFHrp4ycnEjv3ANu
    FFHrp4ycnEjv3ANu
    vEUphecS61yEHRZX
    hKXvf2sM5UkF6Ji4

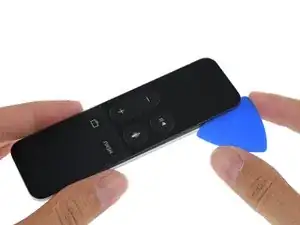

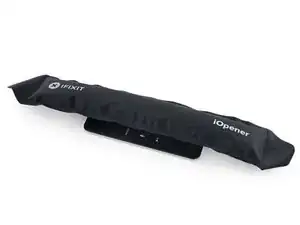

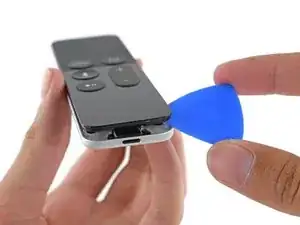

    • We found where Apple was hiding all the adhesive! Looks like our iOpener and pick don't get the day off after all.

    • The entire top end of the remote is a giant button. Beneath it lies a gap that gives us a nice, consistent groove to pick apart.

    • "Hey, Siri—say Ahhhh."

    • If only it was that easy... Actually, it was pretty easy. It seems there's a first for everything!

    Has anyone found where parts for the remote can be purchased? I need to replace the front face already.

    Charles -

    Don’t pick apart from the top end of the remote as the instructions say. There are two dogs that click in and could be sheared off/ broken if you are not careful. Pick from the bottom end near the Lightning port. (like the pictures) (the worded instructions should reflect this)

    Sean Mcfadyen -

  10. LrjH5OMonr3DnVdj
    LrjH5OMonr3DnVdj
    IDkmasaUE32dZvCk
    vZGAsPTrgrP5pIgy

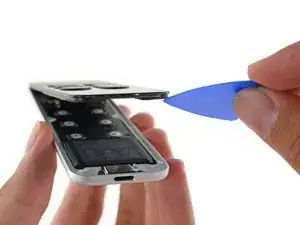

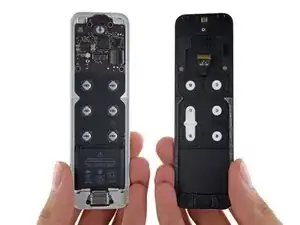

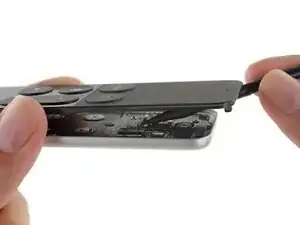

    • We're suddenly having flashbacks to the iPhone 5s. The top half is connected by a ribbon cable, hidden in the center of the device.

    • Our in-house EOD expert gets to work with a spudger and carefully disarms the trap.

    • With the top and bottom separated we notice a hidden yin yang motif. That's so zen of you, Apple.

    Ifixit did you tear down the Sub-Assembly on the right hand side of the third picture in step 9 ?

    silicon -

    Ying-yang sing? I can't see it...

    Pierre Merineau -

    How the heck do I get the ribbon cable back in? I had to take my controller apart because a button got stuck and it wouldn’t work at all. The buttons are working now but not the touch screen and I think it’s because I can’t seem to get the ribbon cable back in. Help!

    boothja -

    Would love some more details on the microphones! I’ve removed one myself (I think), but would love some detailed instructions on how to neuter Siri :)

    john -

    I managed to get the ribbon cable back in as follows: first, make sure the locking clasp is raised (Open). Next, locate a pair of thin tweezers; I used my wife’s eyebrow tweezers. Hold the upper surface so the ribbon end is lined up with the connector; note that the cable slides into the connector on the opposite side of the connector from the locking clasp. Then grasp the cable with the tweezers and force it into the connector. When it’s properly seated it will have moved about 2 millimetres in. Then, without moving anything, slide a spudger (although anything flat and broad will do, I’ve also done this once with the end of a butter knife) in and close the clasp. Finally move the two pieces apart to test that the connector has seated and locked.

    Philip Lamb -

    My kid got a couple of the top buttons sticky, and after multiple rounds of cleaning as best I could around the buttons, nothing’s working. Still sticky.

    After tearing down the remote carefully, as instructed above, are there any issues with glue missing, after putting everything back together? Did you have to replace the glue? Or is it not really necessary?

    I’m actually sending this unit off to my mom, who’s a jeweler, so she’s used to working with small stuff. Just want to have some good information on the best way to break it down, clean it, and put it back together. I’m guessing high-percentage (91%+) isopropyl alcohol is the best way?

    Thanks!

    Amarand Agasi -

    Everything works on my Siri Remote, except it stopped recognizing swiping motions on the touch pad last week. Clicking works. Since it was 10 days out of warranty AppleCare said to buy a new one for $59!

    Anyone repaired this problem before? Where can I get the part?

    Glenn Tuley -

  11. pGUCCNGHCYfVWnmW
    pGUCCNGHCYfVWnmW
    QEntYKboDQvjvSyo
    KKbNOV3R61UXH2VU

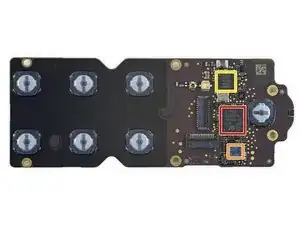

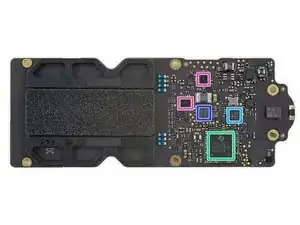

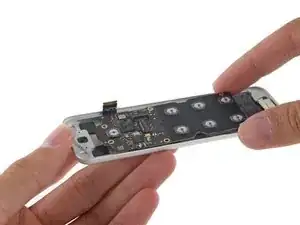

    • OICURAQT—That's what we say whenever we identify an IC, like the ones on this logic board:

    • ST Microelectronics STM32L 151QD ultra-low-power ARM Cortex-M3 MCU

    • Broadcom BCM5976C1KUB6G touch screen controller (as seen in the iPhone 5s/5c and iPad Air)

    • CSR (Qualcomm) CSR1010 Bluetooth radio

    • Texas Instruments TMS320C5545 ultra-low-power digital signal processor

    • STMicroelectronics STMLS05 5-channel PMOS load switches

    • InvenSense ITG-3600 3-axis gyroscope

    • Texas Instruments BQ24250C battery charger and TI 49C37GI

    I think the DSP link is wrong - TI think that the 320 is a C6000 series, not a C5000 series.

    It's pretty %#*@ amazing that this remote control has more CPU power that a mid-90s PC (although I'm sure it mostly runs in a deep sleep state).

    spinningnucleon -

    Ah, nope, TI are just trying to upsell me I think. A better link is http://www.ti.com/lsds/ti/processors/dsp...

    spinningnucleon -

    Only a gyro is very unlikely, where is the accelerometer? Who can find it? Seems that INVN accel+gyro is not in it

    carstenmichael97 -

    Is there an IR LED? If so, does anyone know the frequency output?

    John Cameron -

    That DSP is TMS320C5545.

    max -

  12. F4MHAPCOkf6v66A1
    F4MHAPCOkf6v66A1
    ibcjLsjGgXlgNaxW

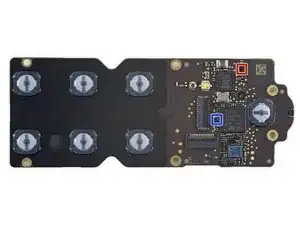

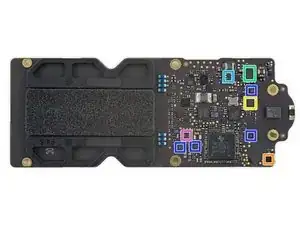

    • Chip identification, continued:

    • Analog Devices ADAU7002 audio converter

    • AKM Semiconductor AK8963 3-axis electronic compass

    • Bosch Sensortec BMA282 accelerometer

    • ON Semiconductor memory (likely)

    • Texas Instruments TPS61220 boost converter

    • ON Semiconductor NCP335FCT2G 2 A load switch

    • Diodes Incorporated 74LVC1G58FW4 Configurable Multi-function Gate

  13. FbifjgimIuh1MRoB
    FbifjgimIuh1MRoB
    erjSwKBlsqQZZHq2

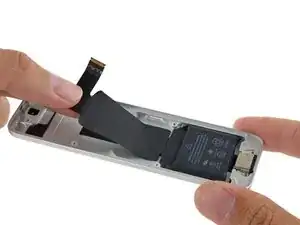

    • Look at that! A ZIF connected Lightning port cable.

    • If Apple can pack a ZIF connector into a tiny remote like this then why is the iPad Lightning port soldered to the logic board?

    • Answer: Apple proprietary secret.

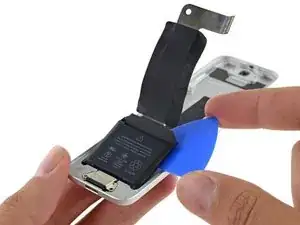

    • With just a bit of glue to pick apart, the Lightning cable/battery is out in a flash.

  14. onir3SeeictXaCVu
    onir3SeeictXaCVu
    dXjbb1DdMEMVGO5w
    CCF3FYmkYu4vcHEj

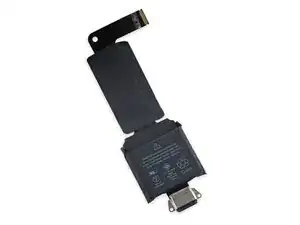

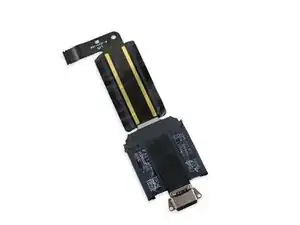

    • With the Lightning port/battery assembly free of the remote, we see that the battery is soldered to the Lightning port.

    • While we've never been a fan of soldered-on batteries, at least the Lightning port isn't soldered to the logic board!

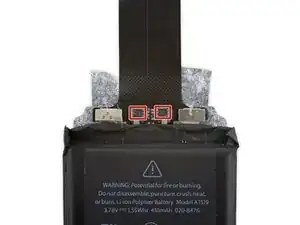

    • Because this 410 mAh battery is rechargeable, you'll never scramble to find batteries for your TV remote again. Thanks, Apple!

    • At least not until it dies and you need to replace it.

    • And hiding out at the base of the flex cable are two ABLIC, Inc battery protection chips.

    Notice how lightning port is fully connected. Not just for charging. This, I think will allow future firmware updates.

    Piotr R -

    My battery has died, just after the warranty expired. What are my chances of a replacement?

    Scott Calabrese Barton -

  15. Jev1IcEJhnOGVEvV
    Jev1IcEJhnOGVEvV
    6tGUEMgNWBx1fKs2
    L1cDZK5bot6QvZYF

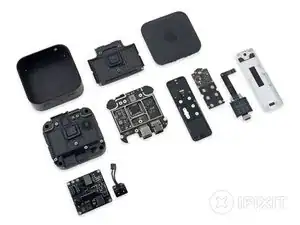

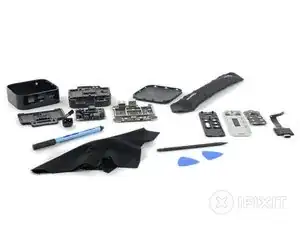

    • Apple TV (4th Generation) Repairability: 8 out of 10 (10 is easiest to repair).

    • Modular construction and only a few major components simplifies repair.

    • The power supply is a separate, replaceable component, and even its AC-in jack is modular.

    • Standard Torx screws used throughout, nothing proprietary.

    • The remote is held together with adhesive, but a wide gap makes it easy to pry apart.

    • The remote's battery and Lightning cable are soldered together—but not to anything else, so they should be an inexpensive component to replace.

    • Everything important is soldered to the logic board, meaning replacement or board-level soldering is required to solve port problems.

    • And that's a wrap. See you for an iPhone teardown down under! G'day, mate!

    Your video doesn’t show how to put the remote back together. Every time I try to click it back together the track pad no longer clicks. Please help.

    Charles Hamm -

Tinte & Feder

Sam Goldheart

Mitglied seit: 19/10/12

457712 Reputation

31 Kommentare

Going from 3.4v to 12v! I have to wonder now what that A8 SoC is clocked at!

Brian -

Geekbench shows all the Apple TV's at 1GHz apart from an outlier at 1.5GHz

http://browser.primatelabs.com/geekbench...

That suggests it's running at 1.5GHz...

name99 -

The 1.5 GHz one was recorded in 09. The heatsink is probably only there because there's a big AC-DC transformer on top of the apple tv. Odds are it's clocked in a similar fashion to the A8 in the iPad Mini 4

Kevin Connell -

Looks like a different design group worked on this. If it were Jonathan Ive's work it would have that iMac method of carving the case out of a chunk of aluminum and welding it shut with adhesive throughout.

Funny though - here's a device that is easy to get into, but one really doesn't need to whereas the iMac is something one might want to upgrade, but can't get into easily.

Terry Davis -

@name99 The 1.5 gHz geekbench benchmark is actually on an overclocked first generation Apple TV, back in 2009.

Robert Nixon -

Would it really kill Apple to give us a TV with a 4TB hard disk? Can't do very much with 32GB. At that size, it's no more practical than keeping your videos on a phone.

Chris W -

The storage isn't for movies, it's for apps.

Remember this is a streaming device, not a storage device.

Although I do agree I wish Apple offered a cheap media centre type device.

(Home Sharing from your Mac works, but does have some limitations)

scott -

It is not for the apps. They have 200 MB limit. They will be able to download more when needed.

But that's funny. I can have couple of big games on my 16 GB iPhone so why not on the 32 GB Apple TV. Do they really think that Apple TV owners want to store music or movies on the device now on the 2015?

villelaasonen -

Does anyone know if the new AppleTV can be controlled via IR like previous generations? I know it's not ideal, but this is often needed when one is tucked away in the rack of a distributed video system.

Steve McNally -

yes. the old apple TV remotes work on this one still

ralph -

Is the power supply replaceable like it is on the 3rd gen? I am wanting to replace the 110v AC with 12v DC so I can install it in my car.

Ryan Scott -

So where is the IR sensor/receiver on this? I can't quite identify it on the tear down, and I'm pretty sure I've got my IR emitter in not quite the right place.

Thanks!

Mark Pietrasanta -

Mark,

Did you get an answer on this?

I need to know the location too!!

GSM

Glen Miranker -

What is the 49C37GI? PMIC?

marksmith2016 -

Hi,

do you know where the infrared sensor is located at the Apple TV? To integrate it in my B&O setup at home I have to put a small infrared eye on the sensor to operate the whole system with the B&O remote control.

Thanks,

Bernard

Bernard -

Where is the Bluetooth IC in the Apple TV logic board?

Concerned about Bluetooth -

Hi folks just did a big mistake and tried to push the lightning plug into the usb-c socket by mistake. Now I see that few contact are bent. Is there a chance to fix them again thus I will be able to use the correct usb-c cable. Cheers Marius

Pawlowicz -

Hi, where can I buy Glass Touch surface for apple tv 4 remote control?

Alexander Volodarsky -

Can you comment on where the antennae are located?

Bob Cassidy -

it's "m8'' not "mate"

Juan Lara -

Hi, where can I buy Glass Touch for apple tv 4 remote control?

Yassin -

Same question as Yassin.. (Dropped the controller after 2 days and lots of pieces).

mfa -

Hi

I could teardown my remote to clean it (some clumsy guy put beer on it during a party), but when I try to put it back together, I can’t get the side clicks of the touch surface to work correctly. Just as if it wouldn’t be aligned, though it is :/

Someone had that issue ?

Vincent POCHOLLE -

I have my Apple remote taken apart and I cannot get the flex cable back in how do I do it?there is no instructions that actually show the way that it gets put into the logic board

Sara Murphy -

my Apple TV 4 doesn’t power on, is there a way to fix power supply ?

Siddharth Tripathi -

hi guys i have a apple tv 4k its not displaying picture any idea what could be the fault ?

daniel -

I want to buy touchpad along with tools for my apple remote as mine is broken , can you assist me to find parts?

Murad Dabash -

Is there a special application technique or type of glue to reattach the cover of the Apple remote 4gen “A1513” body?

I left my remote plugged into charge in March (covid) and returned 9 months later to find the cover separated from the body.

Jeff Dunker -

The bottom heatsink in step 7 with the power supply board will not come out. Is it glued to the bottom?

Matt Lacek -

Good morning

I have problems with logic board

Maged Hassan -

Apple TV 4 generations HD

Maged Hassan -
